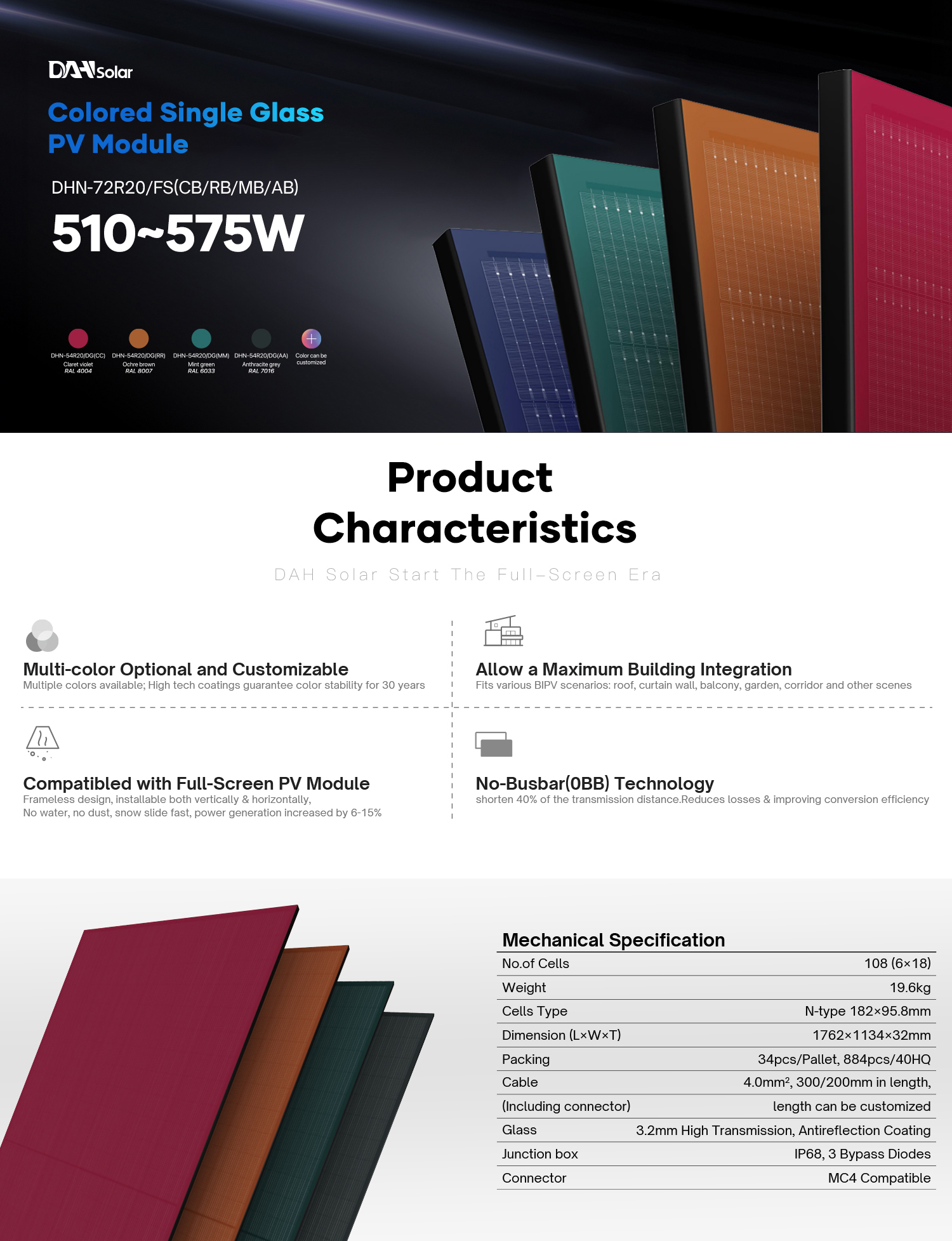

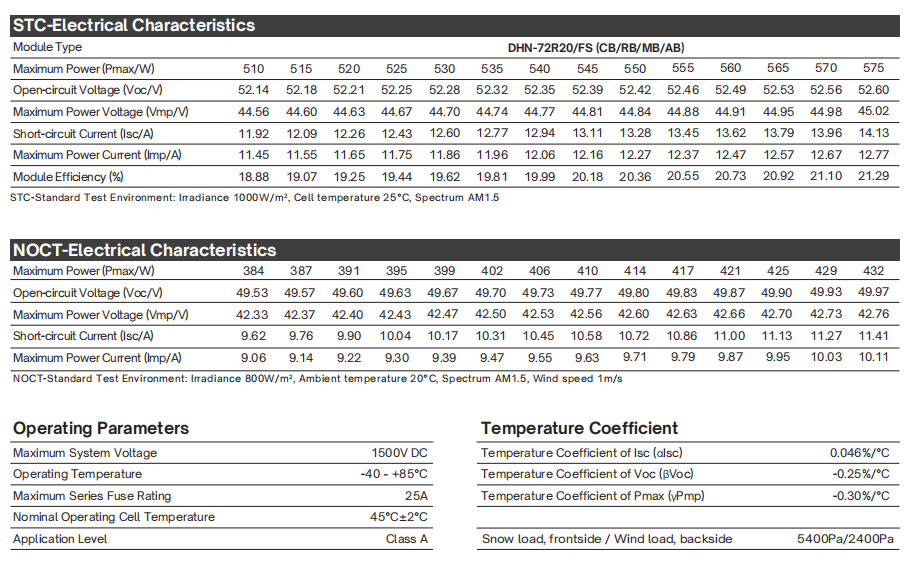

| Maximum Power (Pmax) | 510W | 520W | 530W | 540W | 550W | 560W | 570W |
| Open-circuit Voltage (Voc/V) | 52.14 | 52.21 | 52.28 | 52.35 | 52.42 | 52.49 | 52.60 |
| Maximum Power Current (Imp/A) | 11.45 | 11.65 | 11.86 | 12.06 | 12.27 | 12.47 | 12.77 |
| Solar Panel Efficiency (%) | 18.88 | 19.26 | 19.62 | 19.99 | 20.36 | 20.73 | 21.29 |

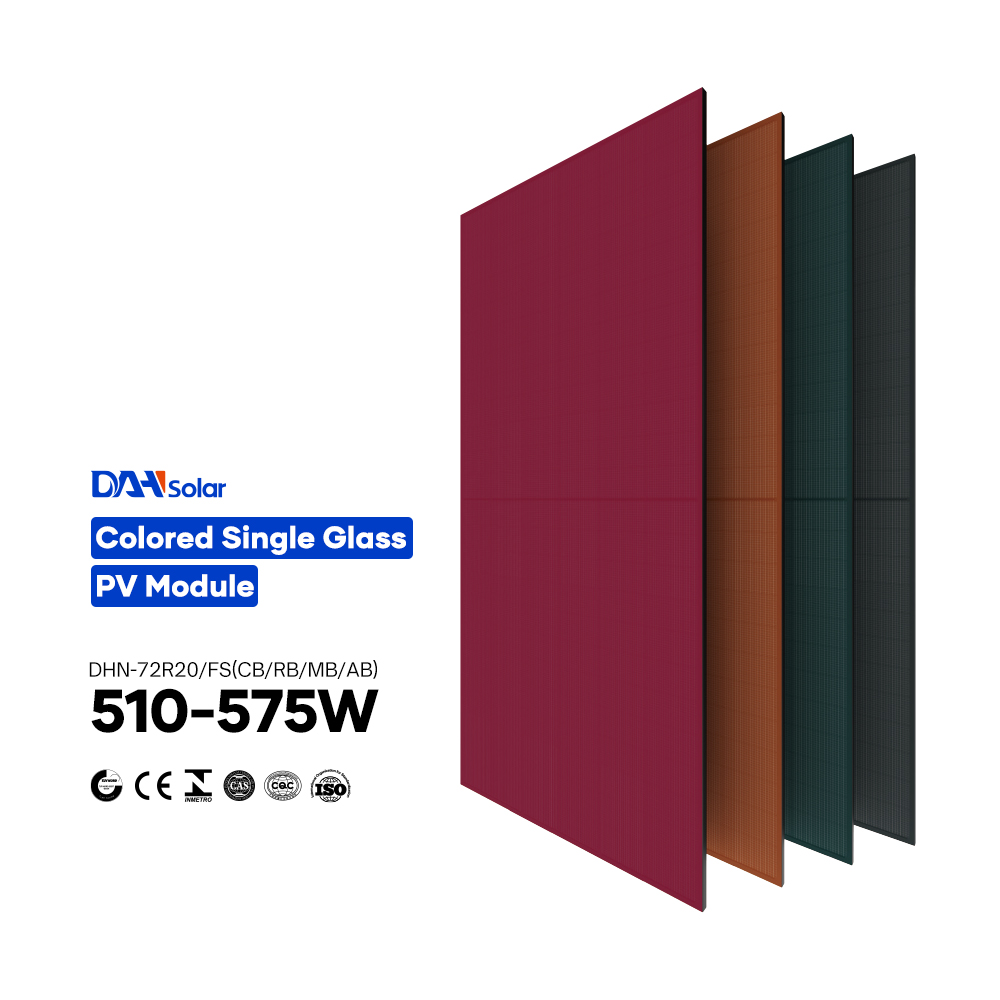

This series of solar panels offers a maximum power output ranging from 510W to 570W, allowing users to choose the optimal capacity for their specific power generation needs.
The solar panel efficiency ranges from 18.88% for the 510W model up to an impressive 21.29% for the 570W model, delivering excellent energy conversion performance.
The Open-circuit Voltage starts at 52.14V for the 510W module and scales up incrementally to 52.60V for the 570W module, ensuring consistent electrical output stability.
The Maximum Power Current (Imp) for the 550W solar panel is specified at 12.27A, balancing high current performance with safe operations.

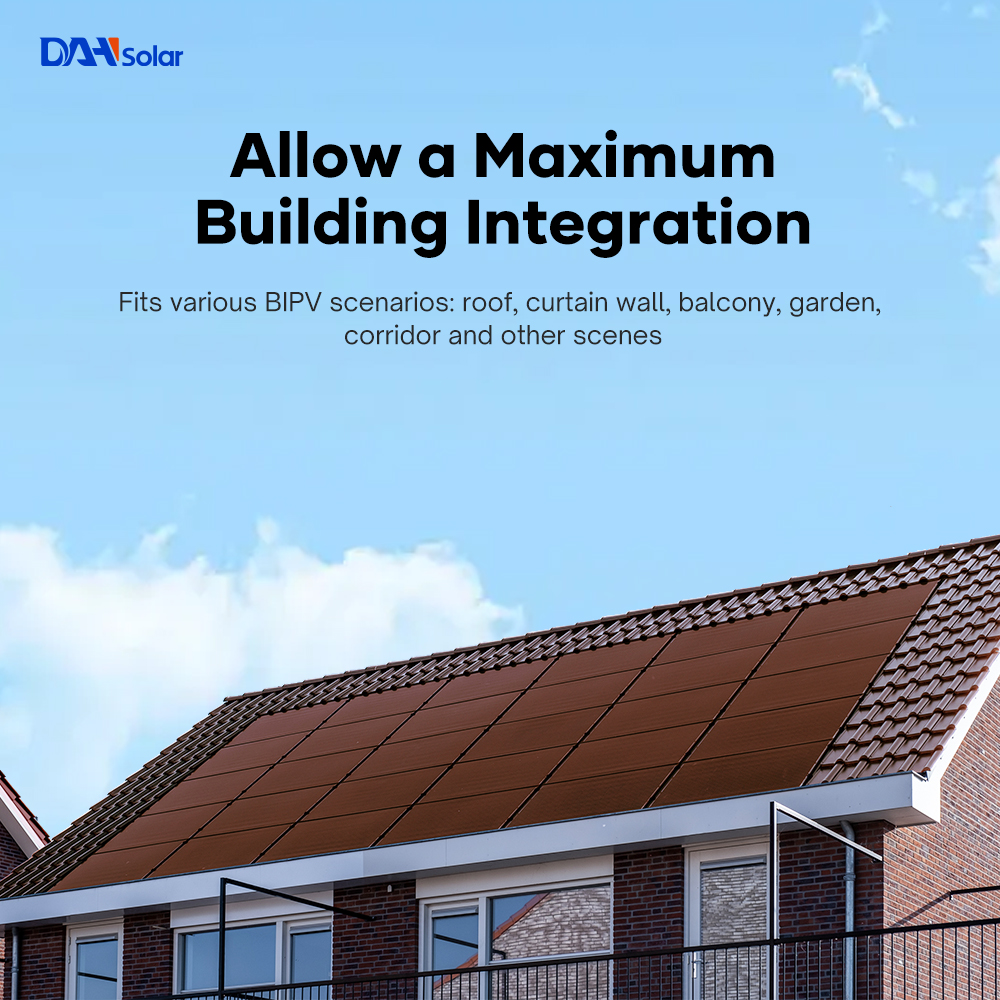

Yes, with power outputs from 510W to 570W and matching standard industrial electrical specs, these panels are ideal for seamless integration into residential, commercial, and utility-scale PV systems.
