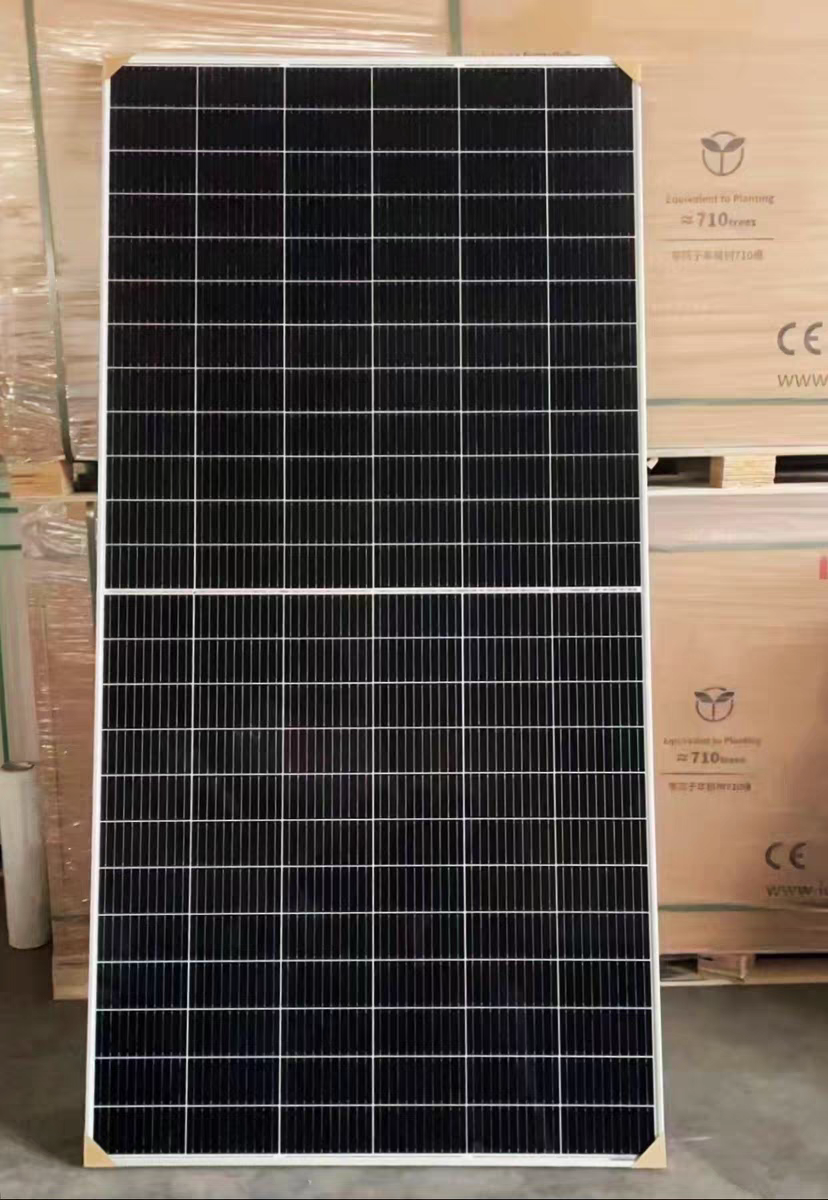

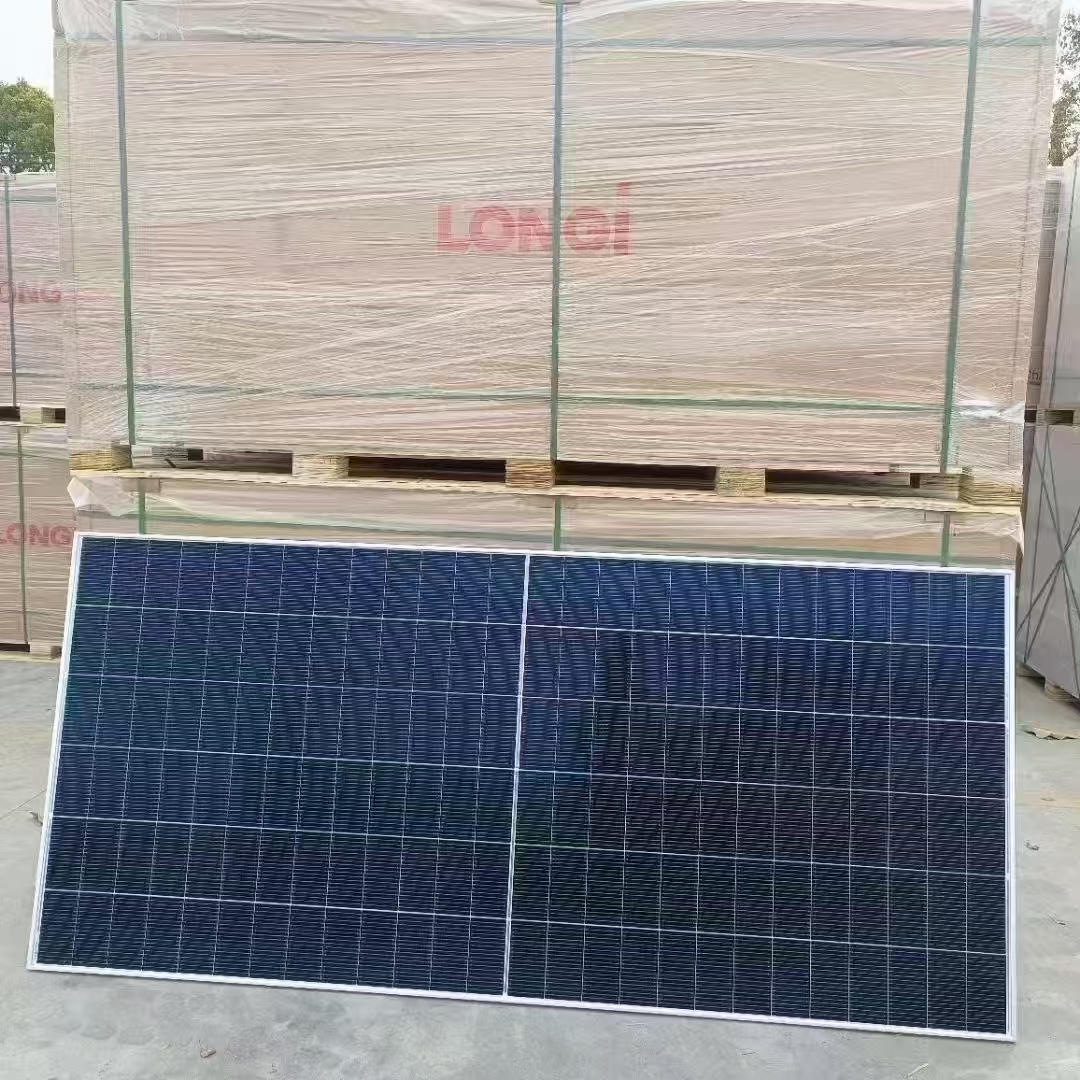

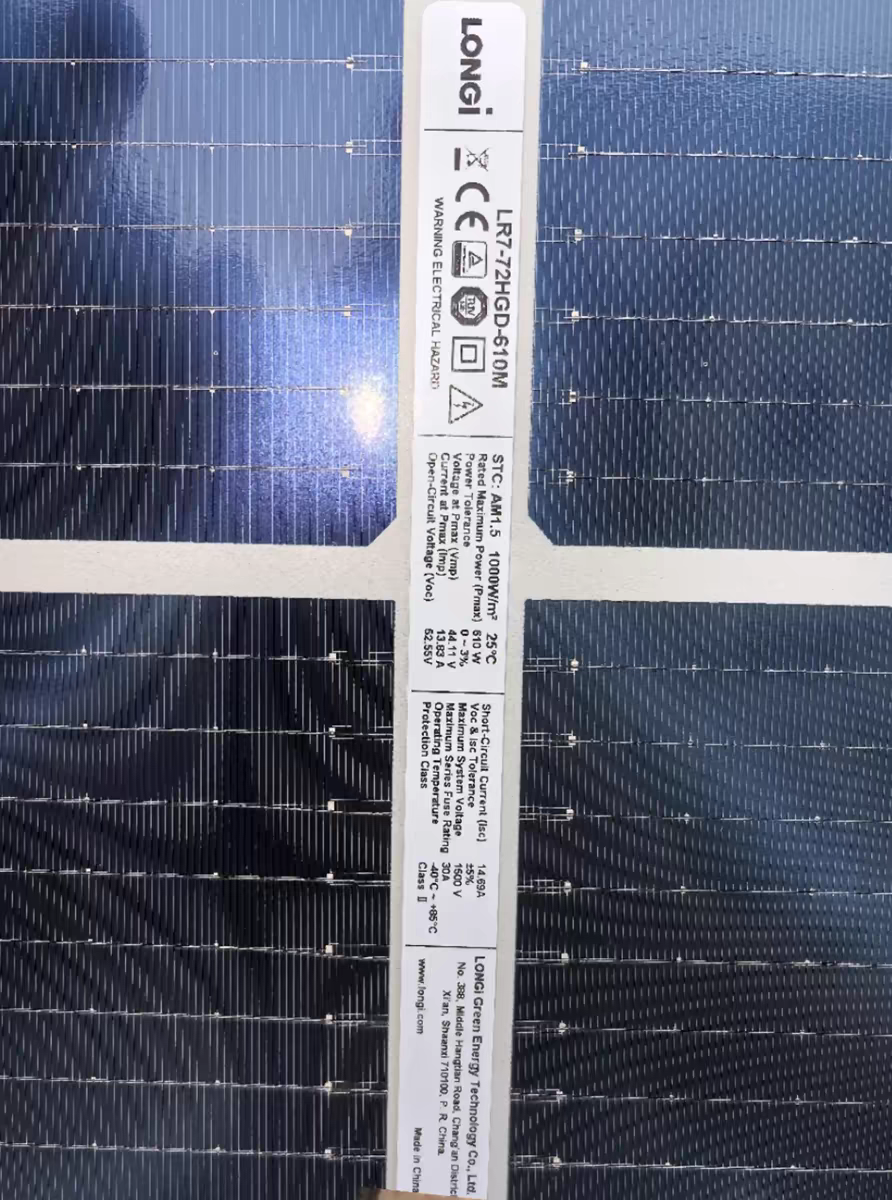

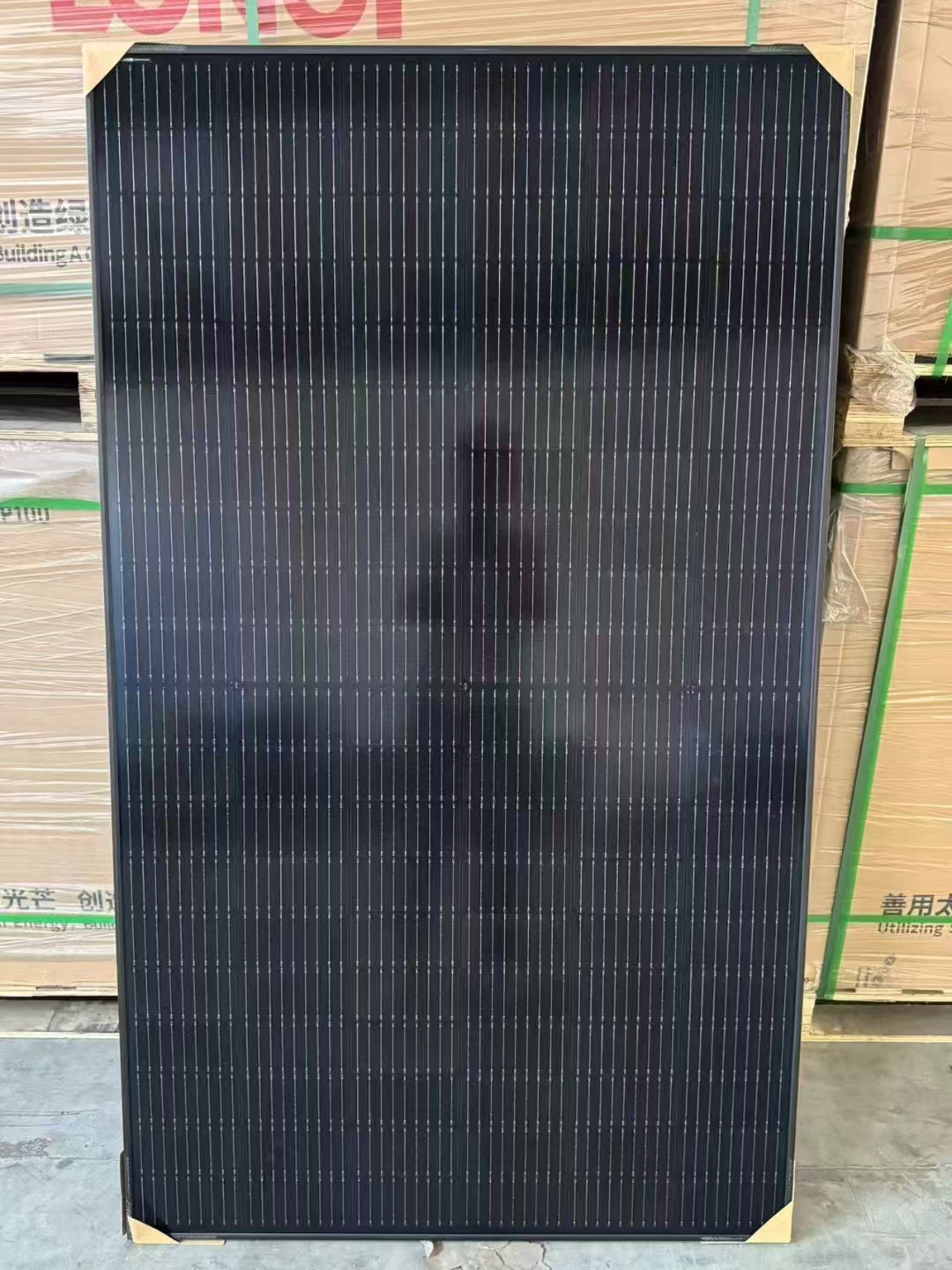

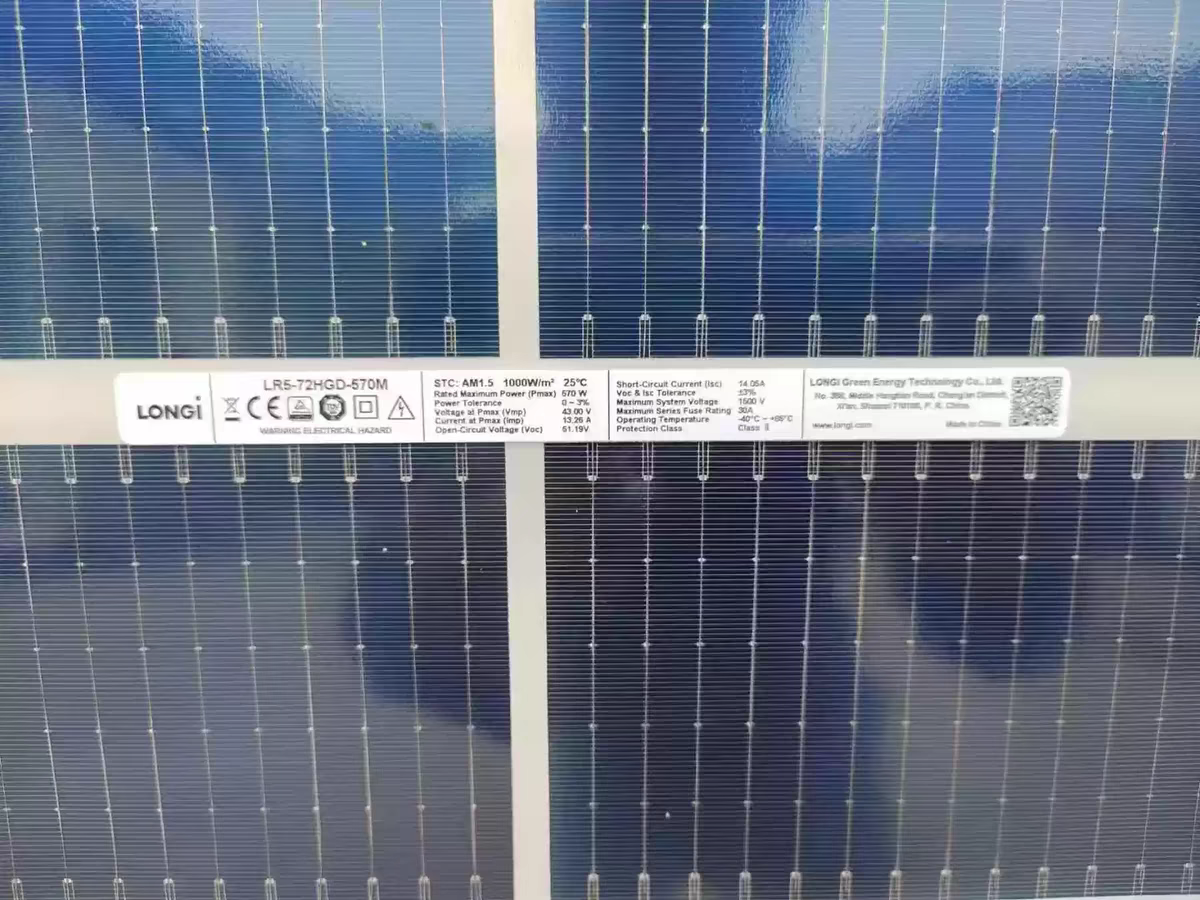

Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
1 / 5
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w
Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w

Factory Direct Monocrystalline Solar Panels with Improves Thin Film Solar Panel Semi-Flexible Solar Panel 600w 610w 630w 650w

Send Inquiry

Product Description

Product Description

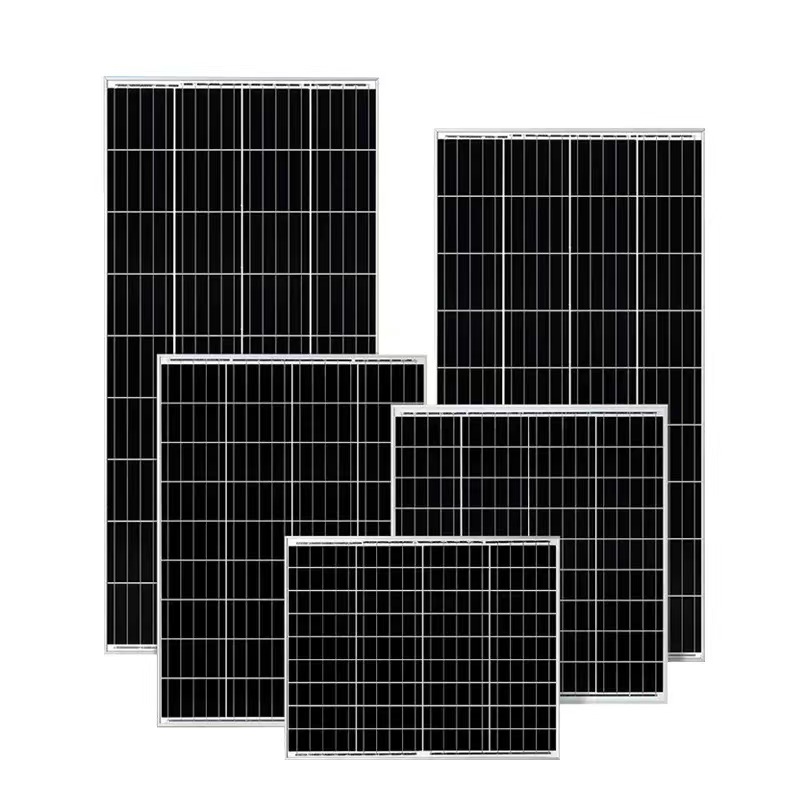

Solar Panel Feature 1

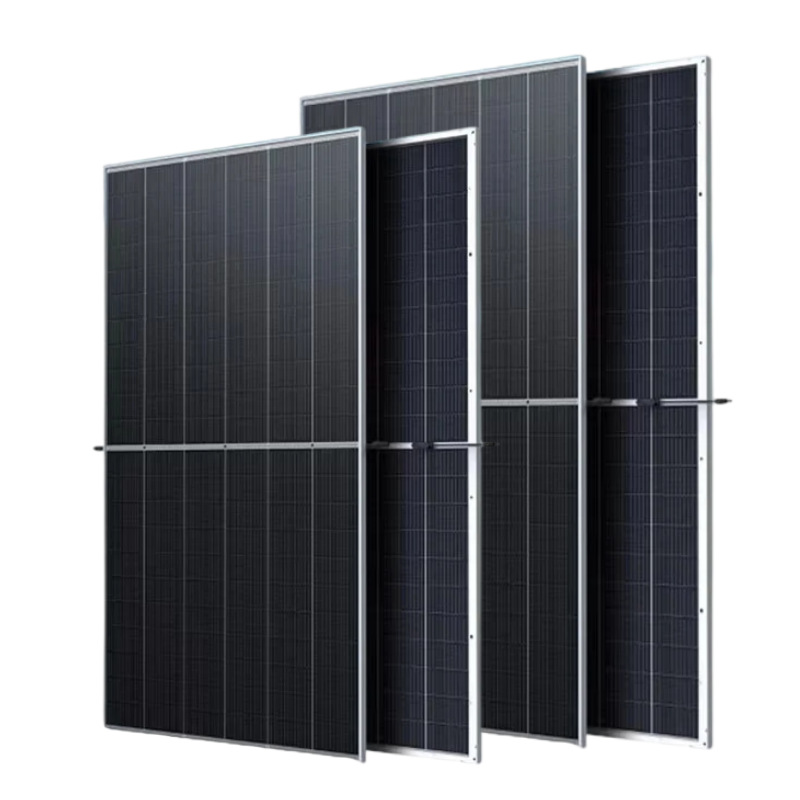

Solar Panel Feature 2

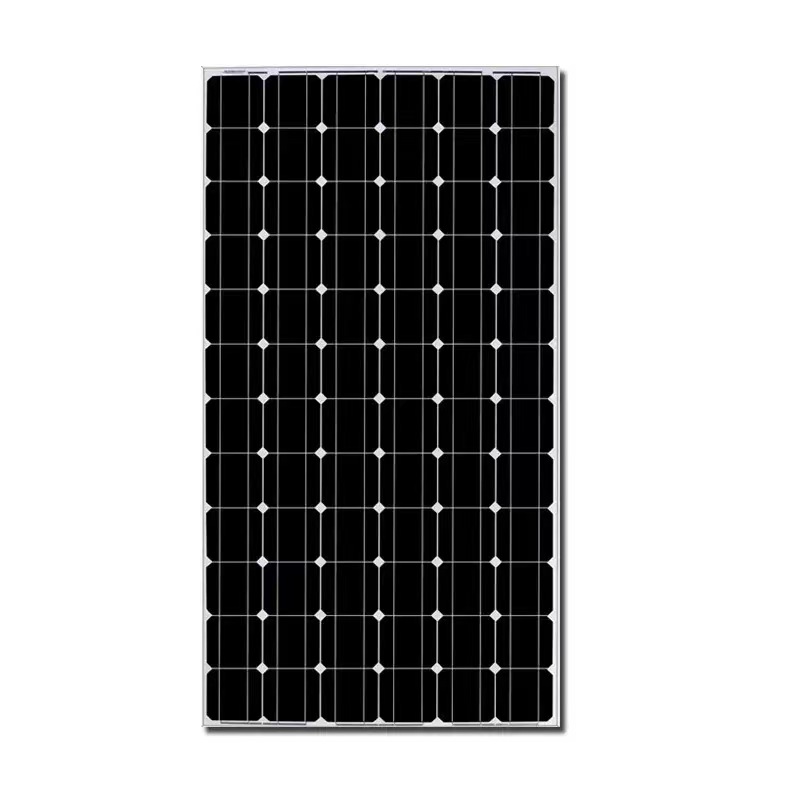

Solar Panel Feature 3
Specification
Mechanical Characteristics
Cell Type N type Mono-crystalline
No. of cells 132(66*2)
Dimensions 2382x1134x30mm
Weight 32.4kg
Front Glass 2.0mm, Anti-Reflection Coating
Back Glass 2.0mm, Heat Strengthened Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Protection Class Class II
IEC Fire Type Class C
Connector Type JK03M/MC4/Others
Output Cables TUV 1×4.0mm²
(+): 400mm , (-): 200mm or Customized Length
Pallet Dimensions 2396x1110x1251 mm
Packing detail 36pcs/pallets, 720pcs/40'HQ Container
Specifications (STC)
Parameter / Model 610W 615W 620W 625W 630W
Maximum Power - Pmax [Wp] 610W 615W 620W 625W 630W
Maximum Power Voltage - Vmp [V] 40.46 40.60 40.74 40.88 41.02
Maximum Power Current - Imp [A] 15.08 15.15 15.22 15.29 15.36
Open-circuit Voltage - Voc [V] 48.68 48.88 49.08 49.28 49.48
Short-circuit Current - Isc [A] 15.96 16.02 16.08 16.14 16.20
Module Efficiency STC [%] 22.58 22.77 22.95 23.14 23.32
Power Tolerance 0~+3%
Temperature Coefficients of Pmax -0.29%/°C
Temperature Coefficients of Voc -0.25%/°C
Temperature Coefficients of Isc 0.045%/°C
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5
Packing & Delivery

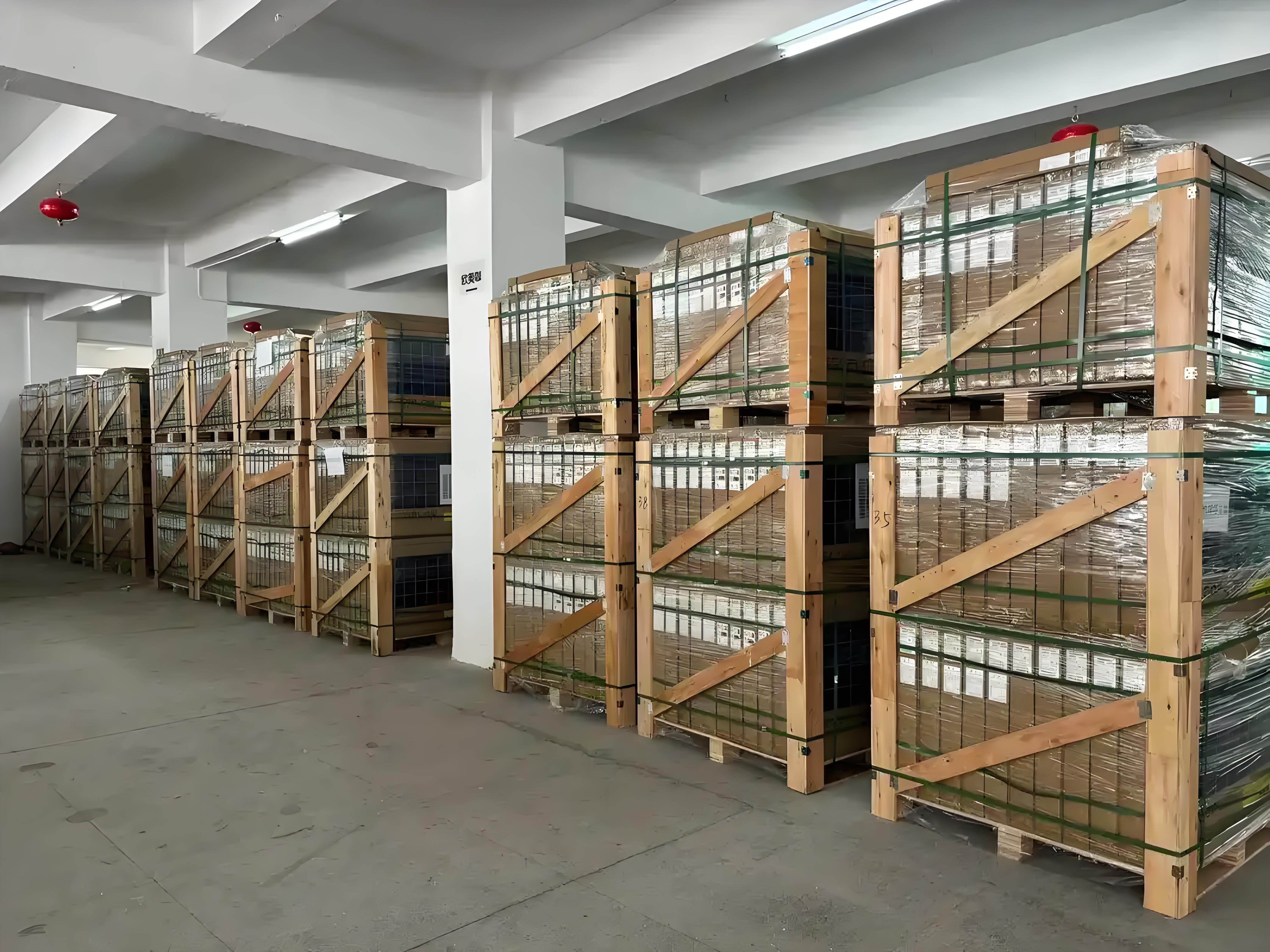

Packaging Process 1

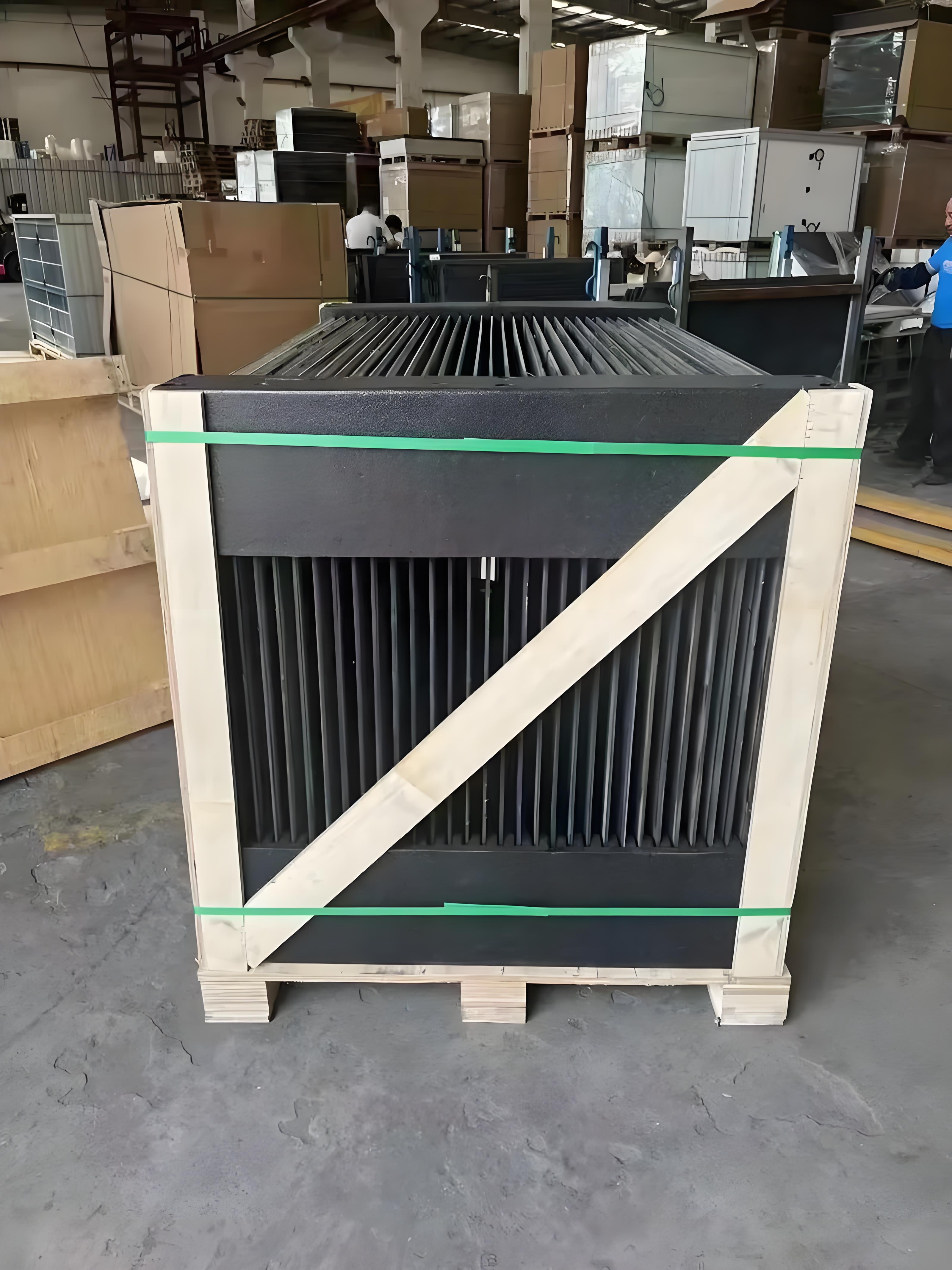

Packaging Process 2

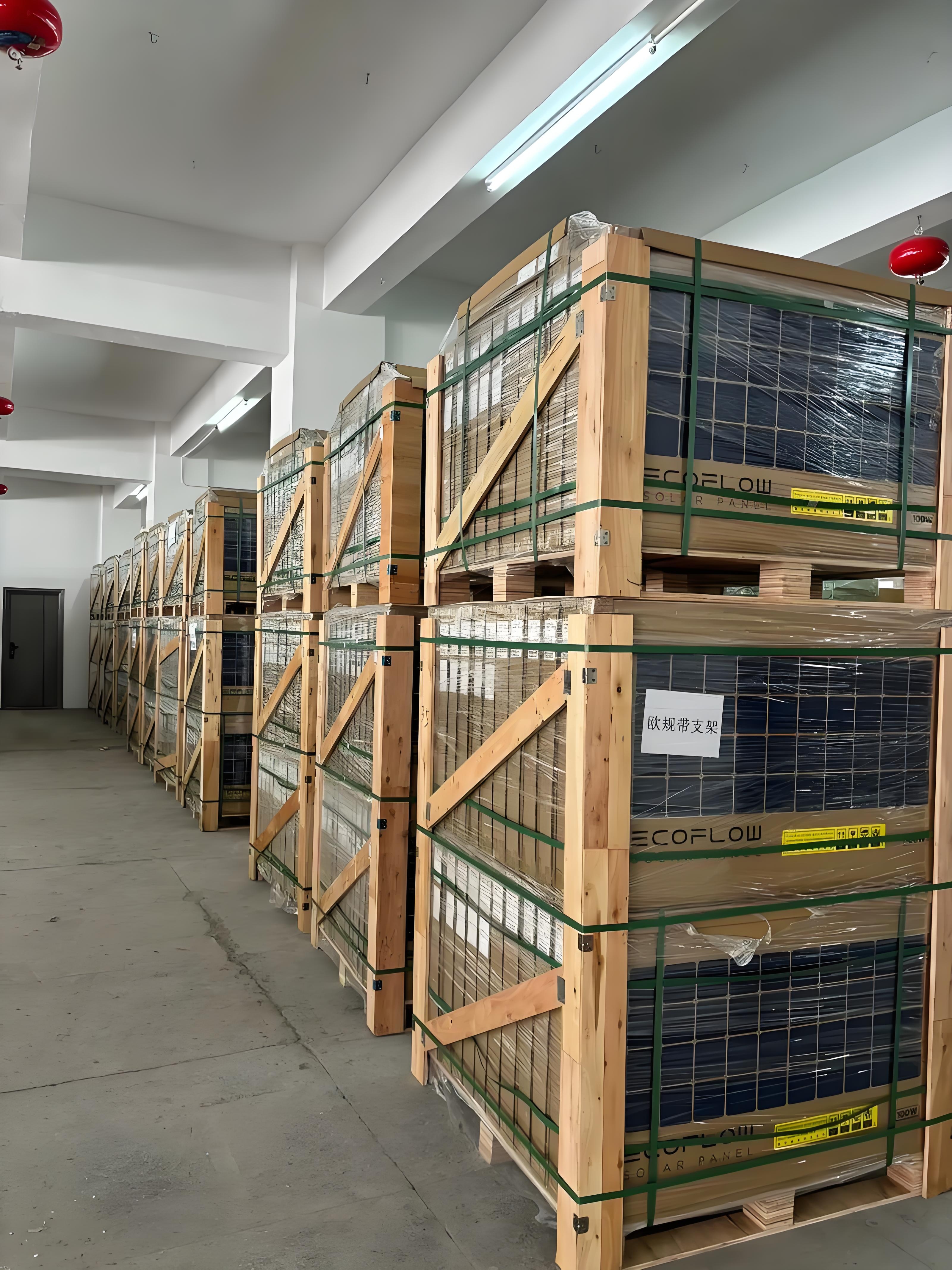

Packaging Process 3

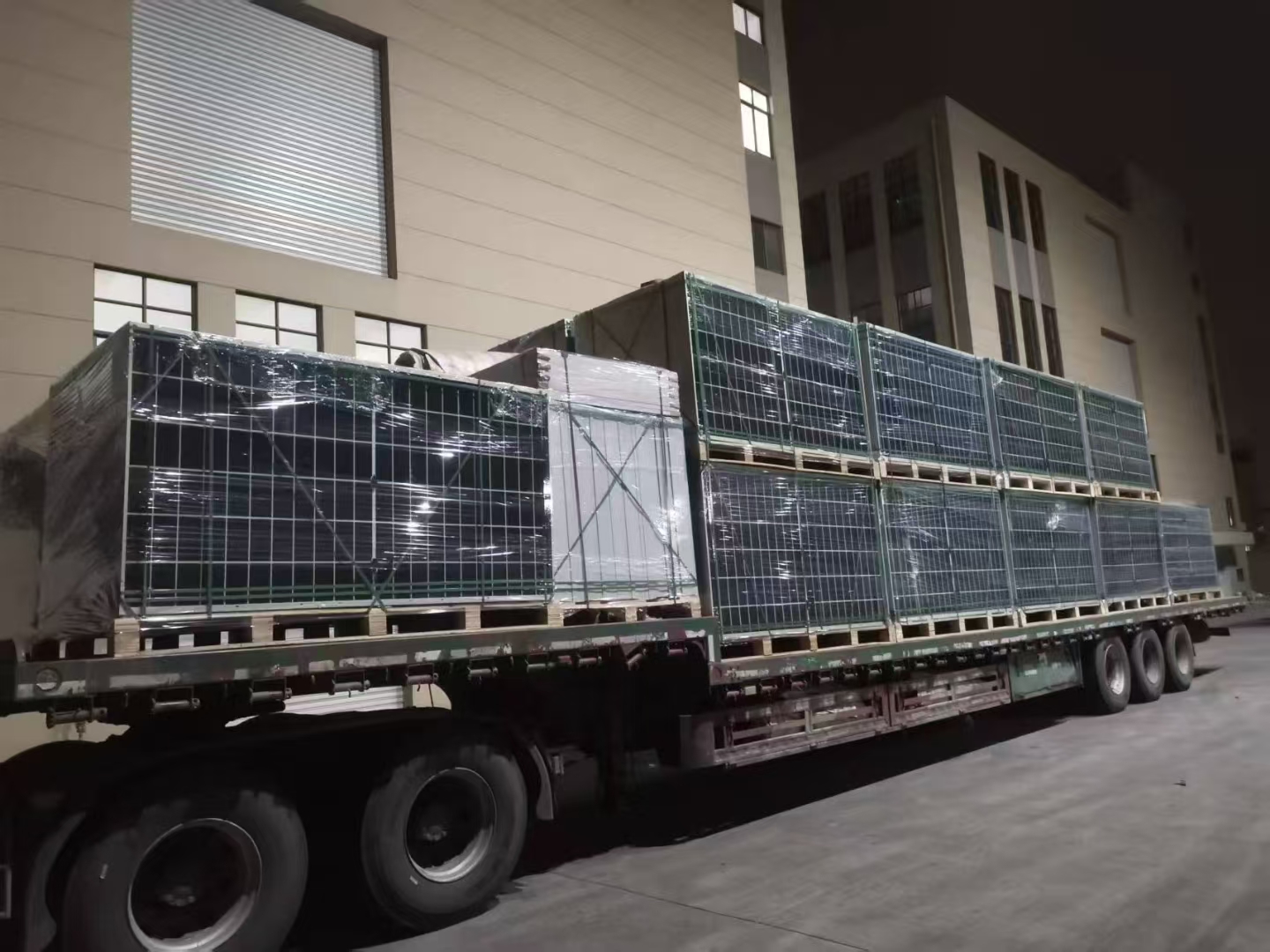

Packaging Process 4
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a high-tech enterprise integrating R&D and production. The products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar systems, etc. Our products are widely used in all walks of life in the society. The sales network covers domestic markets and is exported to overseas. We adhere to the tenet of "customer first, pioneering and innovative", adhering to customer-centricity, keeping improving, pioneering and innovating, and are committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to cooperate, to realize win-win business opportunities and common development. Our major products include solar panels, solar controllers, solar inverters, batteries, DC output solar systems, and off grid solar systems. Free technical service is supported.
Frequently Asked Questions (FAQ)
What are the primary benefits of N-type monocrystalline solar modules?
N-type monocrystalline modules offer higher conversion efficiency (up to 23.32% for our 630W panels), lower light-induced degradation (LID), and superior temperature coefficient performance in hot environments compared to traditional P-type modules.
What is the output power tolerance and warranty expectation of these panels?
The panels feature a positive power tolerance of 0~+3%, ensuring you receive the specified nominal output power or higher. They are built with highly durable materials including 2.0mm double heat-strengthened glass and an IP68-rated junction box to guarantee long-term performance.
How are the solar panels packaged to ensure safe shipping?
Each pallet contains 36 pieces of solar modules (pallet size: 2396x1110x1251 mm). A standard 40'HQ shipping container holds up to 720 pieces, packed securely to prevent movement and damage during long-distance transit.
Can these modules withstand extreme weather conditions?
Yes, the anodized aluminum alloy frame combined with double-sided 2.0mm tempered glass and an IP68 junction box provides high mechanical resistance to wind and snow loads, along with excellent dust and water protection.
What components are included in your full off-grid and on-grid systems?
We specialize in complete solar energy solutions. In addition to high-efficiency solar panels, we provide matching solar controllers, solar inverters, batteries, DC output systems, and brackets, complete with free technical configuration support.
