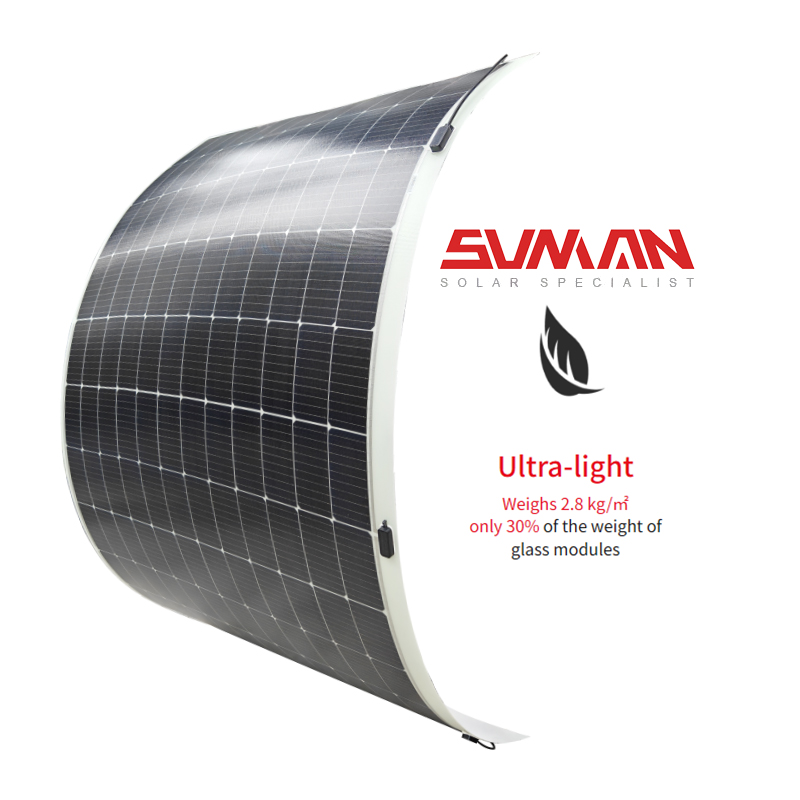

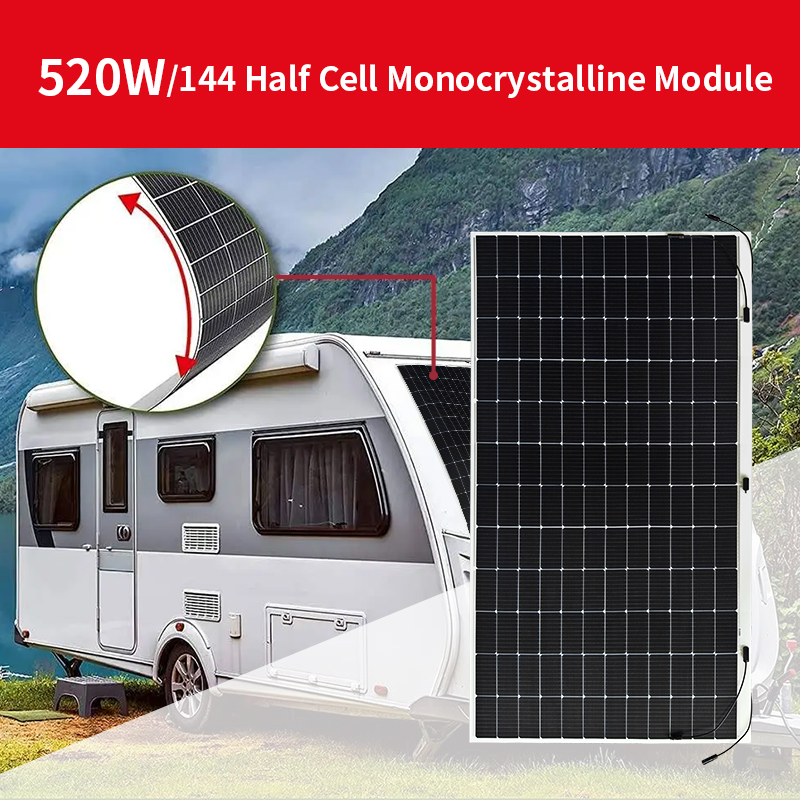

Custom Thin Film Flexible Solar Panel Sunman Earc 430w 520w 550w Mono Cristal Flexible Solar Panels for Roofing

"We offer customized flexible solar panels tailored to your specific requirements, including power range, size, voltage, and application needs. Whether for RV, marine, rooftop, or off grid projects, our flexible panels can be designed to fit your unique energy solutions."

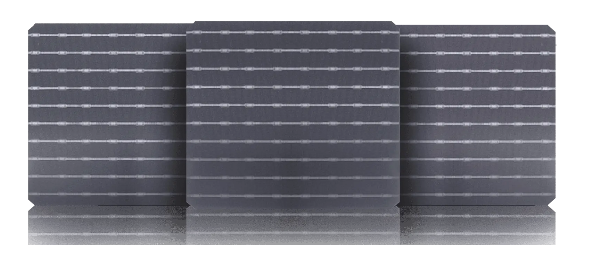

Crystalline Silicon Cell

eArc modules are cell-agnostic and use market-proven crystalline silicon cell technologies, which allows full leverage of the proven durability and economics of scale of the crystalline silicon supply chain.

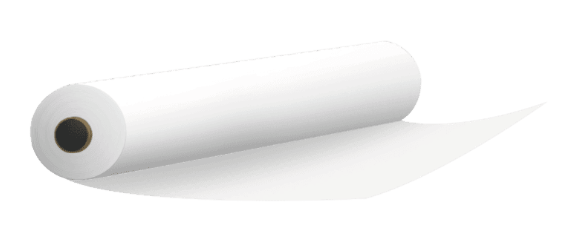

Proprietary Composite Materials

eArc is an innovative laminate that fuses proven crystalline silicon solar cells with proprietary polymer composite materials. The TÜV-certified and patented composite materials meet all properties for solar cell encapsulation, such as high light transmittance, enhanced durability, and impact-resistance.

Product Parameters

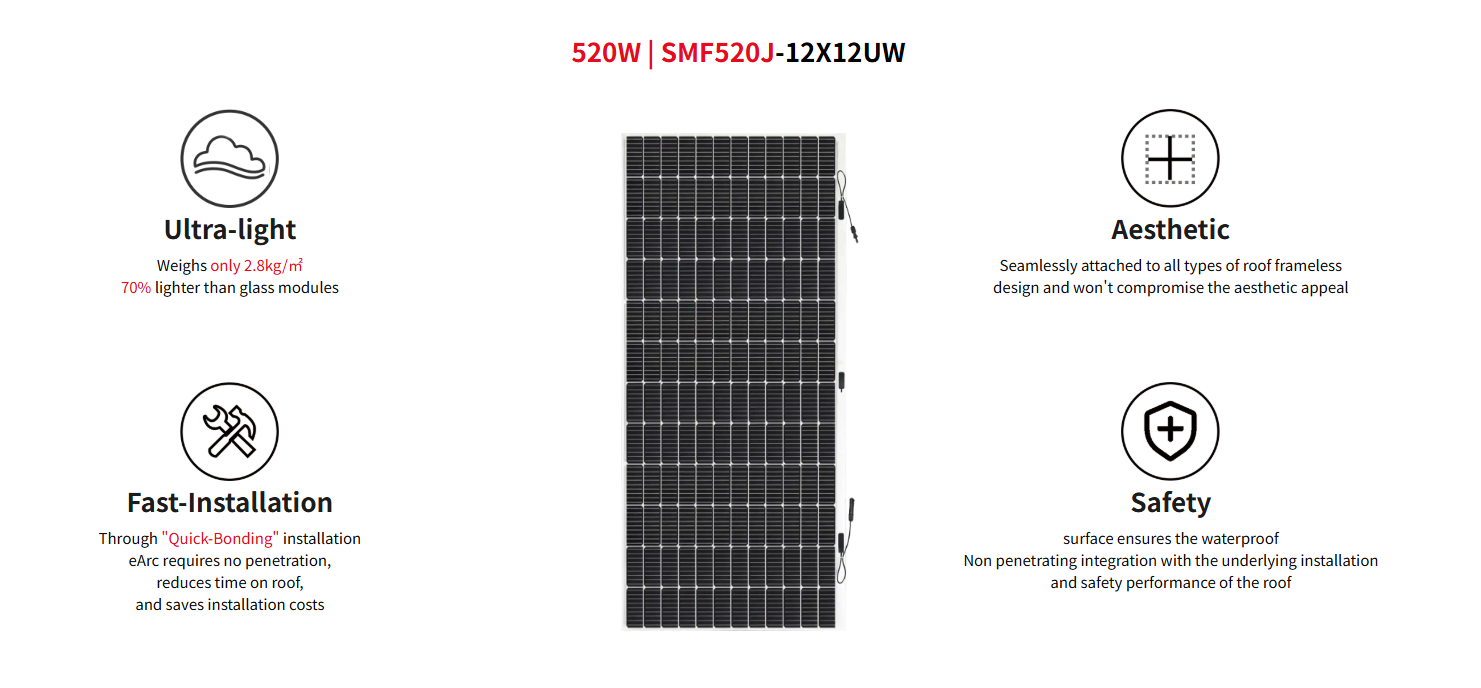

STC	SMF520J-12X12UW
Maximum Power ( Pmax )	520 W
Maximum Power Voltage ( Vmp )	42.3 V
Maximum Power Current ( Imp )	12.31 A
Open-circuit Voltage ( Voc )	49.54 V
Short-circuit Current ( Isc )	13.56 A
Module Efficiency (%)	19.34 %
Operating Temperature	-40℃ to 85℃
Maximum System Voltage	1500V DC (IEC)
Maximum Series Fuse Rating	25 A
Application Class	Class A
Power Tolerance	0/+5 W
Weight	7.2kg ±3%
Size	224611972mm
J-box	IP 68 rated

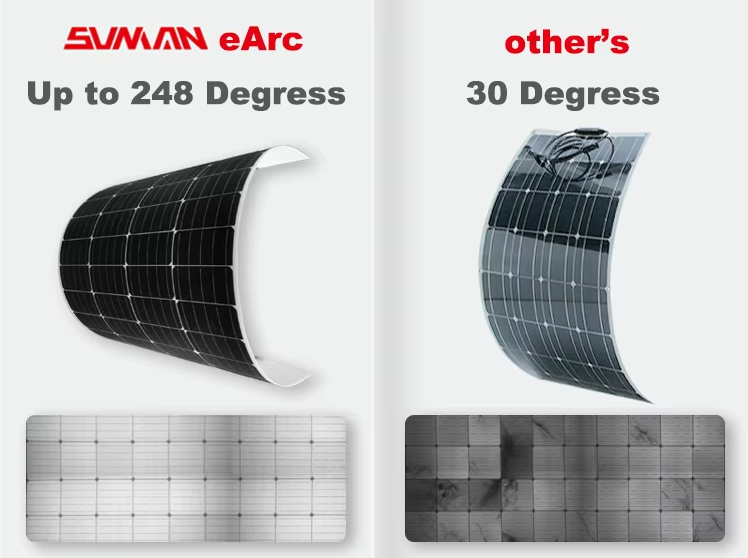

Why Choose Us

Inquire today to get the best products and prices.

Details Images

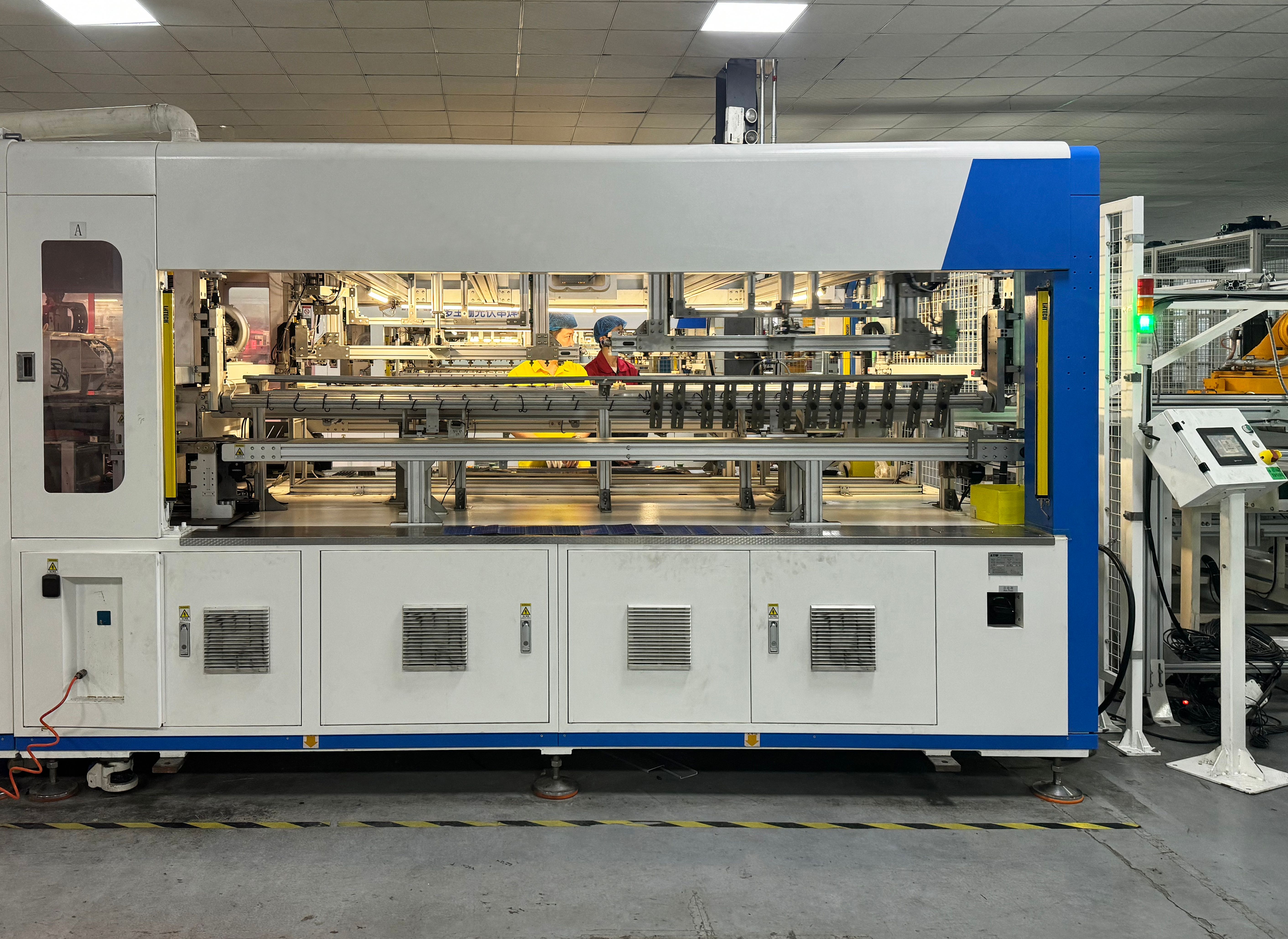

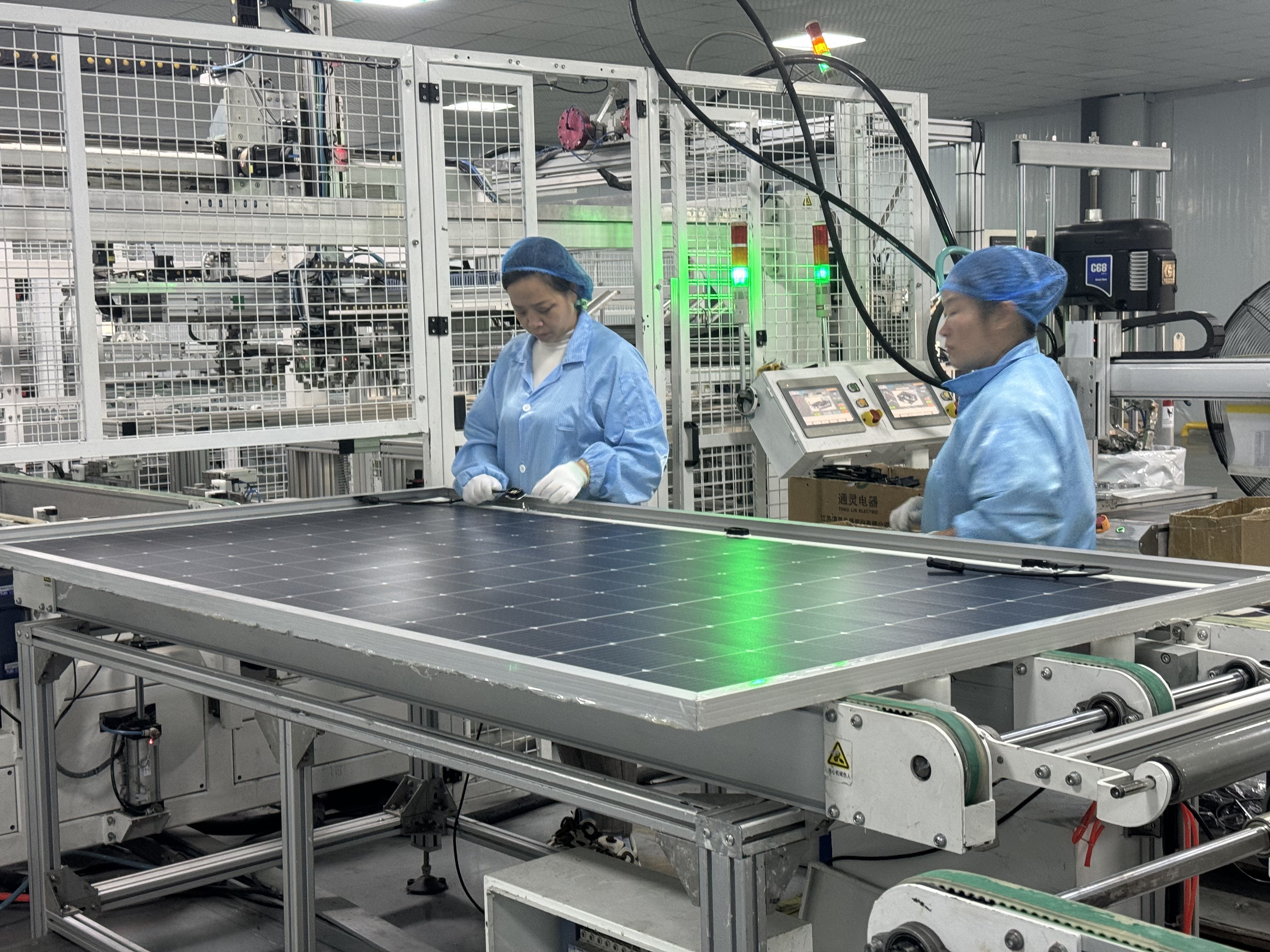

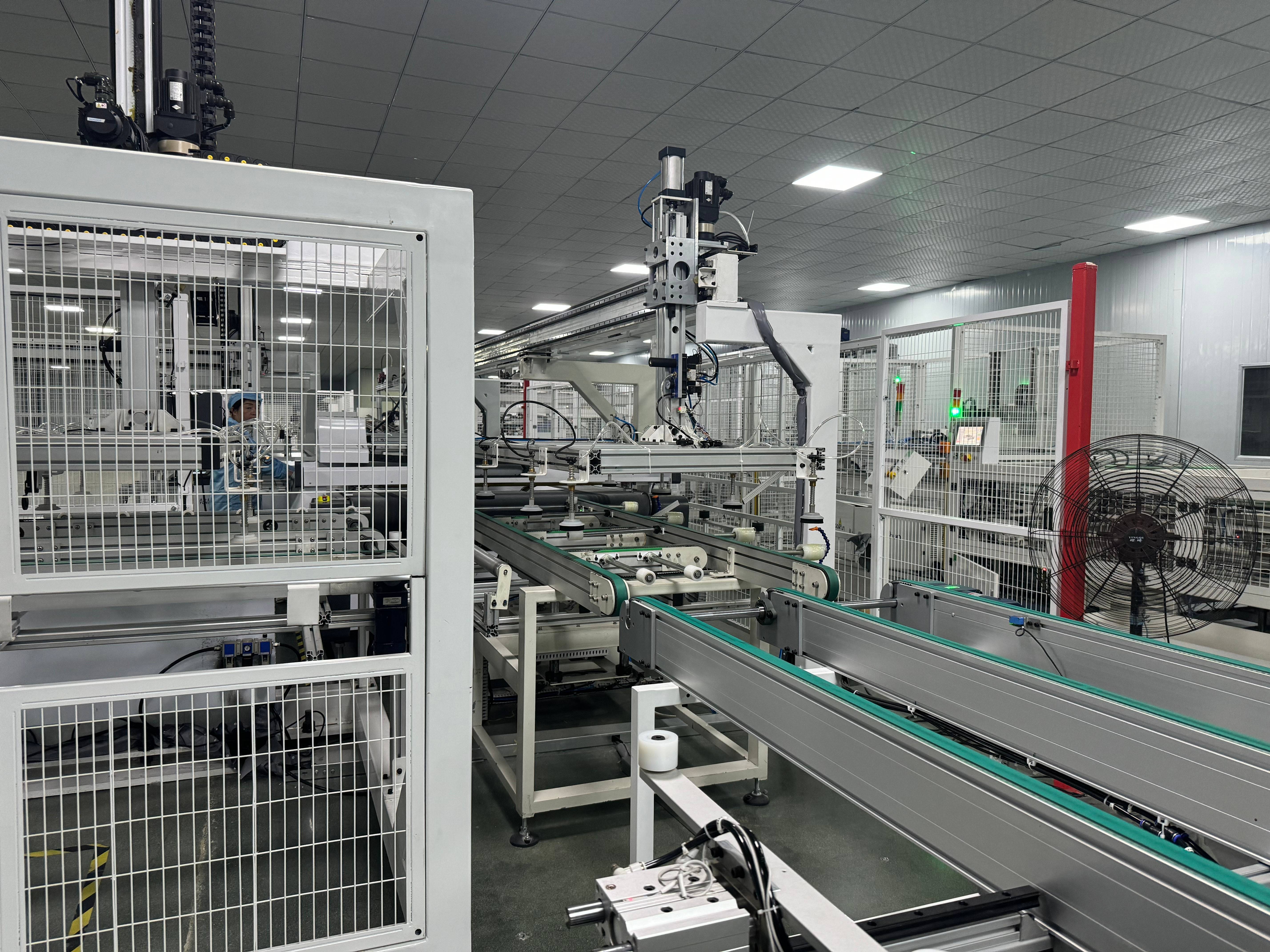

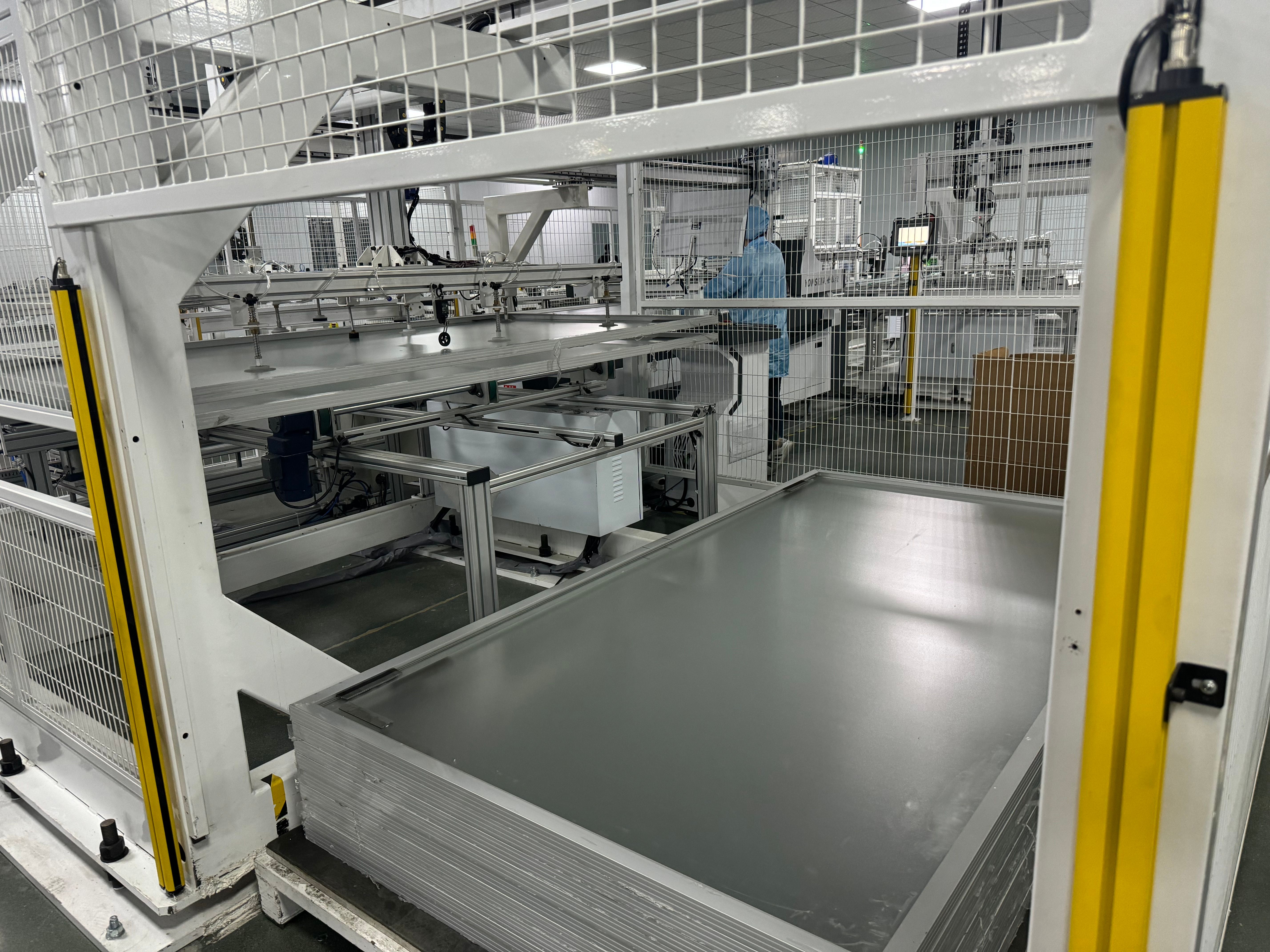

Factory Production

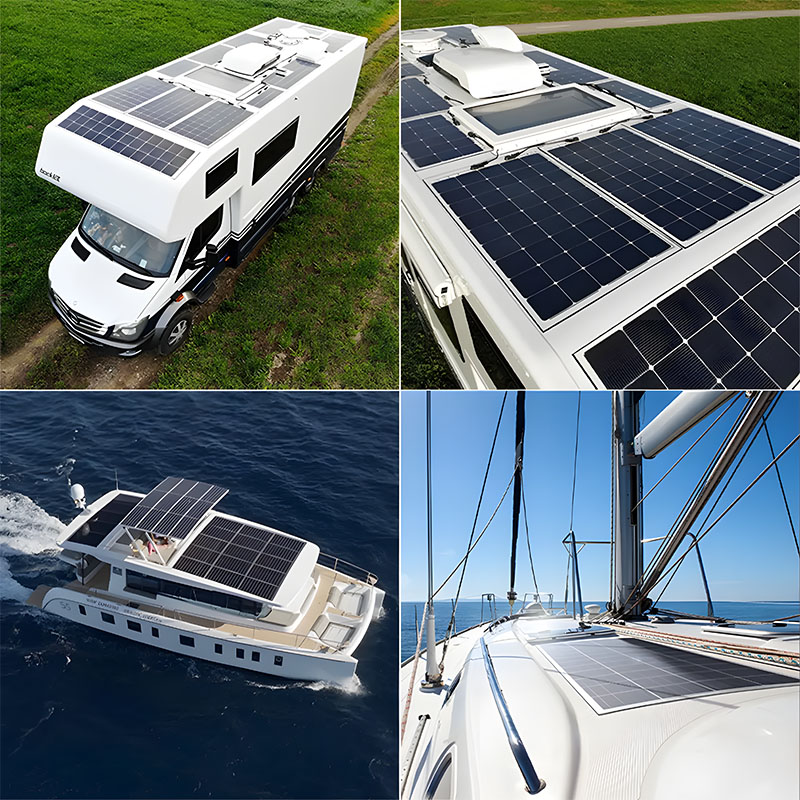

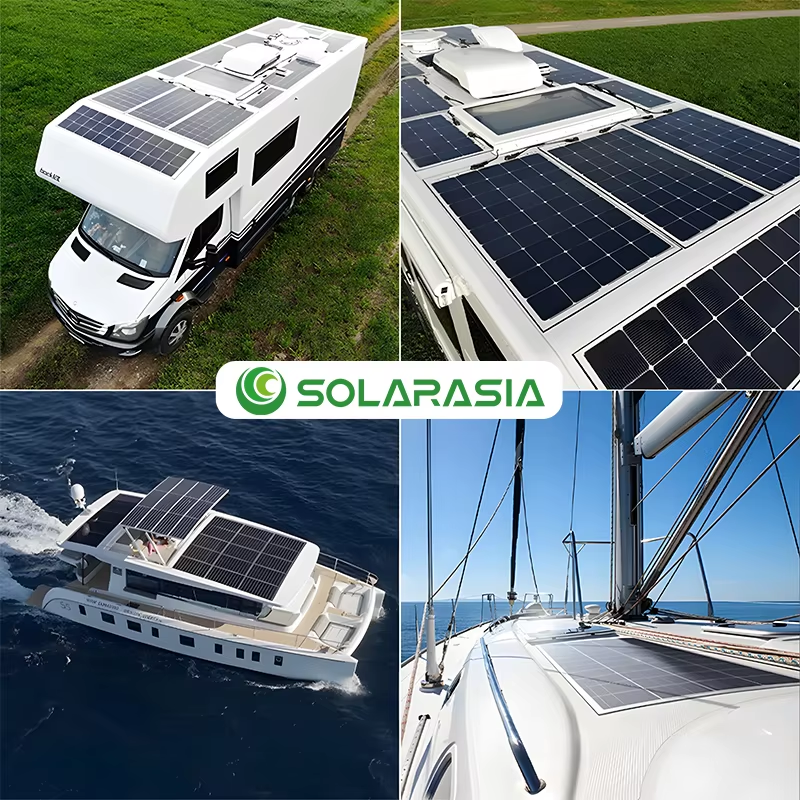

Applications

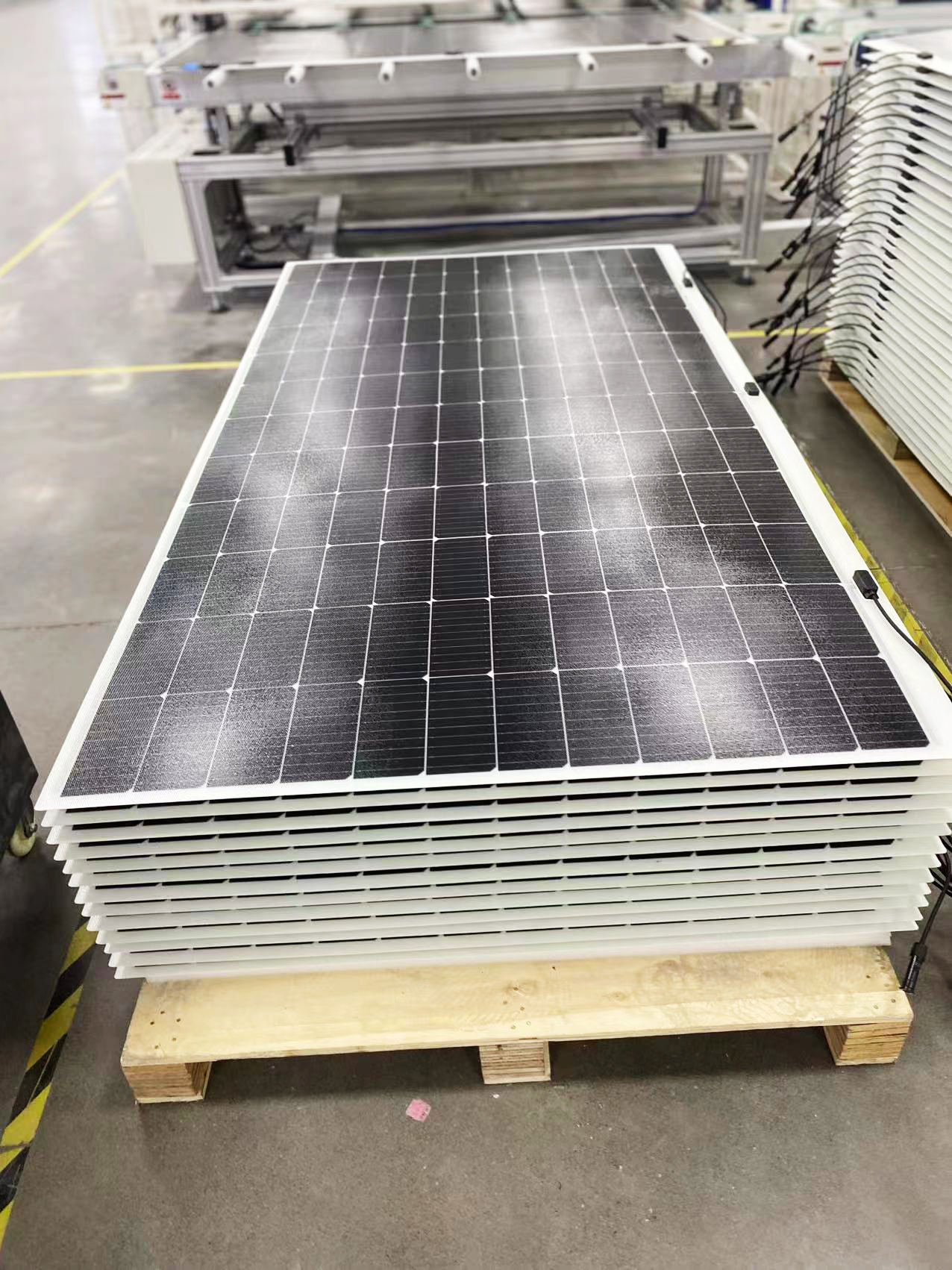

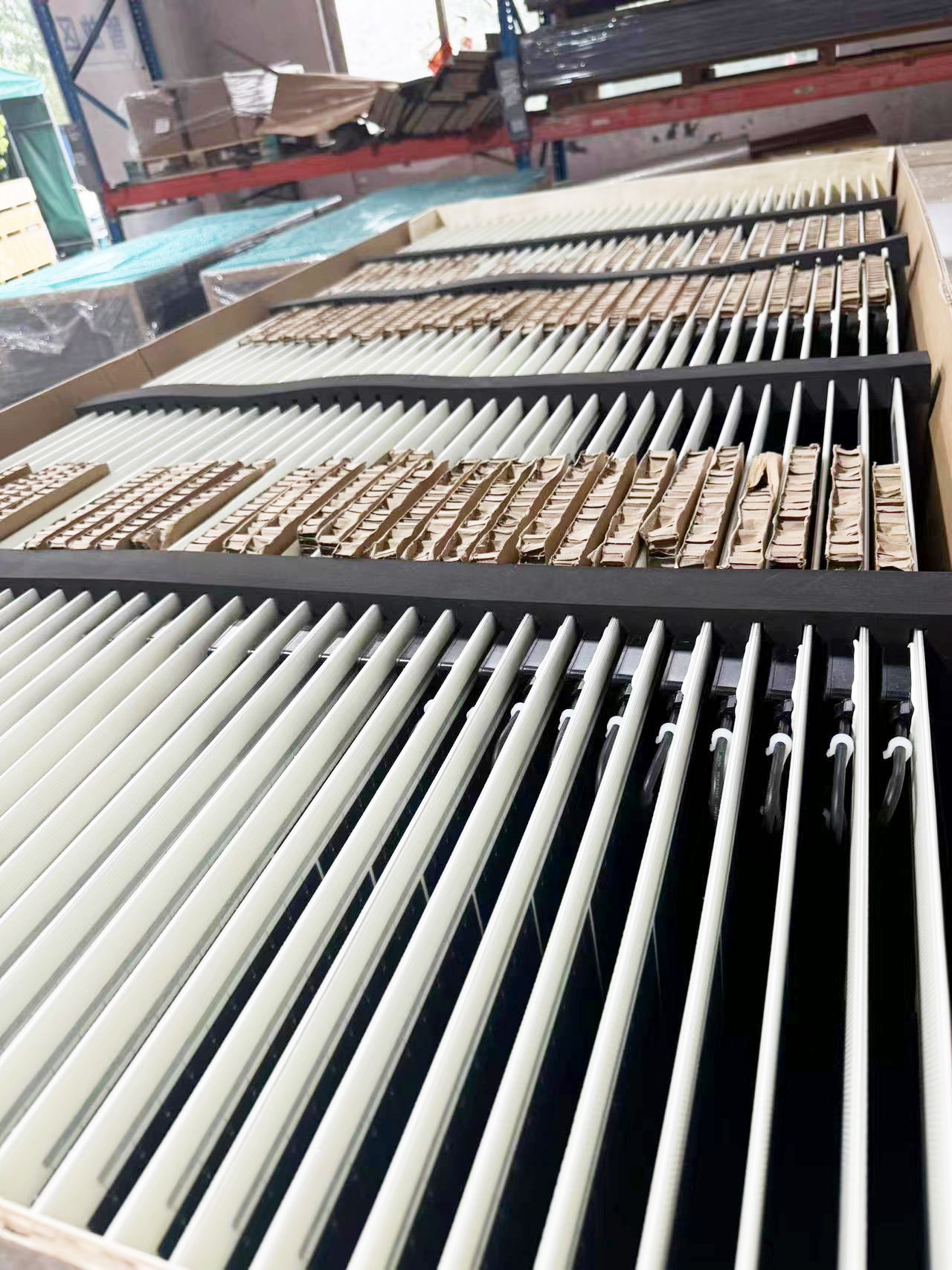

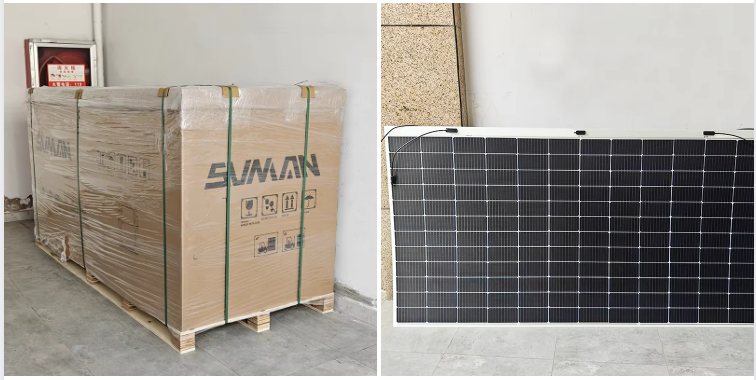

Packaging & Shipping

Patent Certificate

Frequently Asked Questions

Q1: What are the key benefits of using flexible solar panels over rigid ones?

Flexible solar panels are significantly lighter, thinner, and can conform to curved surfaces. This makes them ideal for applications with weight or space constraints, such as RVs, marine vessels, caravans, and non-flat rooftops where traditional racking cannot be used.

Q2: How durable are these composite-material flexible solar panels?

Our flexible panels utilize proprietary polymer composite materials instead of glass. This patented, TÜV-certified outer casing offers exceptional impact-resistance, high light transmittance, and enhanced overall durability against harsh weather, wind, and hail.

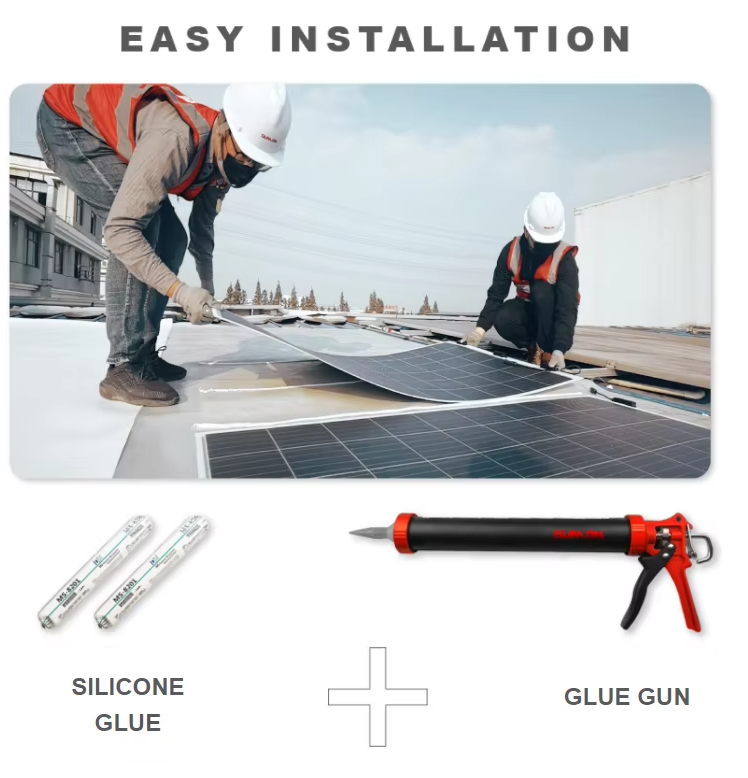

Q3: What is the installation process for these modules?

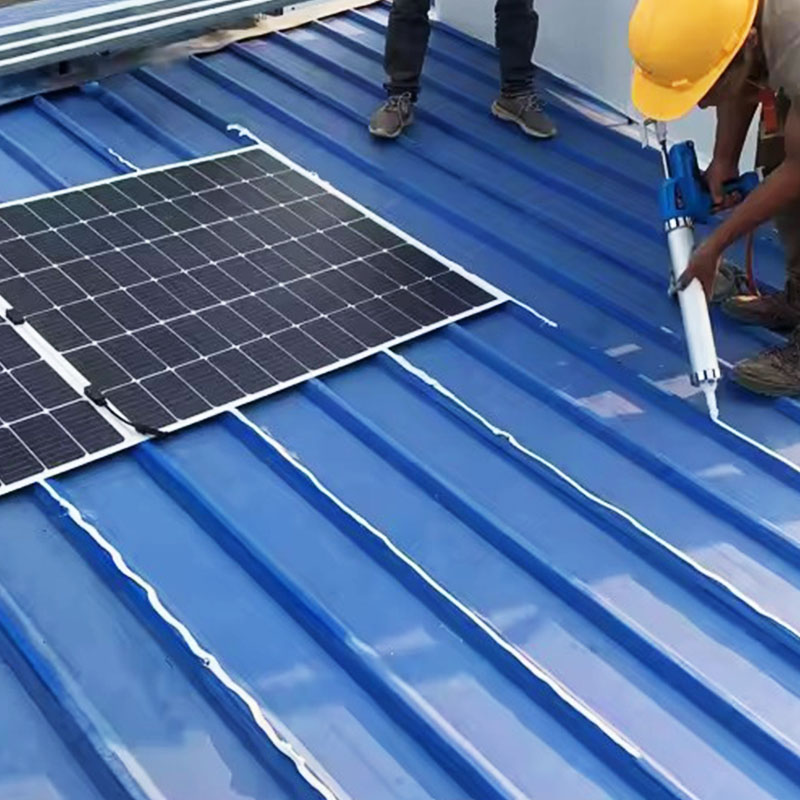

Due to their ultralight design, they can be securely installed using structural adhesives or industrial double-sided structural tape directly onto the surface. This eliminates the need for roof penetration, structural reinforcement, or heavy metallic racking.

Q4: Are the electrical parameters compatible with standard solar controllers?

Yes, our panels operate within standard voltage and current ranges (e.g., Vmp of 42.3V and Imp of 12.31A for the 520W module), making them fully compatible with standard MPPT solar charge controllers and modern battery storage systems.

Q5: What is the waterproof rating of the junction box (J-box)?

All our flexible modules are equipped with IP68-rated junction boxes, ensuring absolute protection against dust ingress and high-pressure water submersion, providing long-term outdoor operation safety.

Q6: Can these panels be customized for unique projects?

Yes, we support customized options tailored to specific needs including custom dimensions, power ranges, electrical output configurations, and structural backing to match your application requirements.
