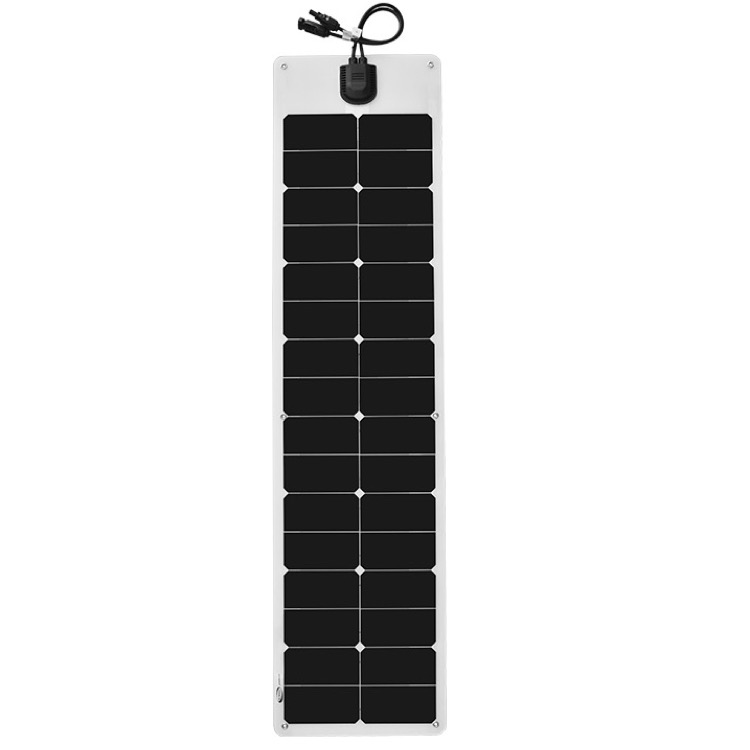

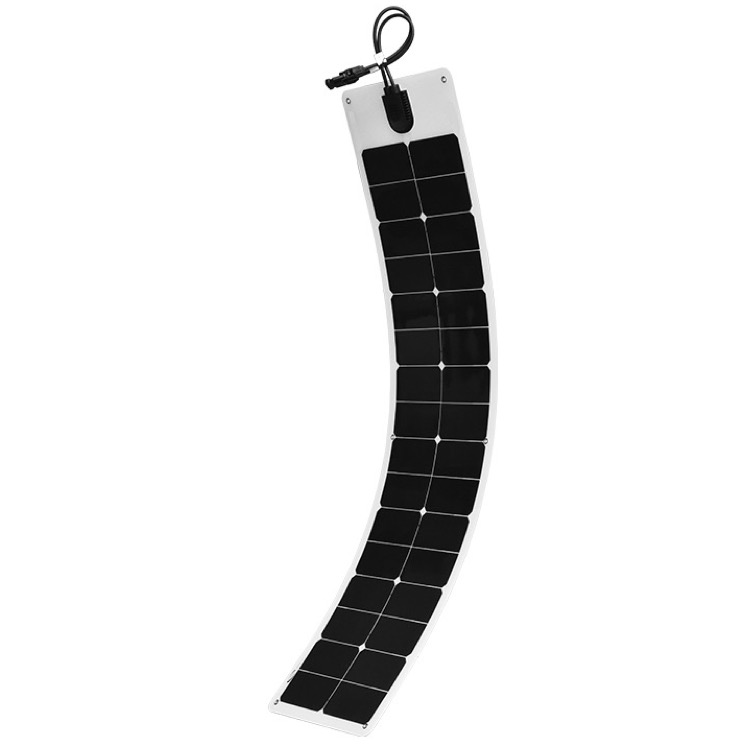

Our flexible solar panel is perfect for boat or other applications. With proper installation it is suitable to run over it. Equipped with 0.9m cable and MC4 connectors. Its maximum bending radius of 30° and a thickness of only 3~4mm. Assembly is easy to realize itself with the kit available in our shop or through the 4 connection holes in the corners of the panel. All our flexible solar panels are made up of Class A high efficiency solar cells.
| Product name | Sunpower 50W ETFE thin film Flexible solar panel | |||||
| Max - Power: | 50W | |||||
| Solar cells: | Sunpower | |||||
| Min power tolerance: | ±3% | |||||
| Voltage at Pmax(Vmp): | 18.8V | |||||
| Current at Pmax(Imp): | 2.9A | |||||
| Open circuit voltage(Voc): | 23.9V | |||||
| Short circuit current(Isc): | 3.08A | |||||
| Max System Voltage(VDC): | 1000VDC | |||||
| cell Efficiency: | 22% | |||||
| Temperature Coefficient of Pmax: | -0.32%/°C | |||||
| Temperature Coefficient of Voc: | -1.8mv/°C | |||||
| Temperature Coefficient of ISC: | -0.06%/°C | |||||
| Nominal Operating Cell Temperature: | 45±5°C | |||||
| Data under standard testing conditions(STC): 1000W/M²; 1.5AM | ||||||

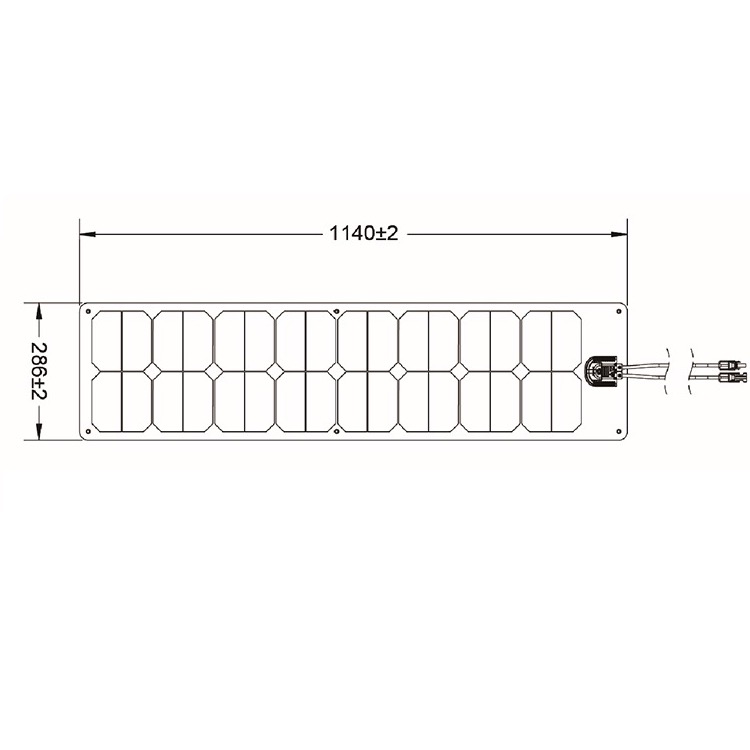

| Dimension: | 1140*286*3mm | |||||
| No of cells: | 2*8 | |||||
| Weight (kg): | 1.6KG | |||||
| Surface: | TPT | |||||
| Back: | TPT | |||||
| Junction Box(protection degree): | IP67/MC4 | |||||
| Operating Temperature: | -10°C ~ 60°C | |||||
| Warranty: For 1 year and service life of 10 years. | ||||||
