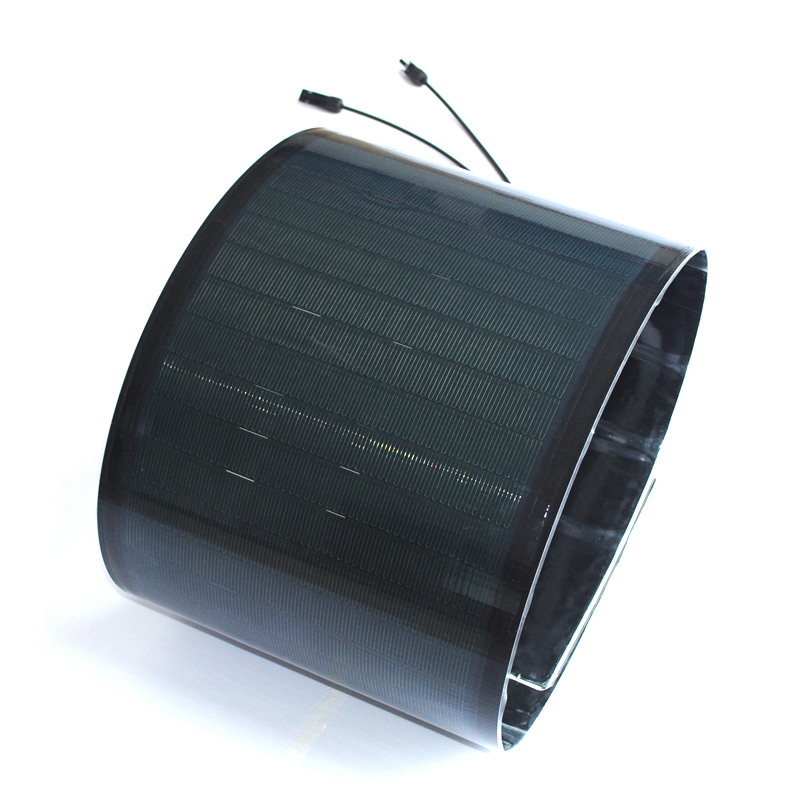

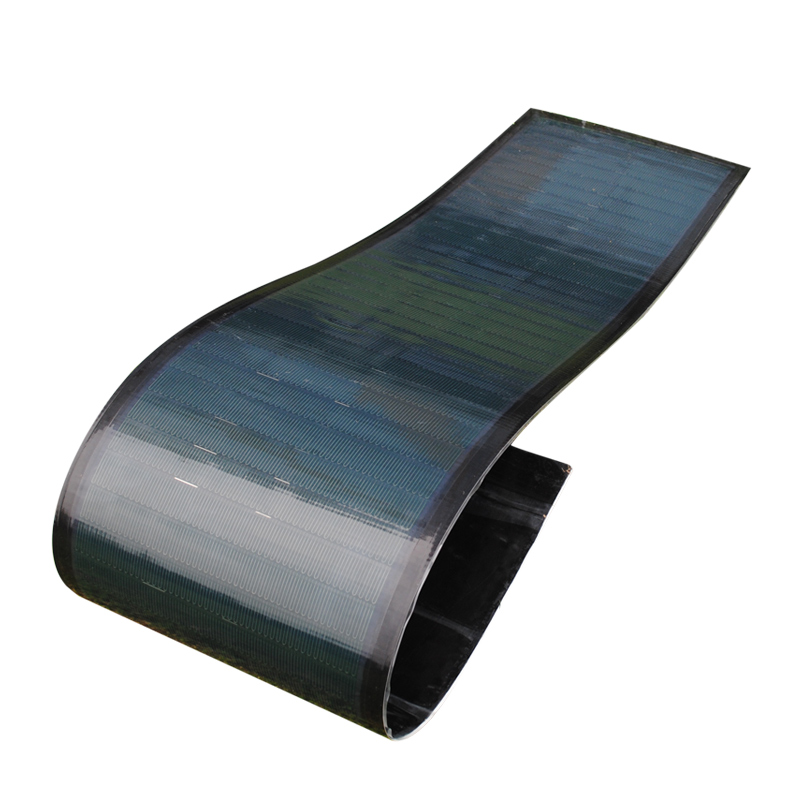

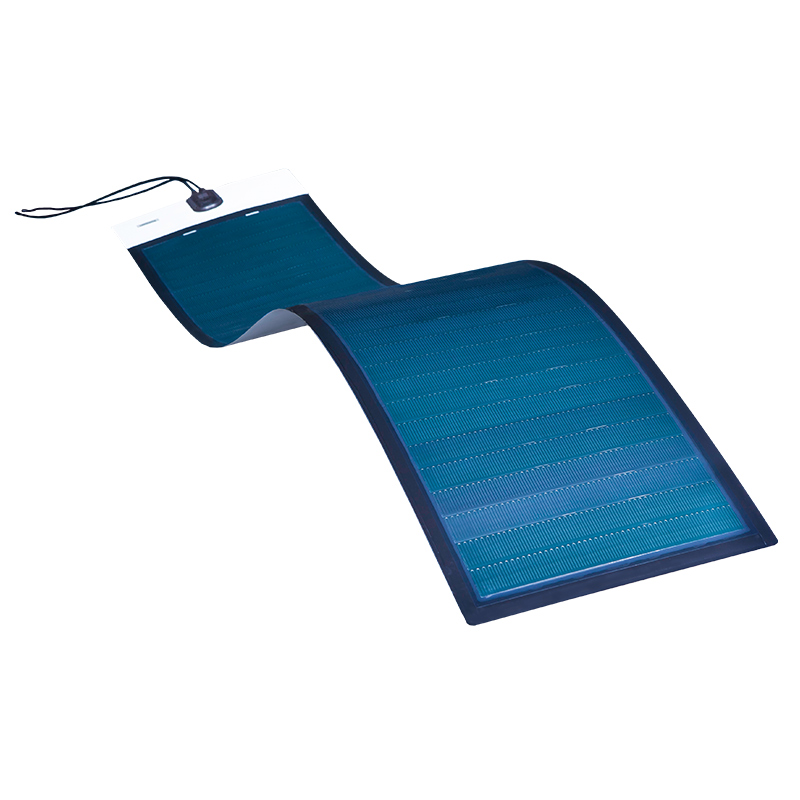

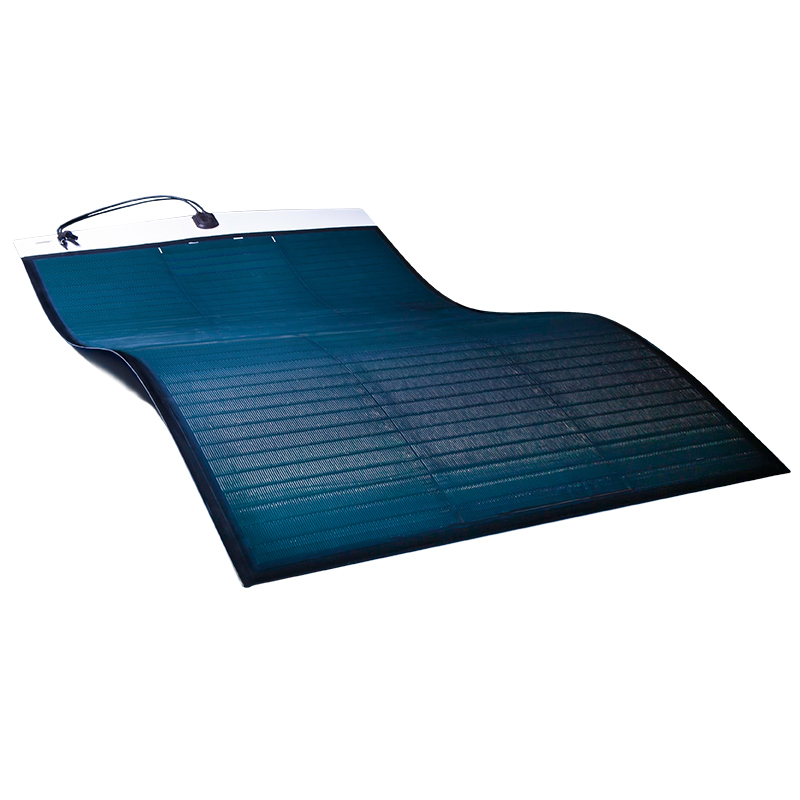

Rollable FLEX-02 CIGS solar panel for rooftop with adhesive backing

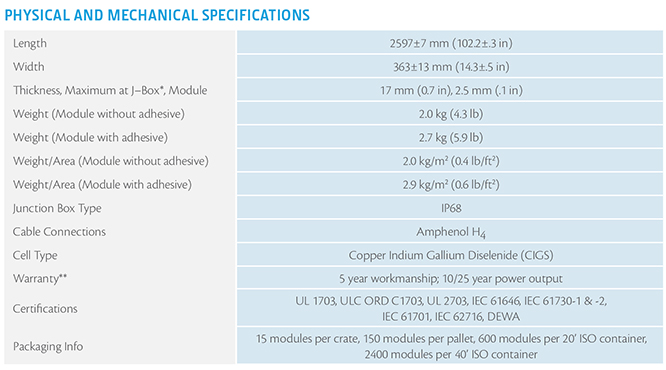

120W Rollable solar panel parameters:
Parameter
Unit
FLEX–02 110N
FLEX–02 115N
FLEX–02 120N
FLEX–02 125N
FLEX–02 130N
Nominal Power PMPP
[W]
110
115
120
125
130
Aperture Efficiency
[%]
14.40%
15.00%
15.70%
16.40%
17.00%
Power Output Tolerance
[W]
+5/-0
+5/-0
+5/-0
+5/-0
+5/-0
Maximum Power Voltage VMPP
[V]
28.9
29.7
30.5
31.3
32
Maximum Power Current IMPP
[A]
3.81
3.87
3.93
4
4.06
Open Circuit Voltage VOC
[V]
37.1
37.6
38.1
38.6
39.1
Short Circuit Current ISC
[A]
4.5
4.52
4.53
4.55
4.57
Maximum Series Fuse Rating
[A]
10
-
-
-
-
Maximum System Voltage (IEC/UL)
[V]
1000/600
-
-
-
-
Note: Electrical performance from standard test condition: sunlight irradiance, 1000W/m2. AM1.5. Temperature of battery: 25 °C
Excellent advantage
The excellent advantages of the CIGS solar panel and our service:
High efficiency: The efficiency of the foldable CIGS solar module is 16.5%. Max efficiency is 22.5% to flexible mono solar module
Lightweight & thin-film: Thickness is only 1mm
Durable: less power decrease, lifetime is about 25 years. 92% at 10 years, 84% at 20 years, and 80% at 25 years
Performance: Bypass diodes for shadow tolerance, Water-proof, UV-proof, Dust-proof. Very good performance of preventing from atrocious weather
Various sizes: customer required solar laptop panel in different sizes is acceptable
Package material: surface is high transmittance ETFE, back is high waterproof PET

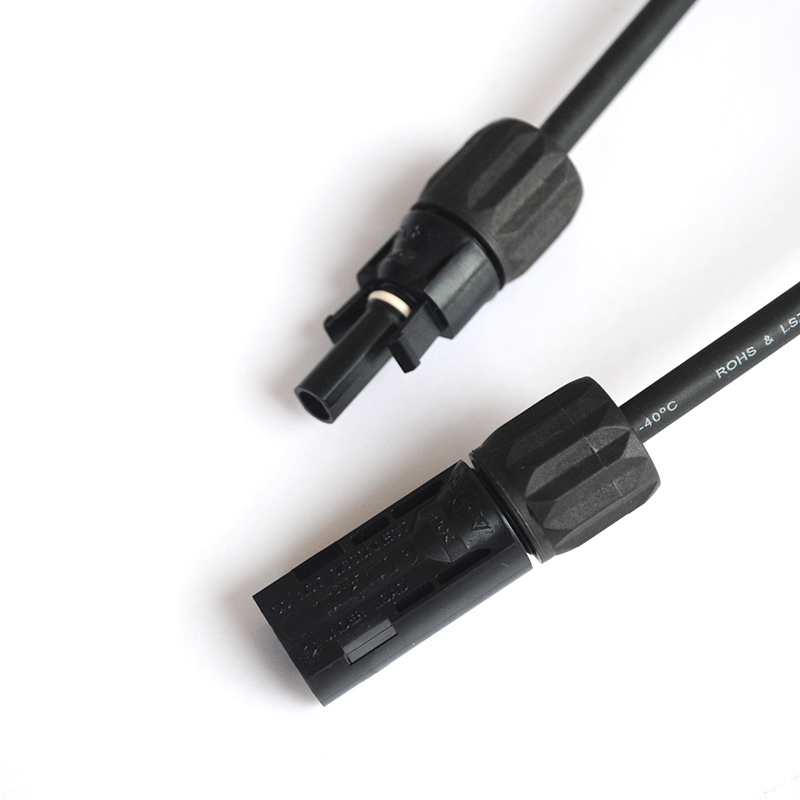

Interface: SAE or other kind of waterproof interface is available
High temperature and low light performance
Quick connect terminals and adhesive backing
Specialized solar team provide you suggestions within 12H when receive your inquiry

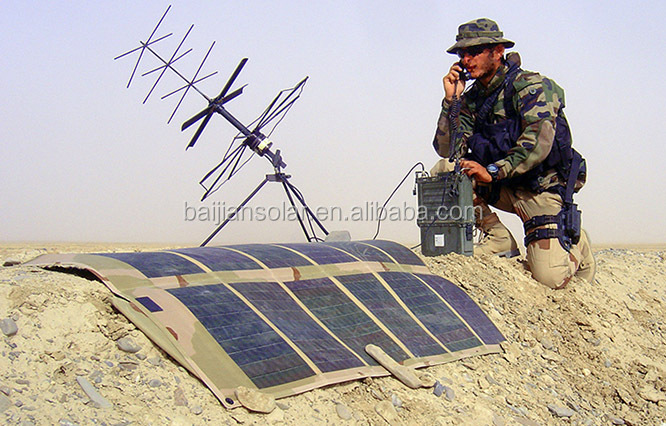

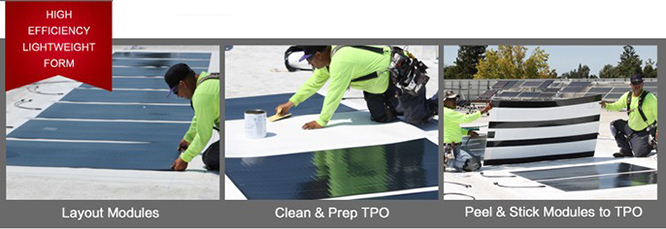

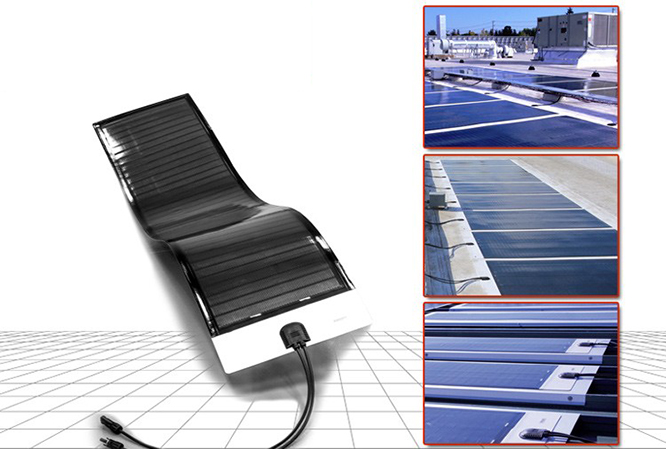

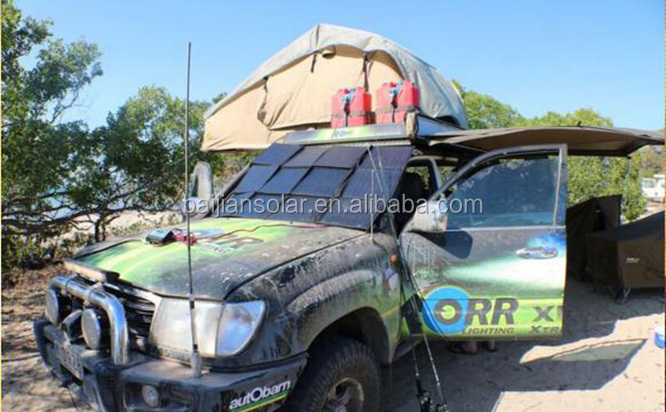

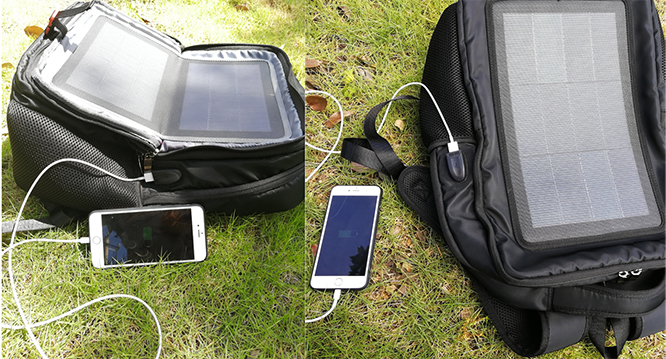

Application

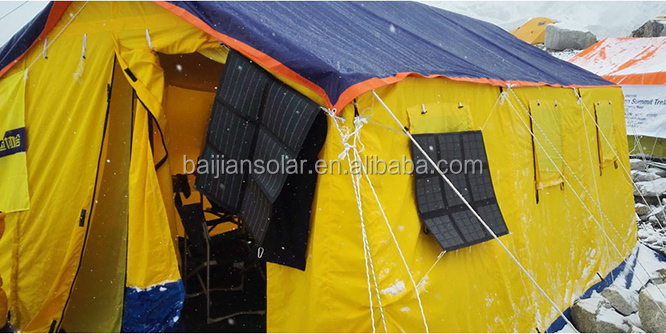

Application templates for your info:
Packaging & Shipping
The packaging and shipping about the foldable solar module:

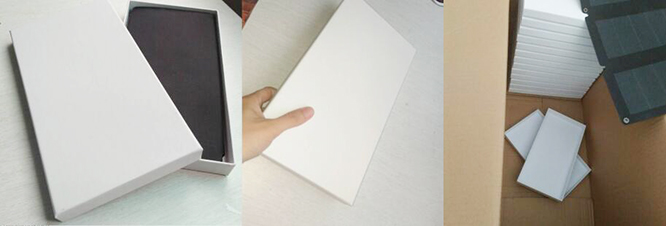

1. The packaging of the foldable solar module: pp bag + white box, 10 pcs per carton. And, customized gift box is also welcomed.
2. Shipping time & method: the production is generally not more than 15 days, and will be shipped as customers request.
Frequently Asked Questions
Q1Are you manufacturer or trading company?
A: We are manufacturer, that is why we can do customized solar panels, and with very competitive factory price.
Q2Can you offer samples?
A: Yes, we can provide you samples for testing.
Q3How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. We use the most advanced machines for incoming raw materials testing and life testing to ensure the quality of every product.
Q4Is it possible to do personalized logo on the panel?
A: Yes, it is available for us.
Q5How long is the warranty of your solar panel?
A: We can provide two years warranty and permanent after-sale service of our panels.
Q6Do you have any patents and attend exhibitions?
A: Yes, we have patents and we regularly attend exhibitions to showcase our solar product innovations.
