Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
1 / 5
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price
Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price

Thin Film Light Weight 100W 33V Flexible Sunpower Silicon Solar Panels 20% Efficiency ETFE Front Cover Factory Low Price

Send Inquiry

Product Description

Specification
MONO/POLY MONO
Item No. SFED-F100SP-2
Cell brand USA SunPower cells
Maximum power (Wp) 100W
Maximum power voltage (V) 33.0
Maximum power current (A) 3.03
Open circuit voltage (V) 39.6
Short circuit current (A) 3.30
Cell efficiency (%) 23%
Number of cells (Pcs) 56(7*8)
Size of cell (mm) 125*125
Size of module (mm) 930*540*3mm
Front side material ETFE
Junction Box Type IP67, 2 bypass diodes inside
Cables and length 2.5mm², 900mm+MC-4 connectors
Grommets Φ8mm
Connector MC4
Maximum System Voltage 700V
Maximum Series Fuse Rating 15A
Temperature Range -40---+85℃
Power Guarantee 5 years for the whole products, 90% power for 5 years, 80% power for 10 years.

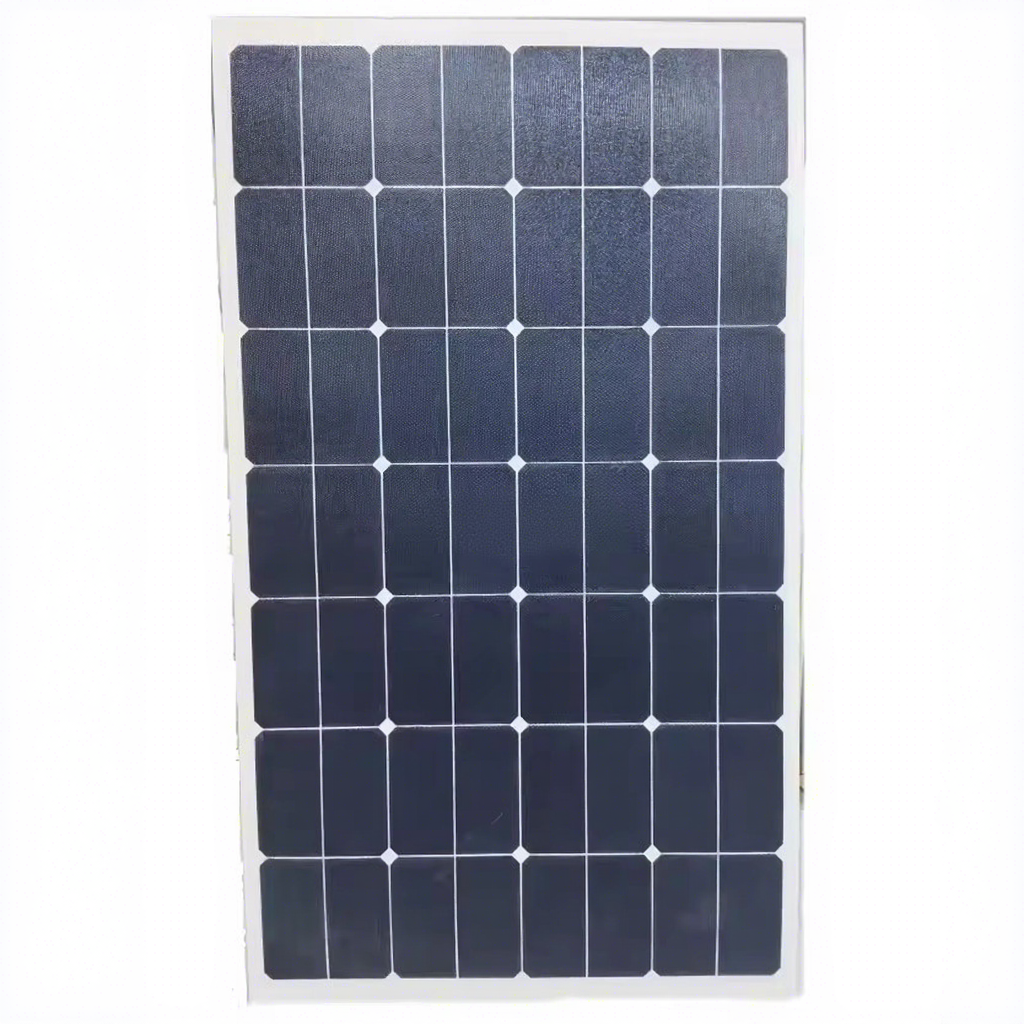

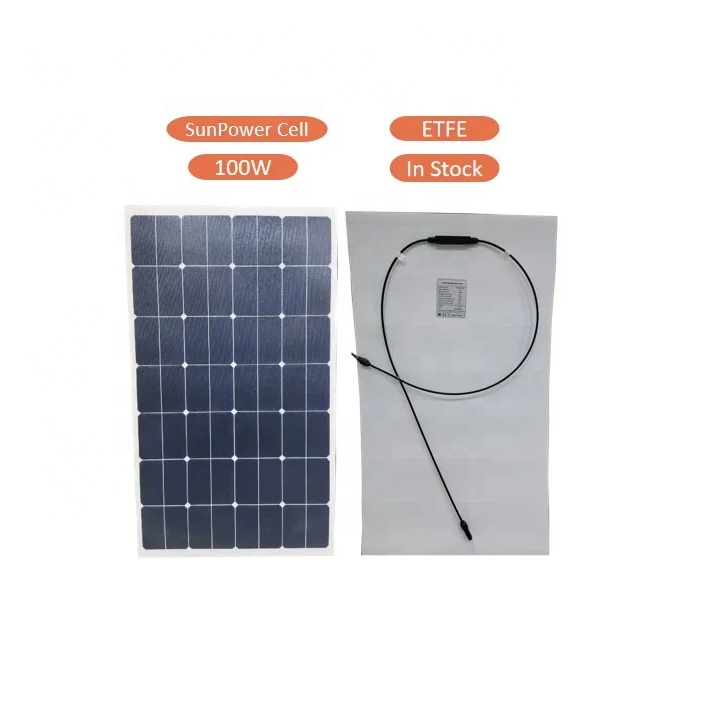

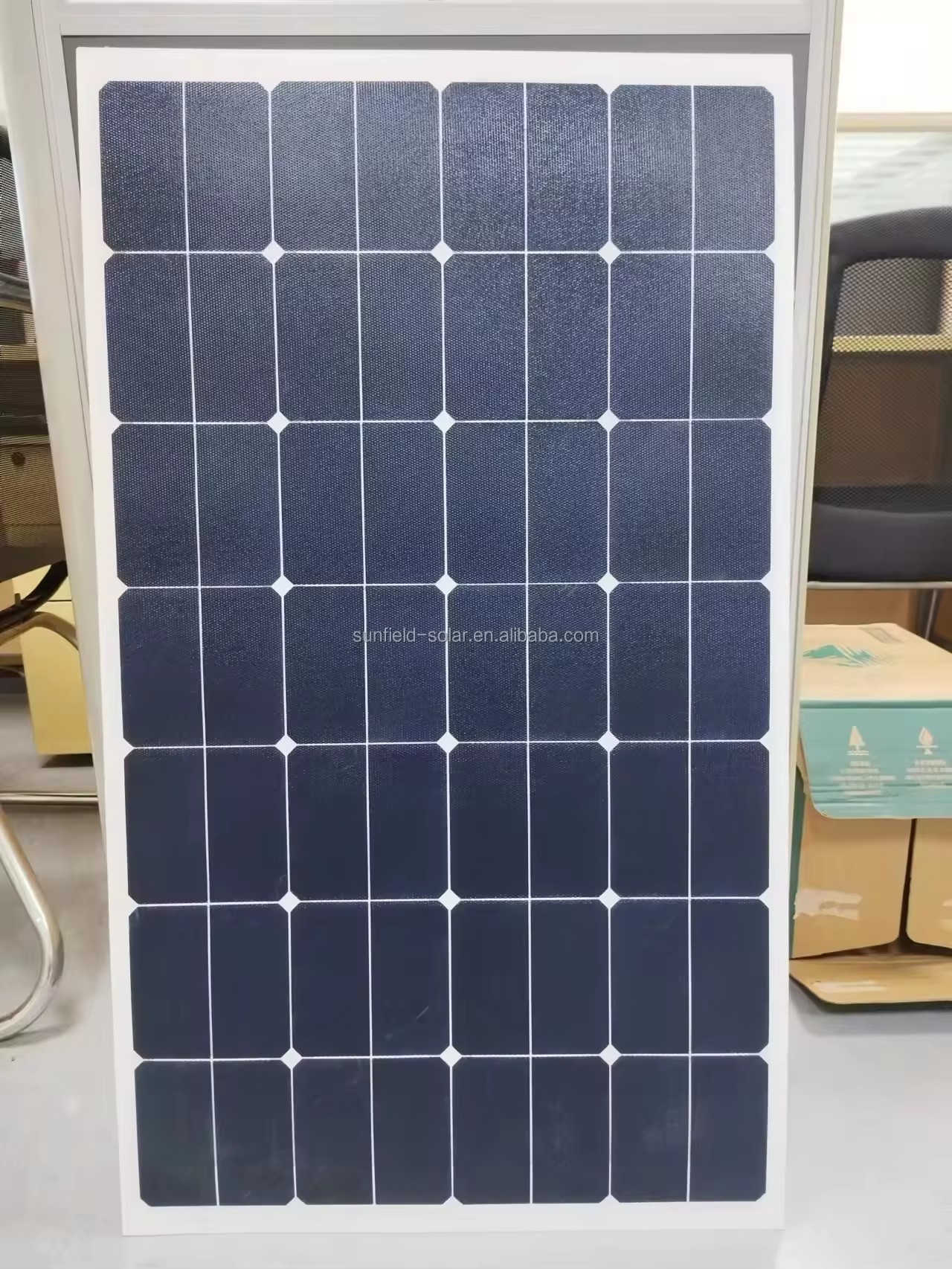

Flexible Solar Panel Front View

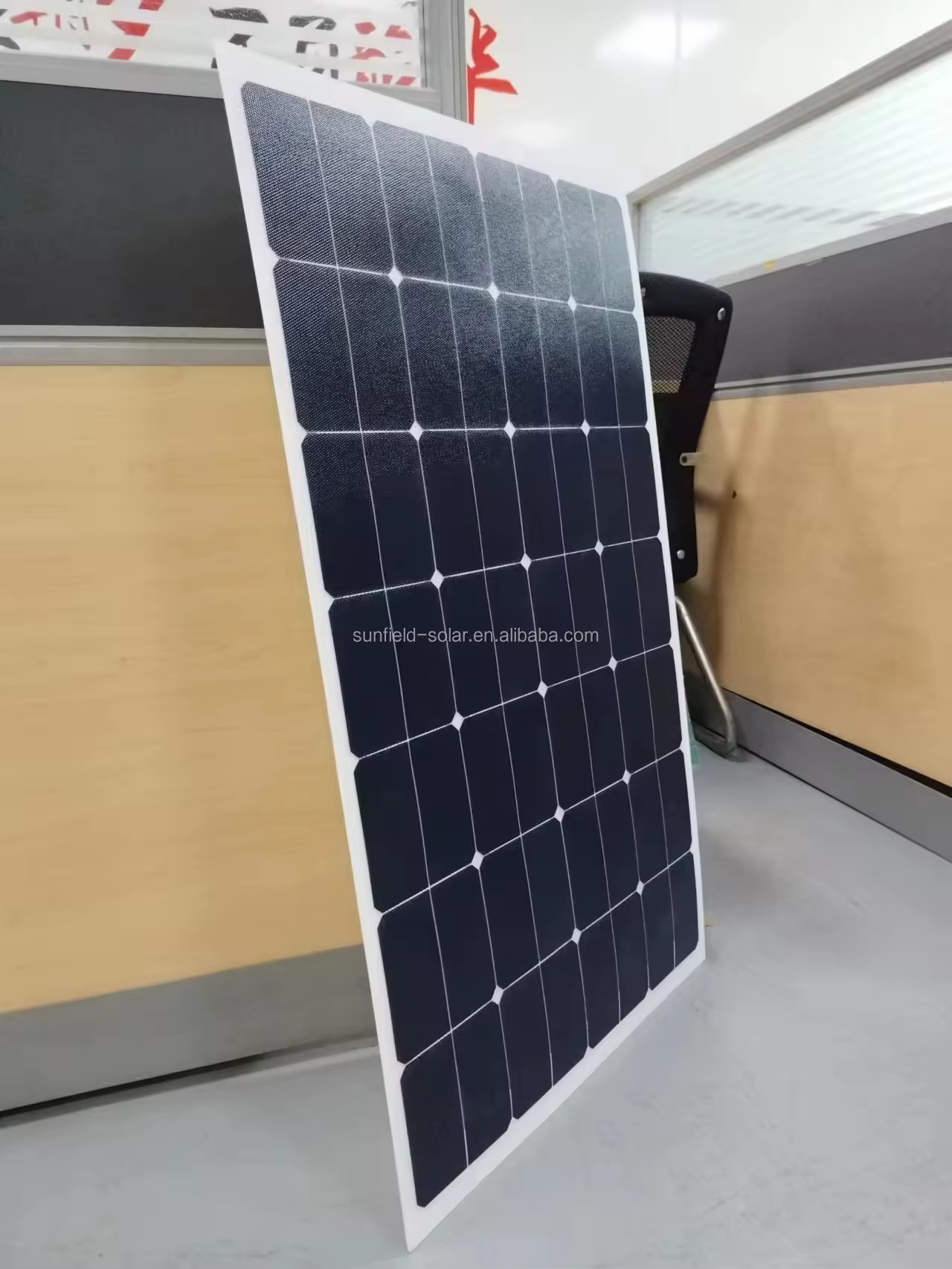

Flexible Solar Panel Angle View

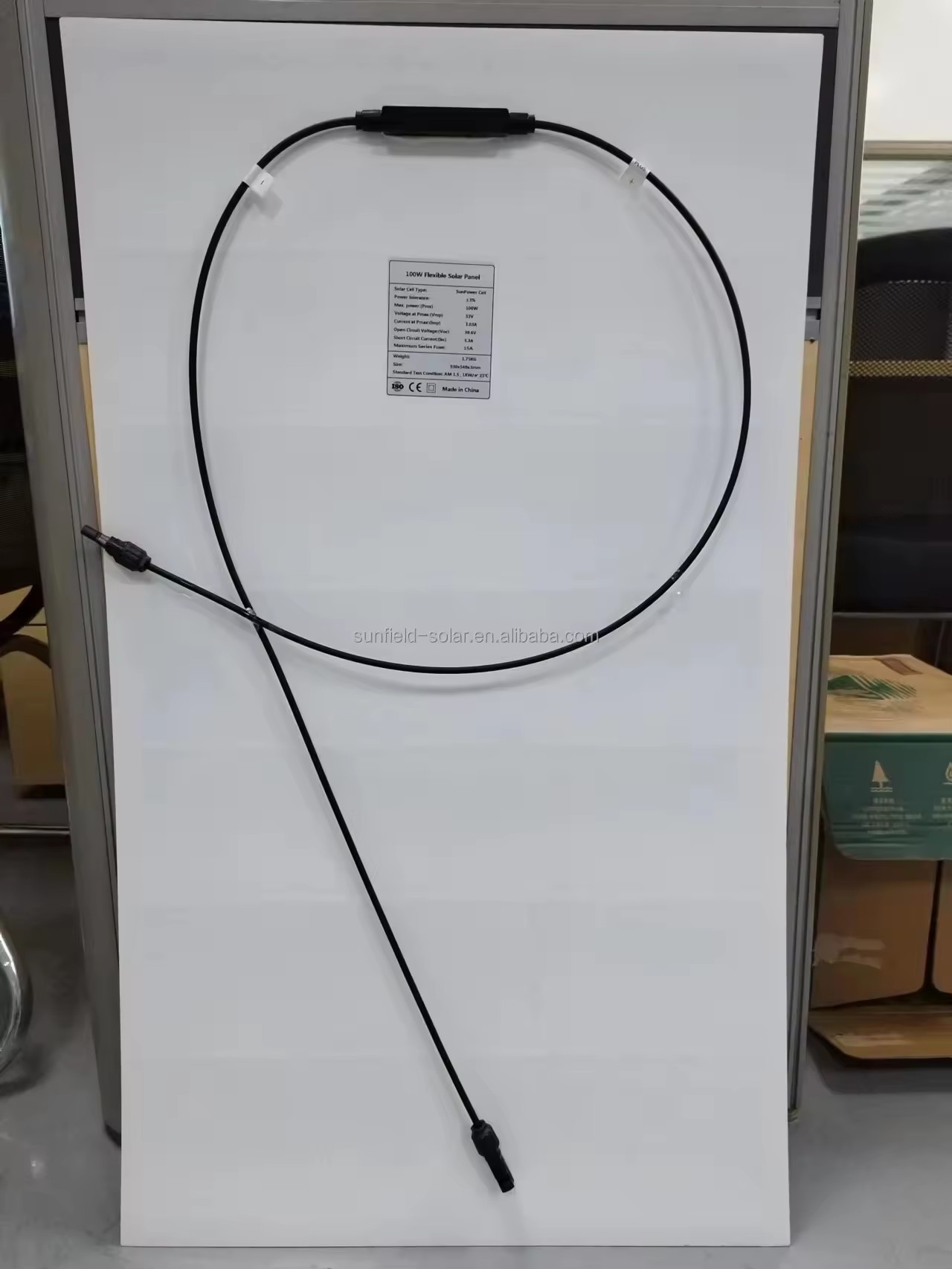

Flexible Solar Panel Back View
Product Details

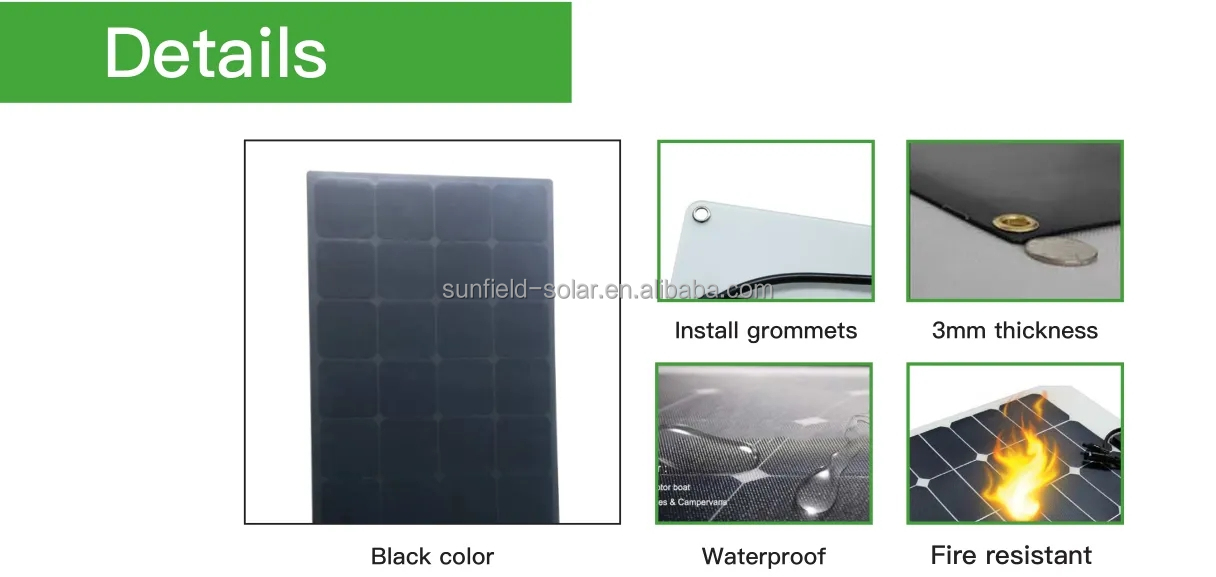

Flexible Solar Panel Detail Design
Product Features
  • Flexibility: Can be bending angle up to 30-40 degrees.
  • Durable with TPT back sheet, no glass, no frame.
  • Light Weight: Easy carrying & shipment and installation, 83% lighter than normal rigid panel.
  • Thin: Thickness is only 2.5mm, which is more suitable to your yacht or RV roof, boat etc.
  • Can be stepped on it with soft soled shoes.
  • High Conversion Efficiency: Efficiency can reach 24% max, made by back-contact mono SunPower solar cells.
  • High Power Output: 30% higher than market solar panels, steady perfect generate power performance.
  • Round corners to prevent from being scratched.
  • Long Lifetime: 10 years at least by using the ETFE film as front cover.
  • Convenient Mounting: Can be installed with glue, adhesive, screws, or grommets at the corners.
  • Widely Used: Golf cars, yachts, boats, caravans, electric cars, travel tourism cars, patrol cars, roofs, camping, roof power generations, tents, portable bags, backpacks, portable generator kits etc.

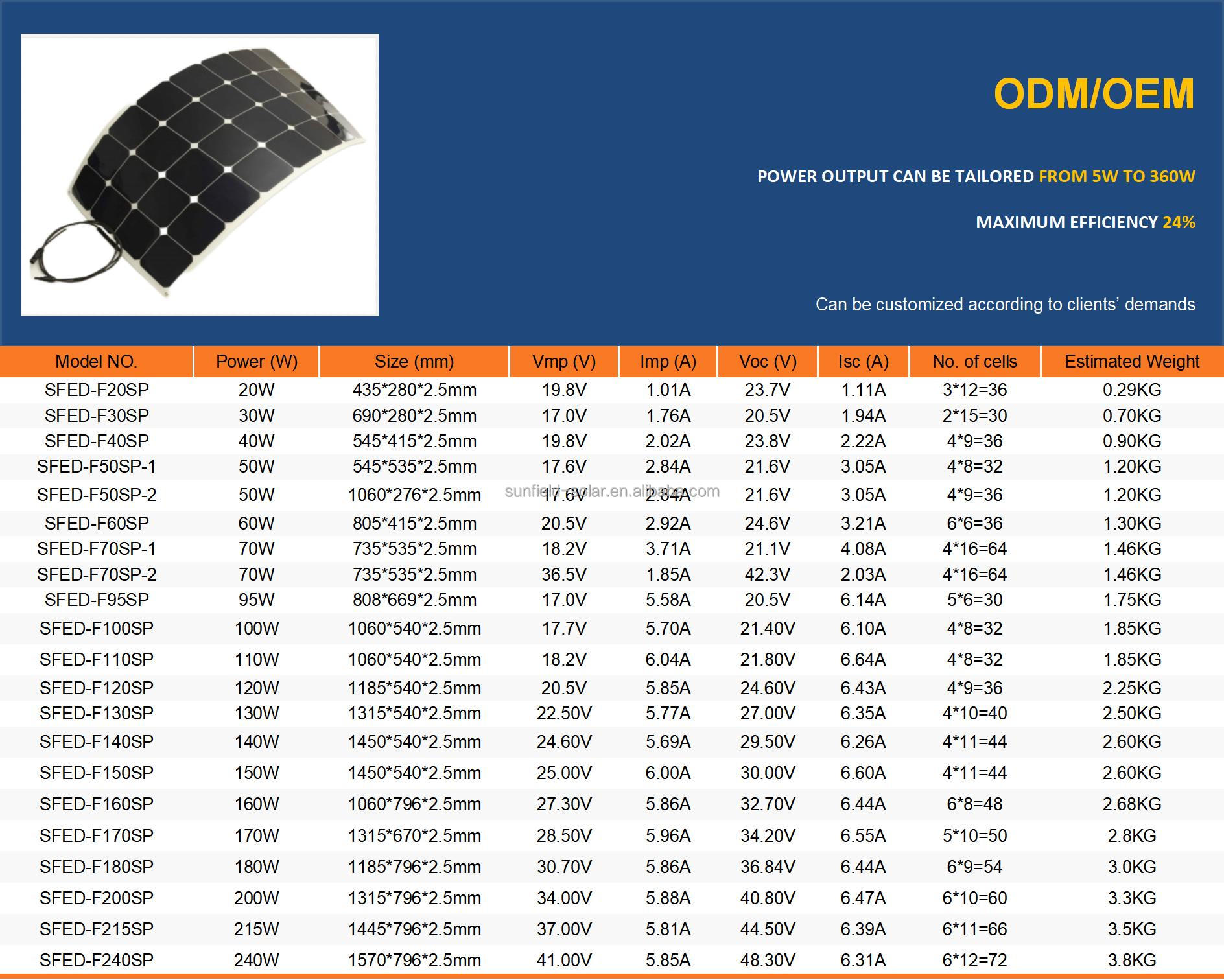

Flexible Solar Panel Application Demo
Installation Instructions

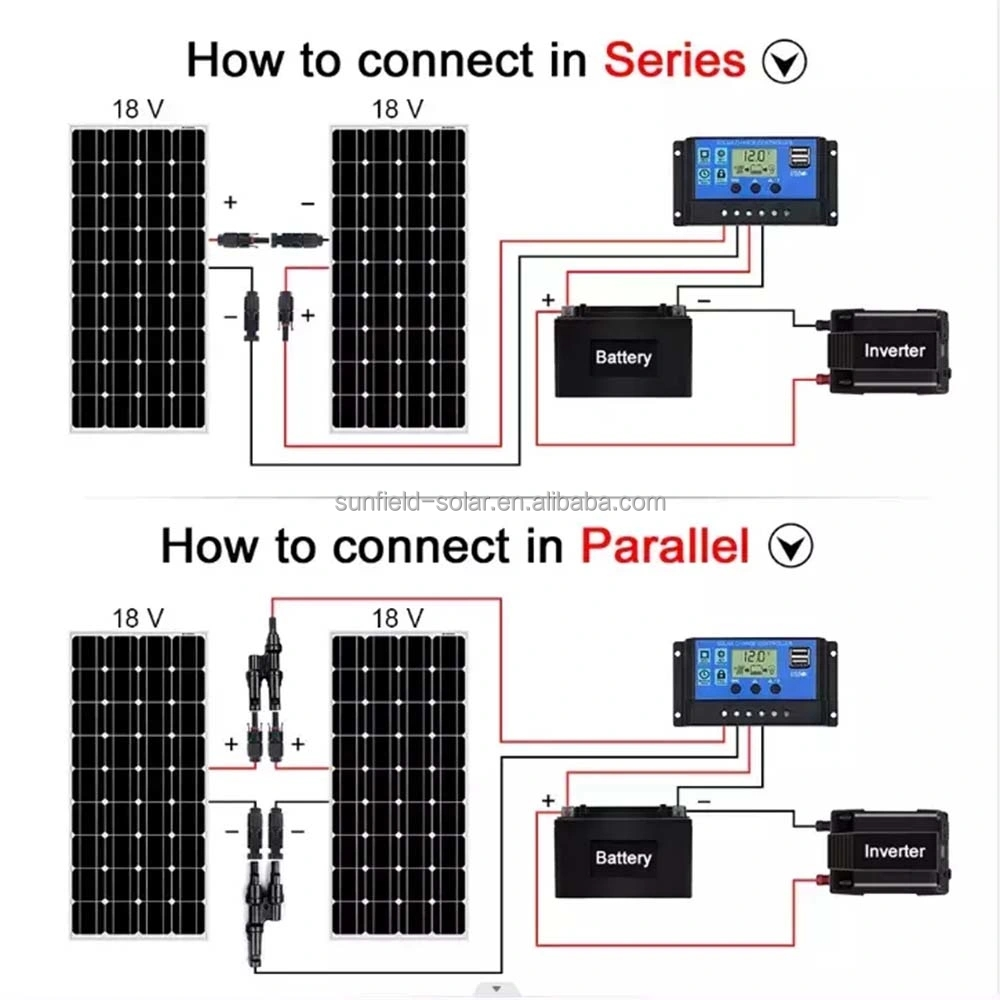

Installation Process Diagram
Product Applications
Flexible solar panels can be widely used in car, electric vehicles, RVs, yachts, backpacks, tents, lamps, bus stations and other fields as long as there is sunshine, you can use it.

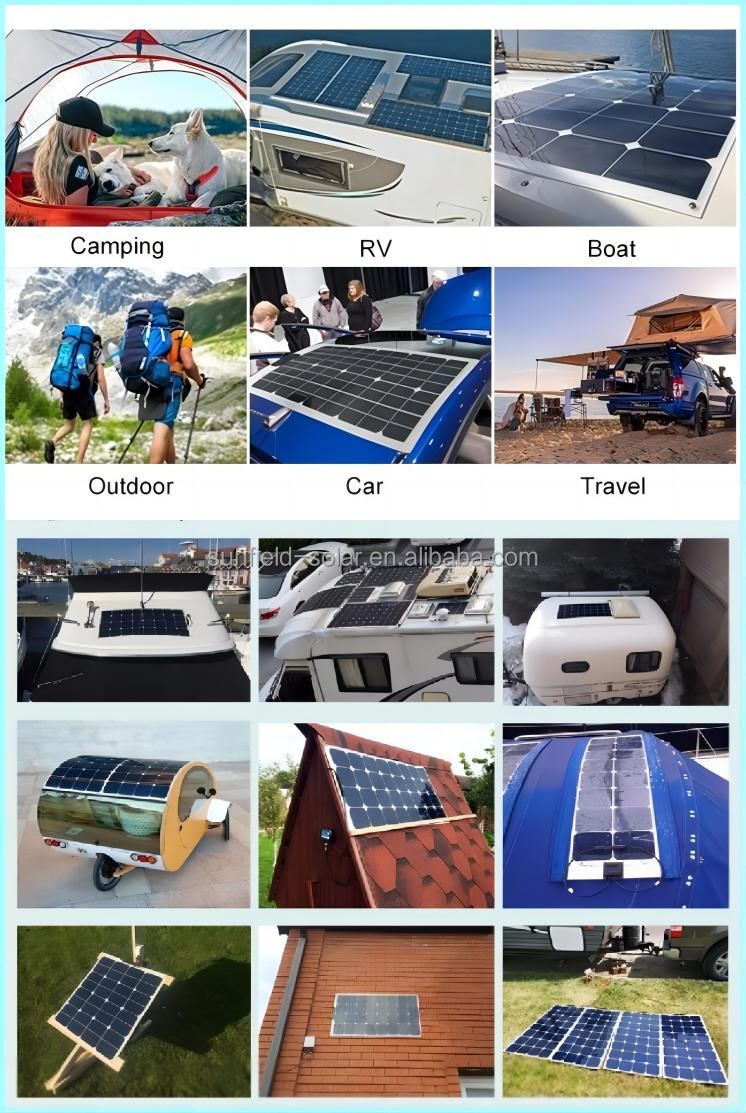

Solar Panel Application Scenarios
About Us
Established: Year 2015
Type of company: Factory/Manufacturer
Main Products: Glass type mono and poly solar panels, flexible solar panels, portable folding solar chargers, PET laminated solar panels, small solar generators.
Solar cells used: USA SunPower back contact solar cells, Hetero-junction cells, Perc cells...
Certificates: ISO, CE, ROHS, UKCA.

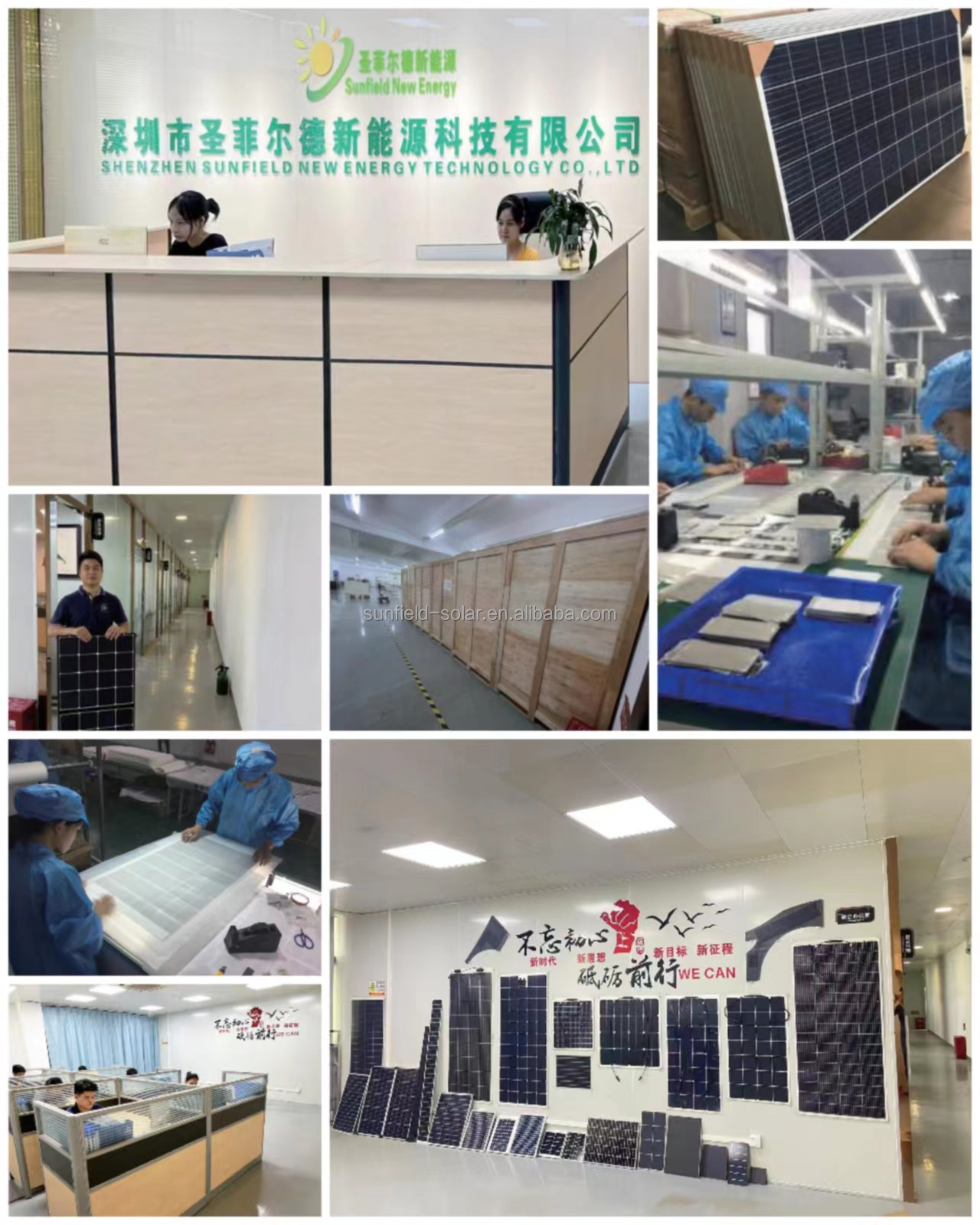

Factory Overview
Our Certifications
Certifications Display
Production Process

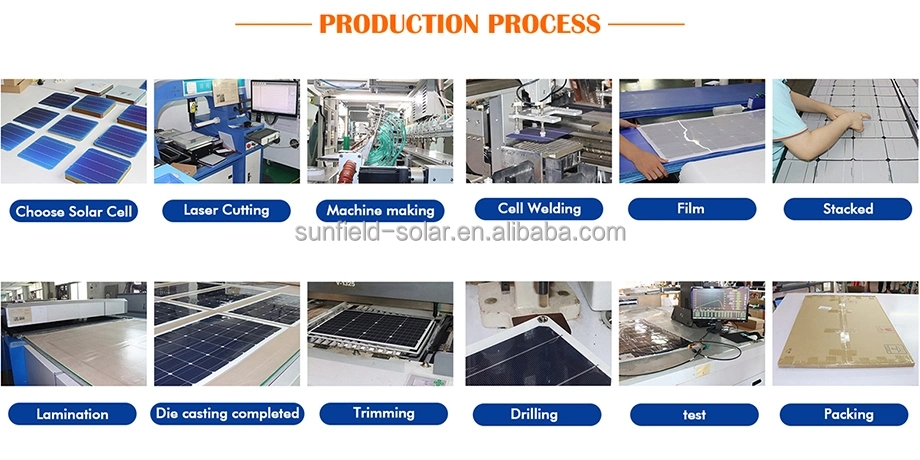

Production Process Flowchart
Packing & Delivery
Packing
Your goods will be treated well before shipment. Packed by Carton box and wooden pallet, or wooden case.
Safe Carton and Wooden Packaging
Delivery
- For big amount of quantity, your goods will be shipped by Sea.
- For small quantity or sample, your goods will be shipped by Courier.
Logistics and Delivery
FAQ

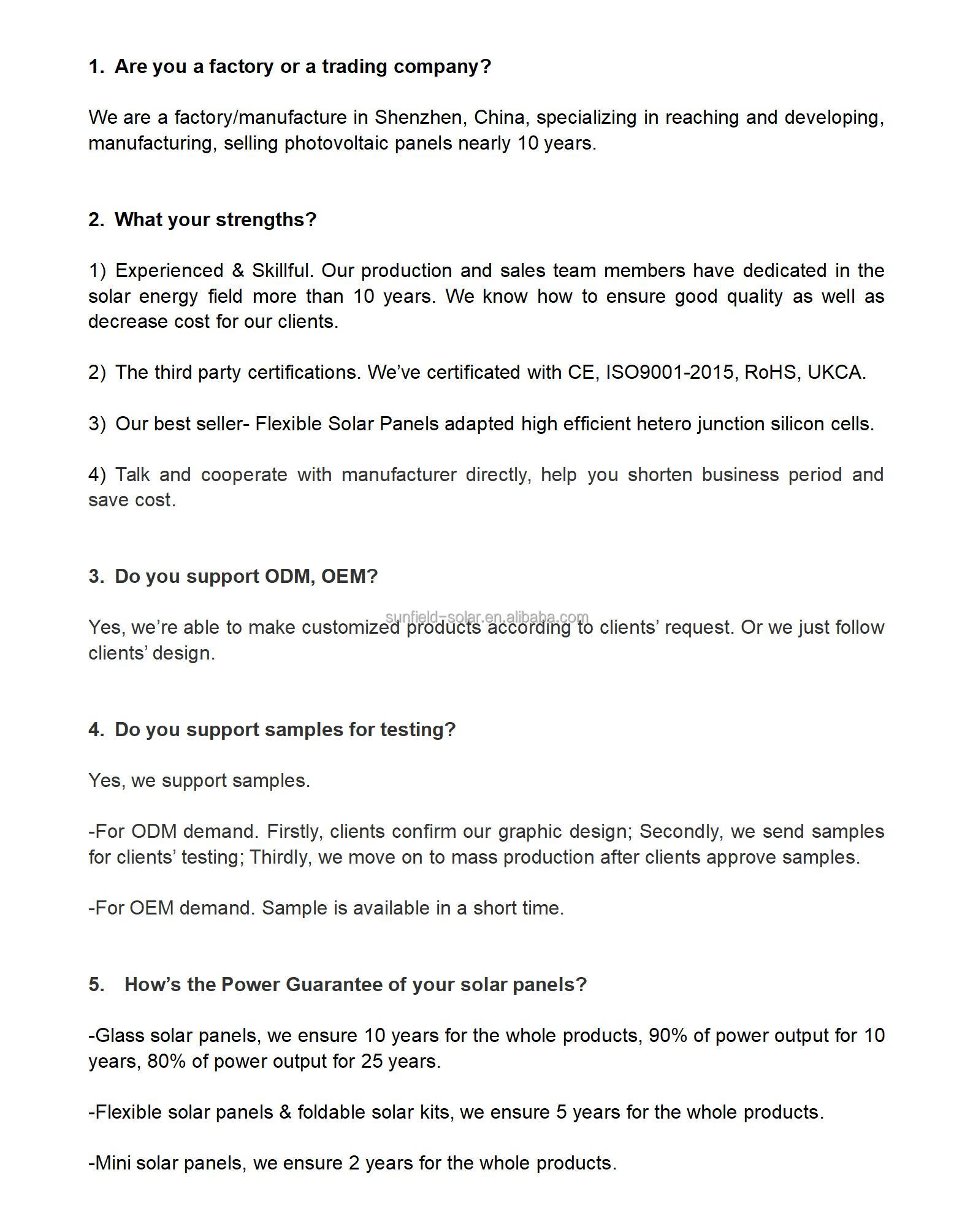

Frequently Asked Questions Section
What is the bending capability of this flexible solar panel?
This flexible solar panel can bend up to a 30 to 40-degree angle, making it easy to mount on curved surfaces such as yacht decks, RV roofs, caravans, and tents.
Can I step on the flexible solar panel?
Yes, these panels are designed to be walked on using soft-soled shoes, as they use durable SunPower back-contact solar cells with a rugged TPT backing sheet without glass or metal frames.
How does the efficiency of these cells compare to standard panels?
These panels utilize USA SunPower cells, achieving a high cell efficiency of up to 23% - 24%. This is about 30% higher than traditional market solar panels.
How do I mount and install the panel?
The panel supports multiple convenient mounting options: you can secure it using adhesive, glue, screws, or grommets provided at the corners.
Is this solar panel weather-resistant and durable?
Yes, it features an IP67 junction box and an ETFE front cover film. This design ensures waterproof capability, handles temperatures ranging from -40°C to +85°C, and offers a lifetime of at least 10 years.
