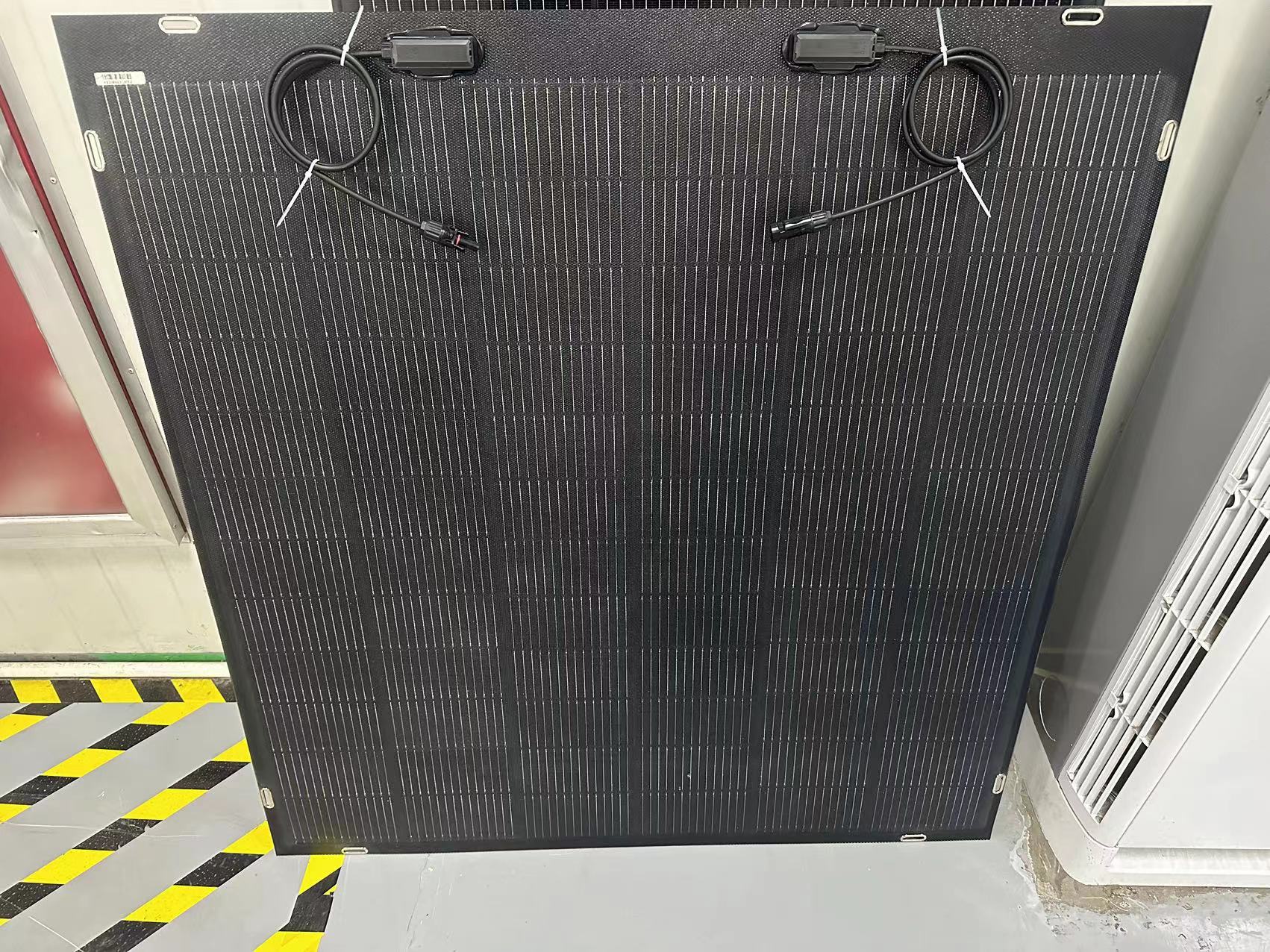

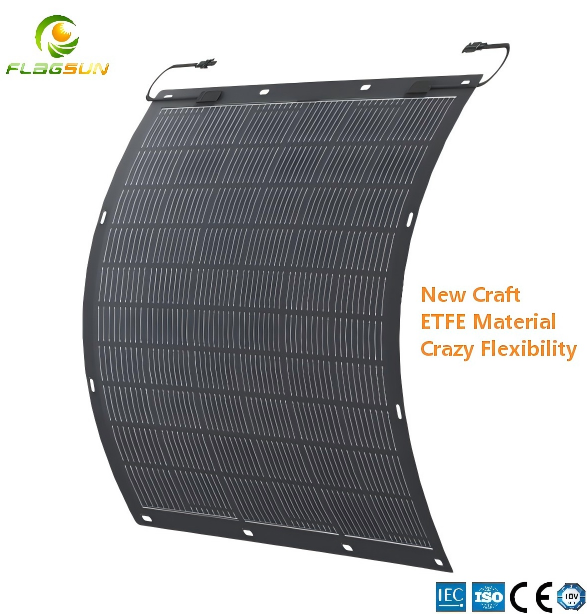

Product Specifications
| Electrical Characteristics |
| Model |
FFSP-200W-FB |
| Maximum Power at STC (Pmax) |
200W |
| Optimum Operating Voltage (Vmp) |
19.8 V |
| Optimum Operating Current (Imp) |
10.10 A |
| Open - Circuit Voltage (Voc) |
23.36 V |
| Short - Circuit Current (Isc) |
11.11 A |
| Cell Efficiency |
21.5% above |
| Power Tolerance |
0~+3 % |
| Operating Module Temperature |
-20°C to +50°C |
| Maximum System Voltage |
1000V DC(IEC)/600V DC(UL) |
| Maximum Series Fuse Rating |
15A |
| Mechanical Characteristics |
| Solar cell |
Monocrystalline TOPCON |
| No.of Cells |
72 |

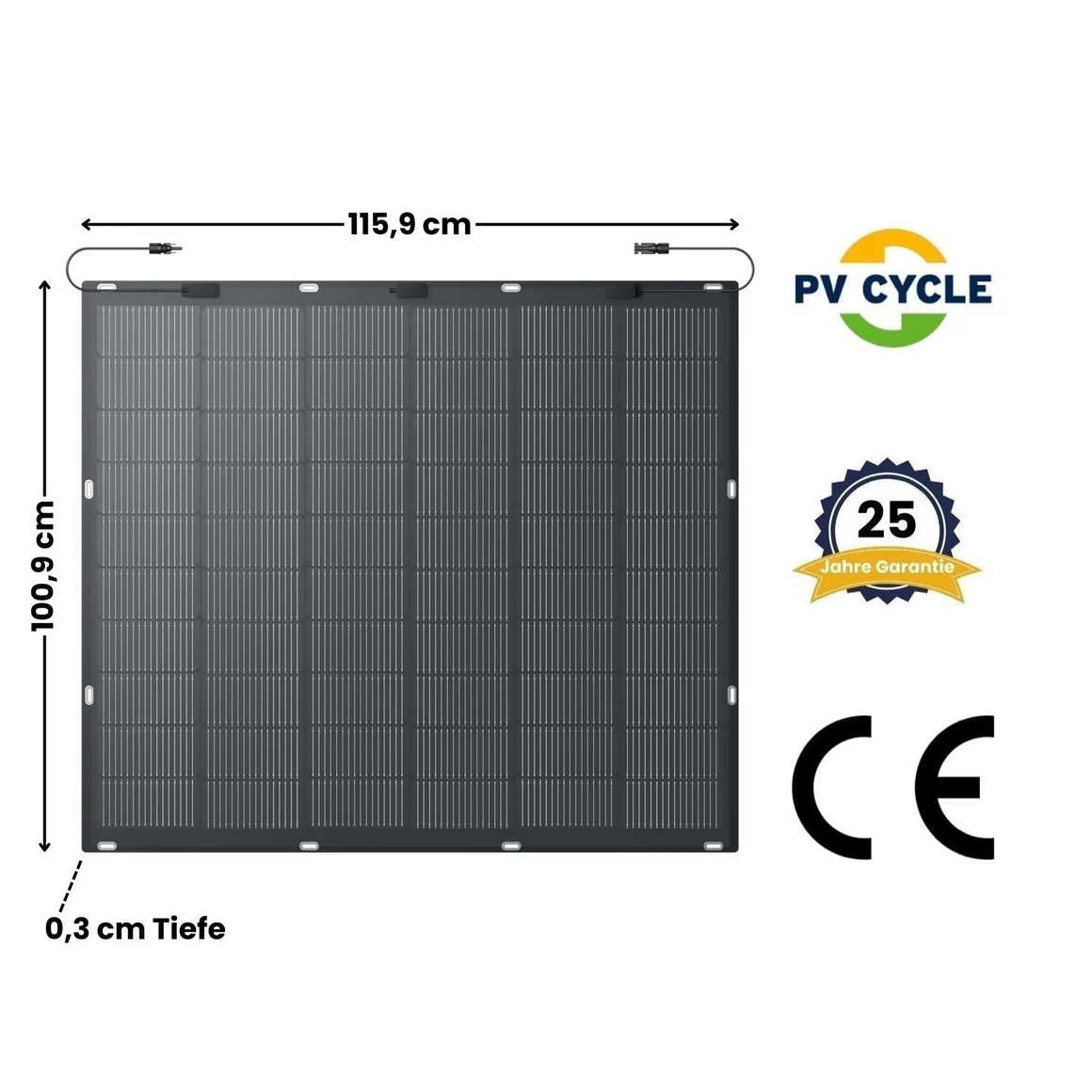

| Dimensions |
1150*1000*3 mm |
| Weight |
4.75 kg |
| Front Glass |
ETFE |
| Frame |
N/A |
| Junction Box |
IP67 rated |
| Output Cables |
TUV(2Pfg1169:2007), UL 4703, UL 44 Optional, 4.0 mm², symmetrical lengths (-)1000mm and (+)1000mm |
| Connectors |
SOLAR MC4 integrated twist locking connectors |
| Temperature Characteristics |
| Nominal Operating Cell Temperature (NOCT) |
25±2°C |
| Temperature Coefficient of Pmax |
-0.44 %/°C |
| Temperature Coefficient of Voc |
-0.33 %/°C |
| Temperature Coefficient of Isc |
0.055 %/°C |
About Our Solutions
We have been a global supplier of renewable energy solutions since 2008, mainly offering solar systems, solar panels, PV inverters, controllers, solar lights, application products, cables, etc.
With advanced production equipment and strict quality control, we commit to offer reliable products at competitive costs, meanwhile we keep on designing and developing solar power solutions ahead of customer needs.
Through continuous innovation, we try to reduce manufacturing costs of solar electricity and improve solar energy technology to provide more green power for the world. Currently all of our products have been certified by CE, TUV, MCS, CEC and ISO9001, ensuring customers can use our products without any worry.
We seek every chance to have long term partnership and cooperation as well as collaborative development with our suppliers and customers.
Driven by our competence in solar energy and global shipping capabilities, we are willing to take responsibility for our green planet, promoting harmonious development for humanity, society and nature.
We sincerely invite you to create new energy for the next generation and build a green home for mankind forever.
Reliable Warranty
12 Years Quality Warranty: If any panel quality problem is found, we will replace it with a new panel promptly.
25 Years Power Warranty: Guaranteed output of over 90% for the first 10 years, and over 85% up to 25 years.
Verified Supplier Capabilities
- Supply chain management from raw materials to completed systems.
- One-stop warehouse for diverse renewable energy products.
- Project construction, financing, and maintenance options.
- Regular supplier audits and rigorous pre-shipment quality inspections.
- Efficient logistics and storage arrangements.

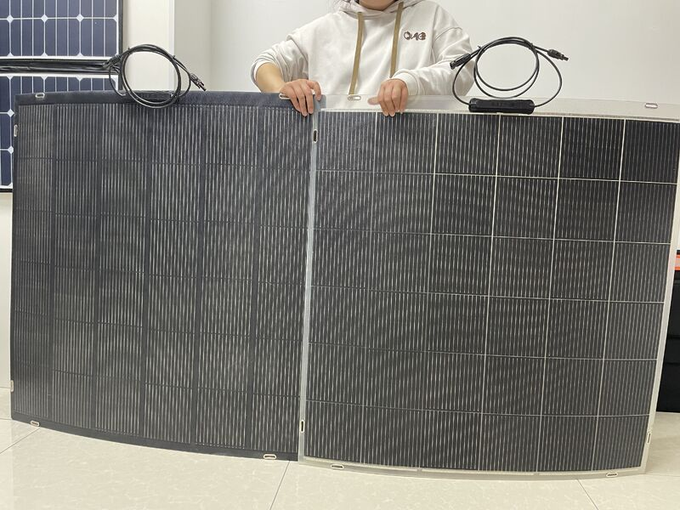

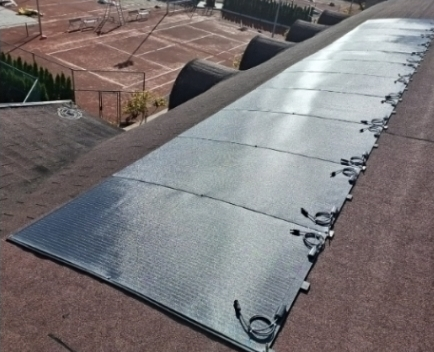

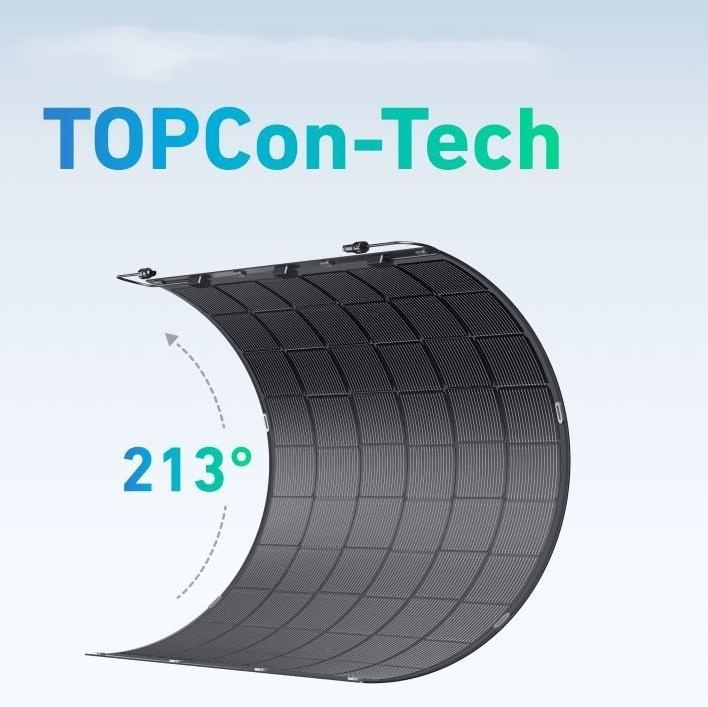

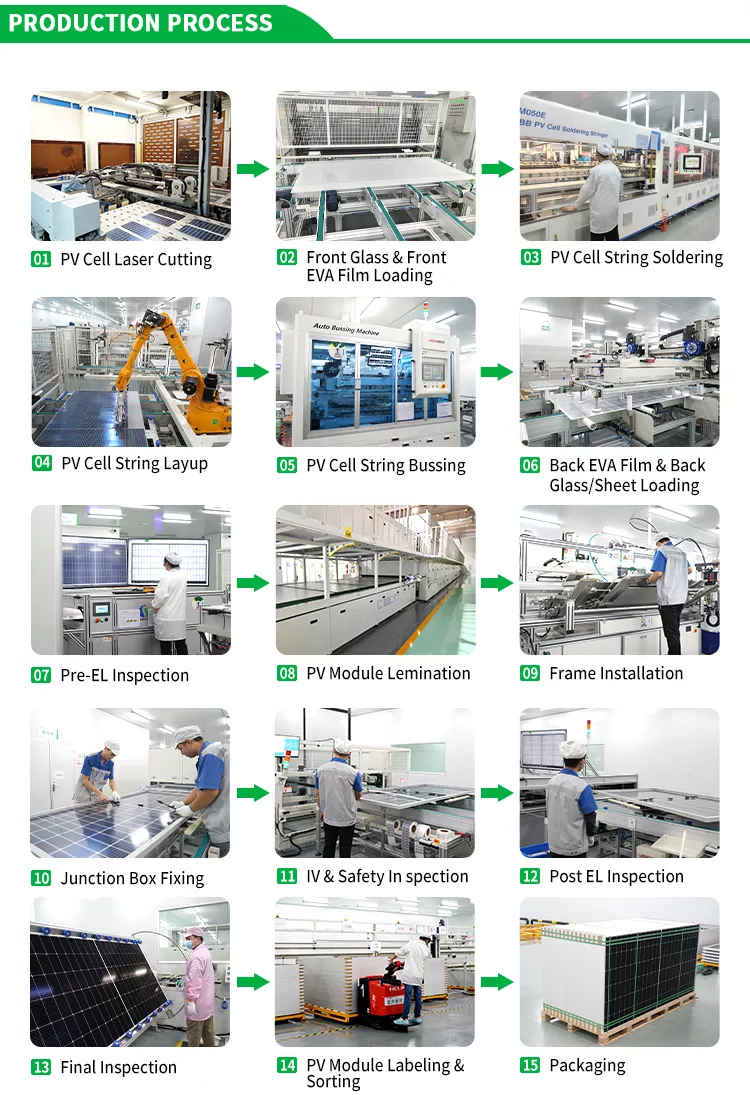

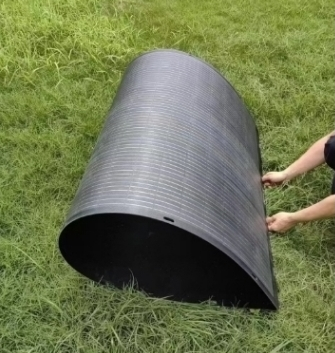

Product Performance & Details
Why Choose Us
✓ Vertically integrated production for strict quality control
✓ Professional technical support for satisfactory service
✓ Strong partnership for long-term cooperation

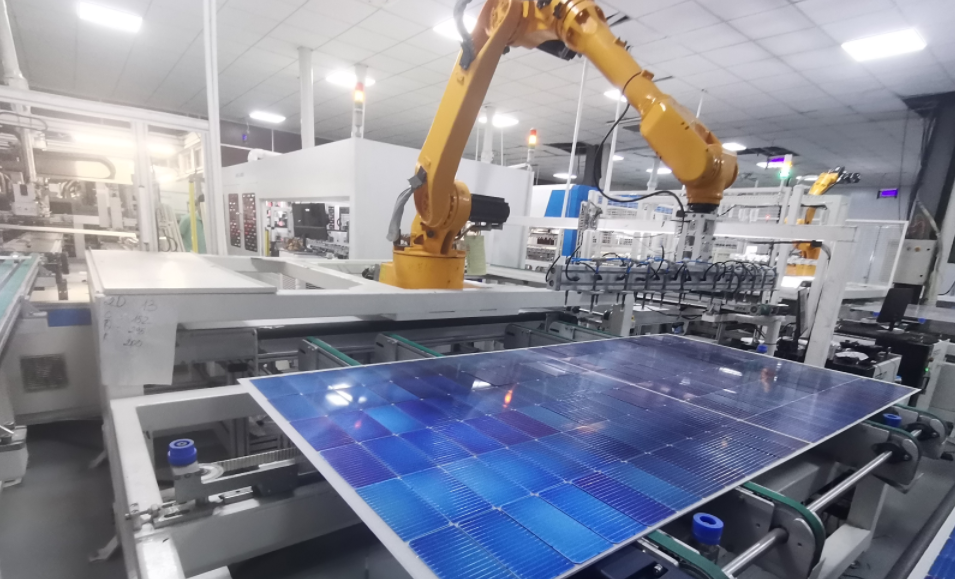

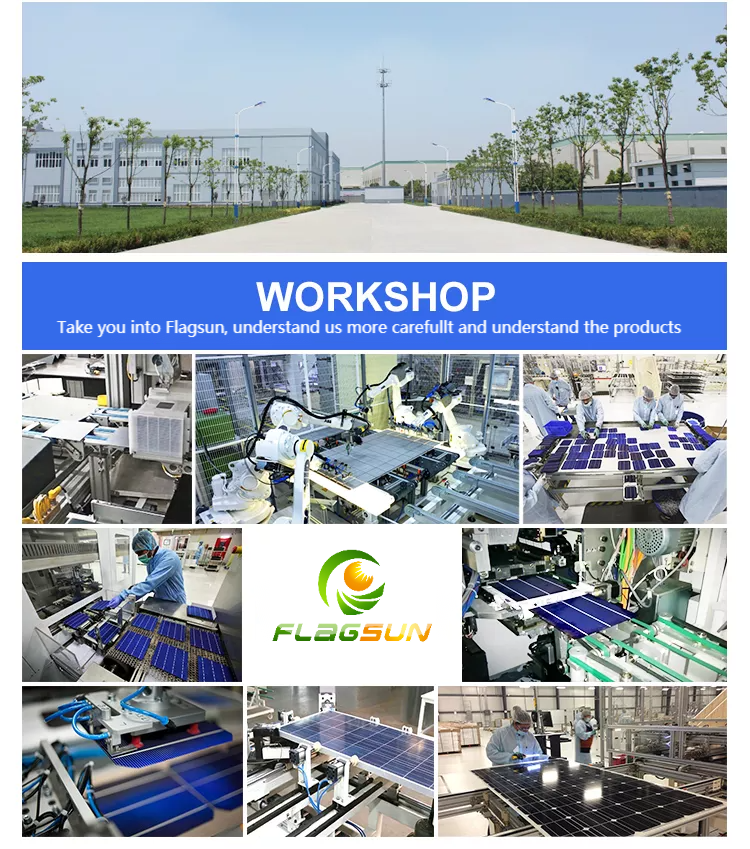

✓ Automatic production facility to ensure reliable products

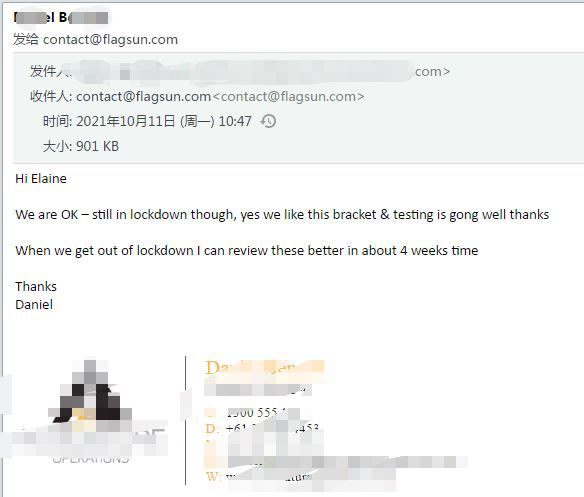

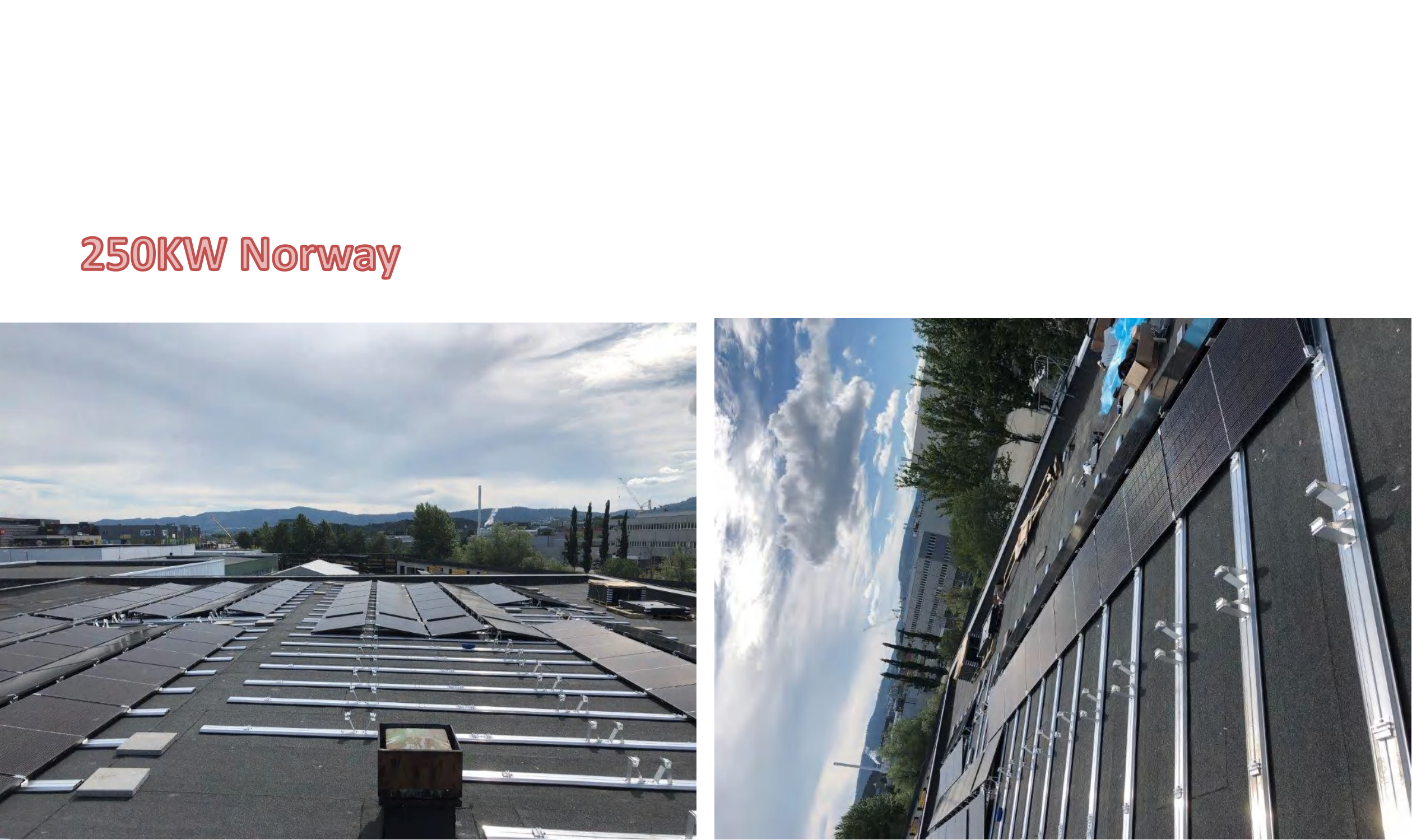

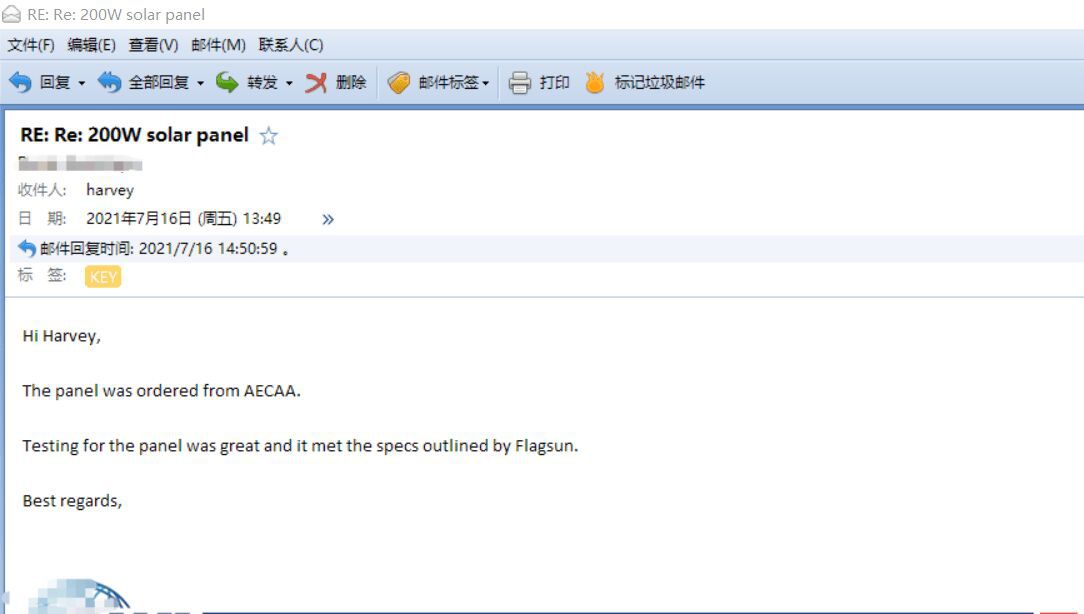

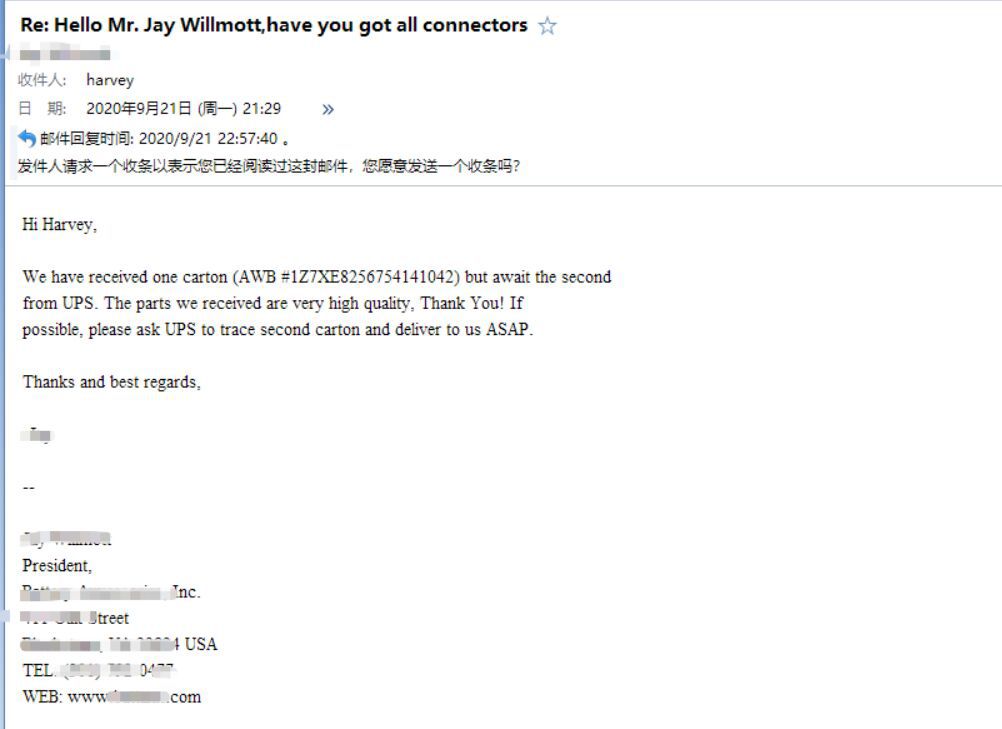

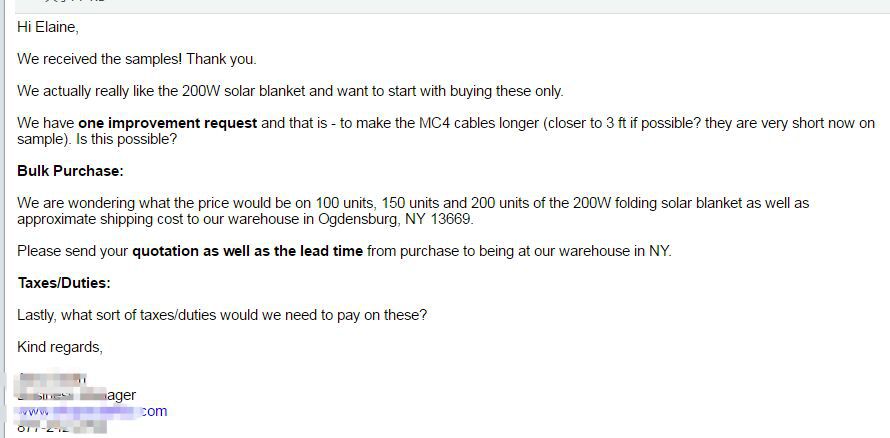

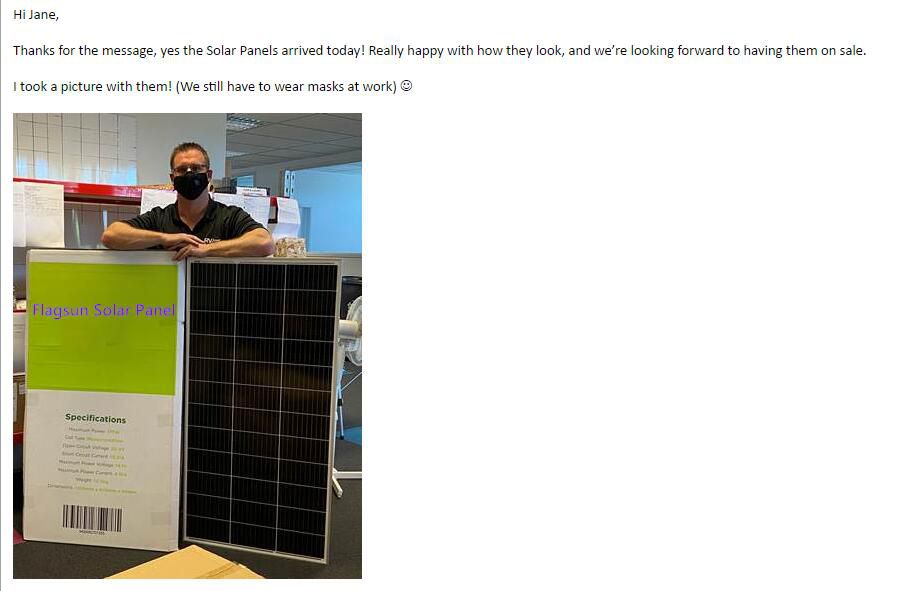

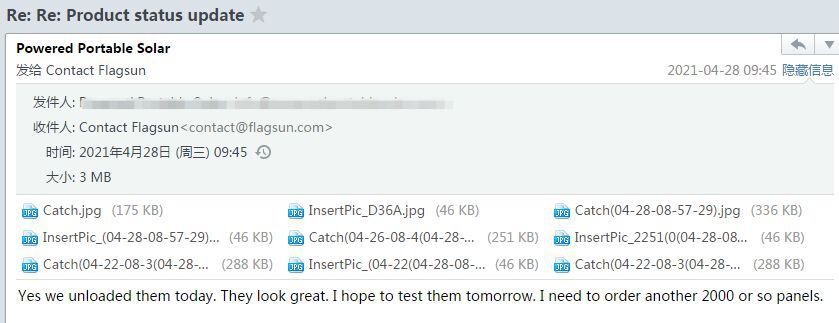

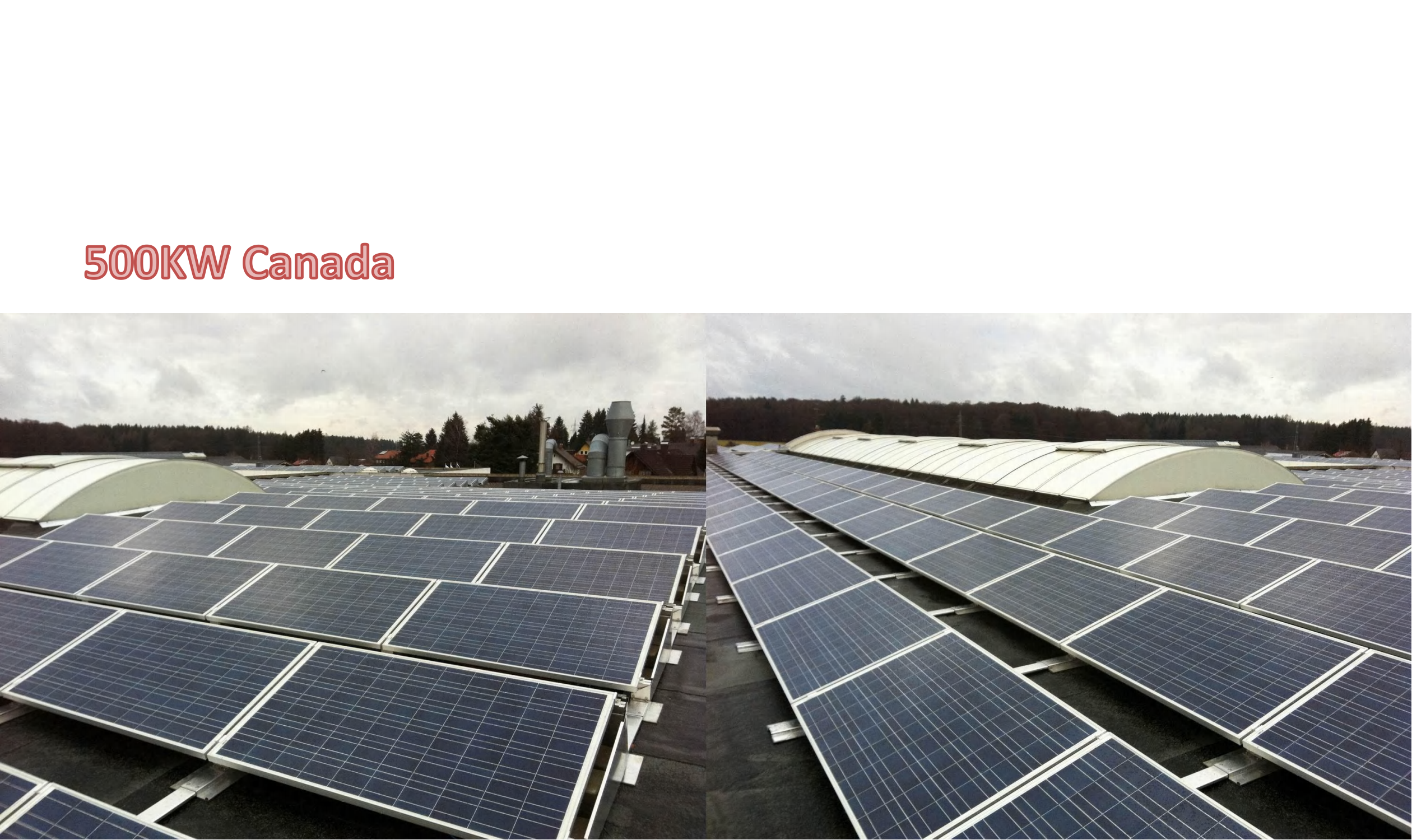

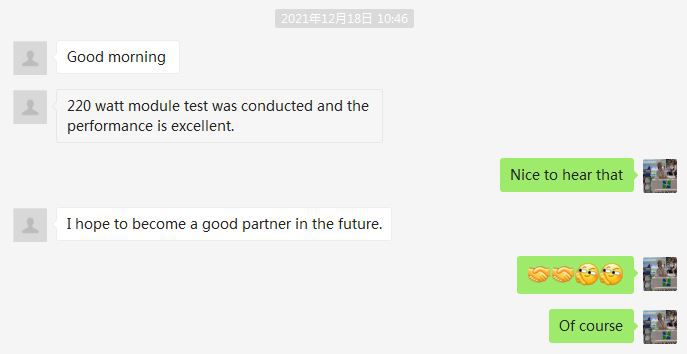

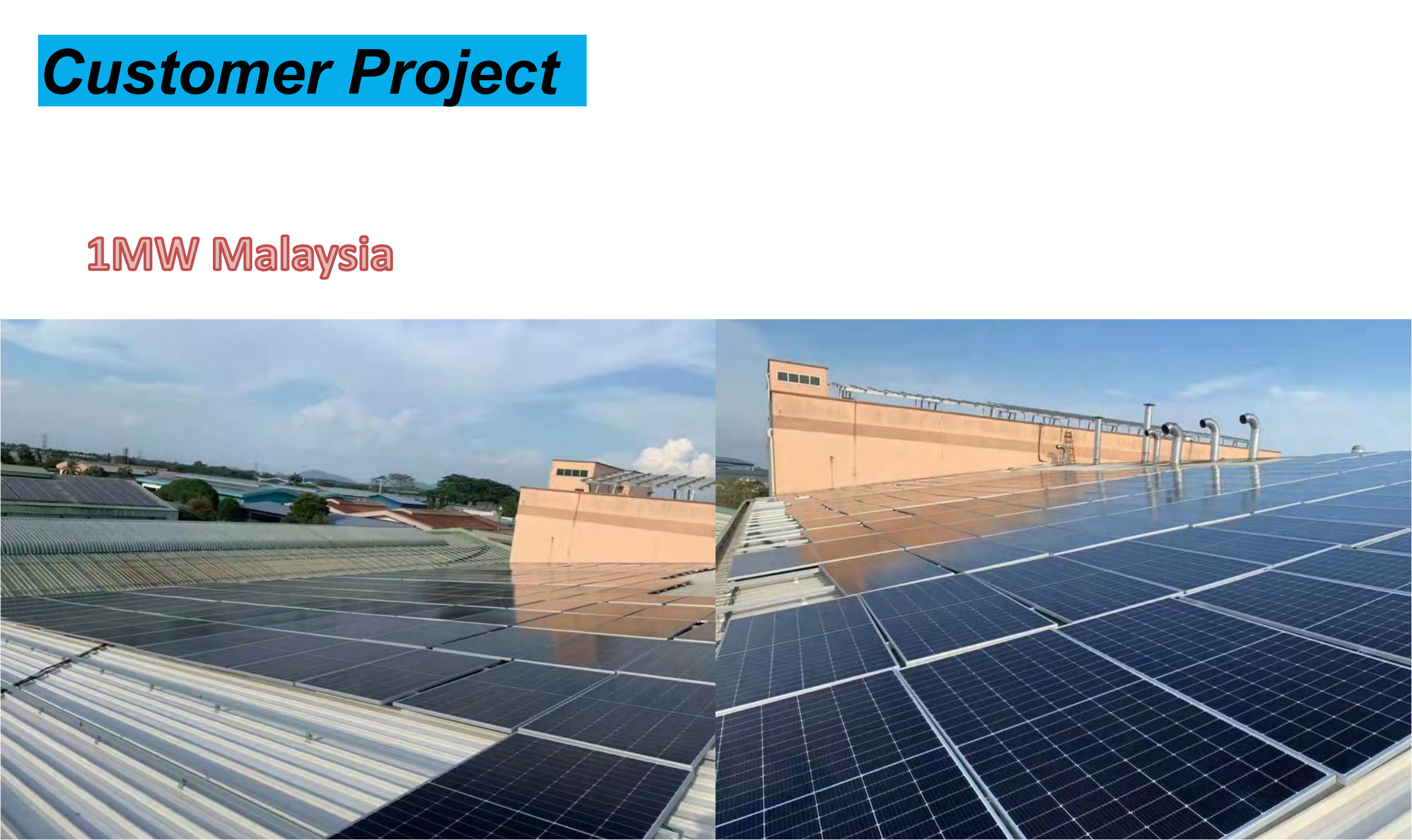

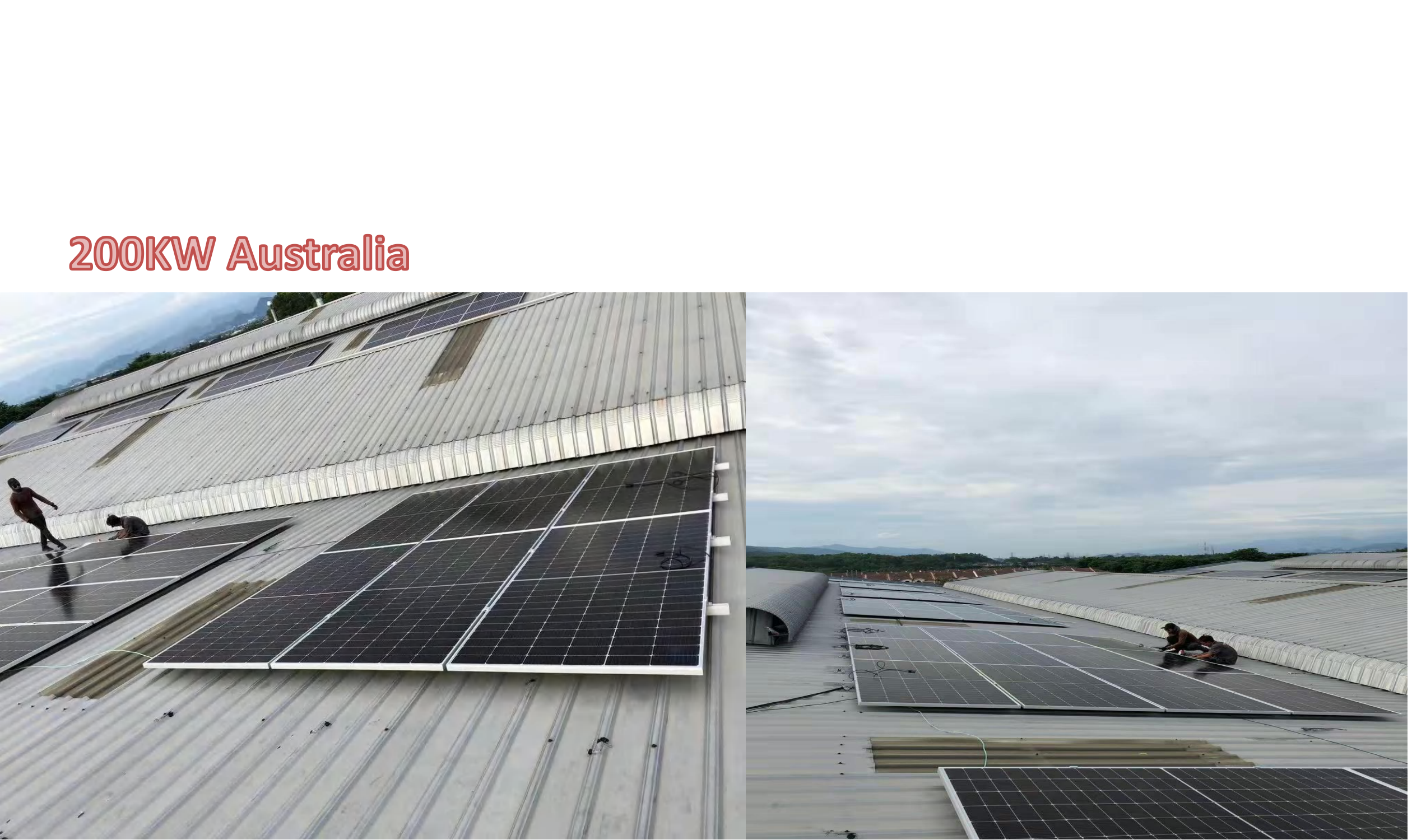

Customer Feedback

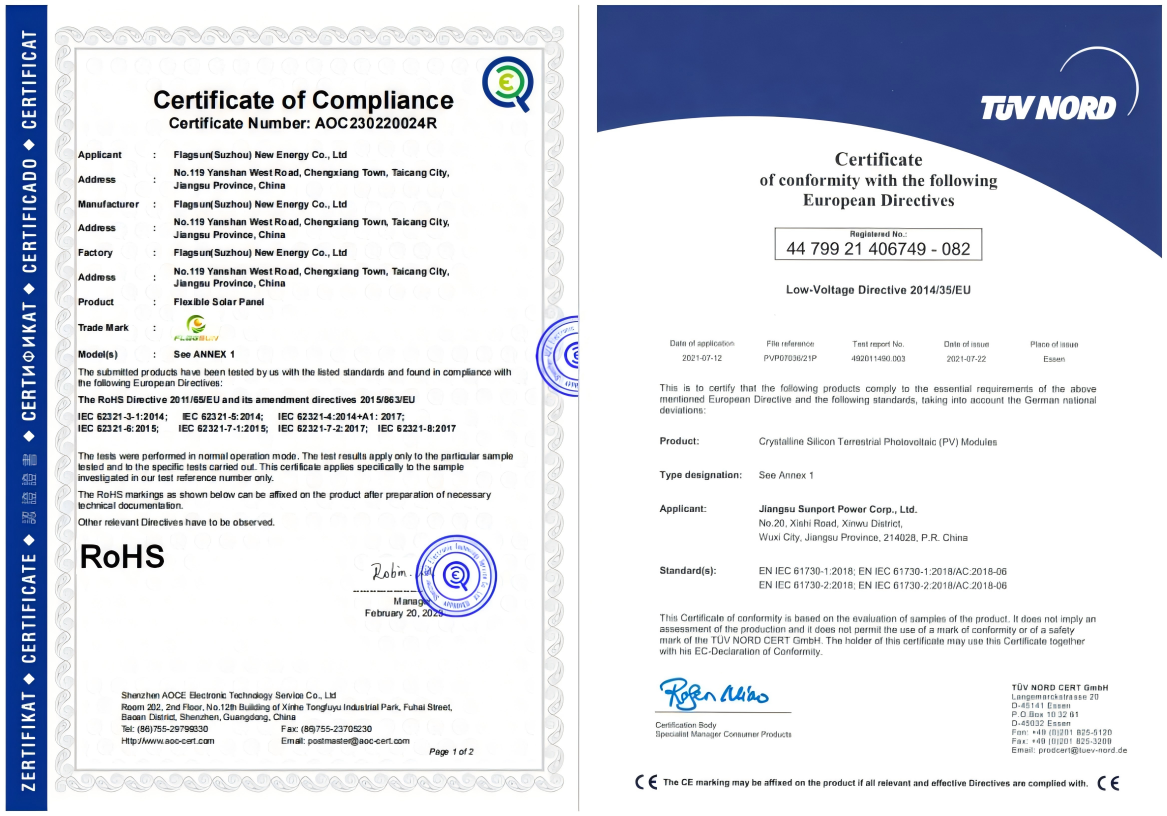

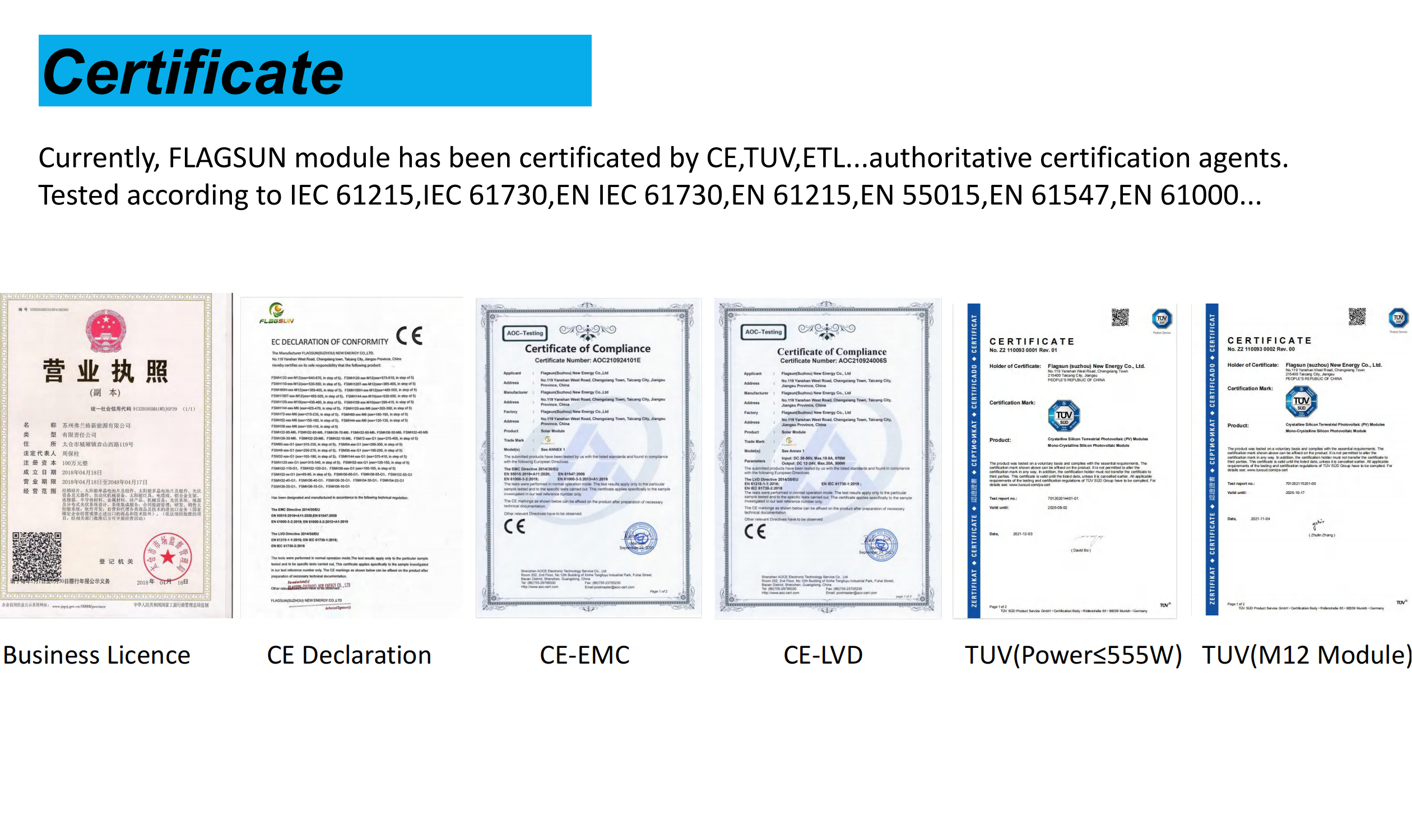

Certifications

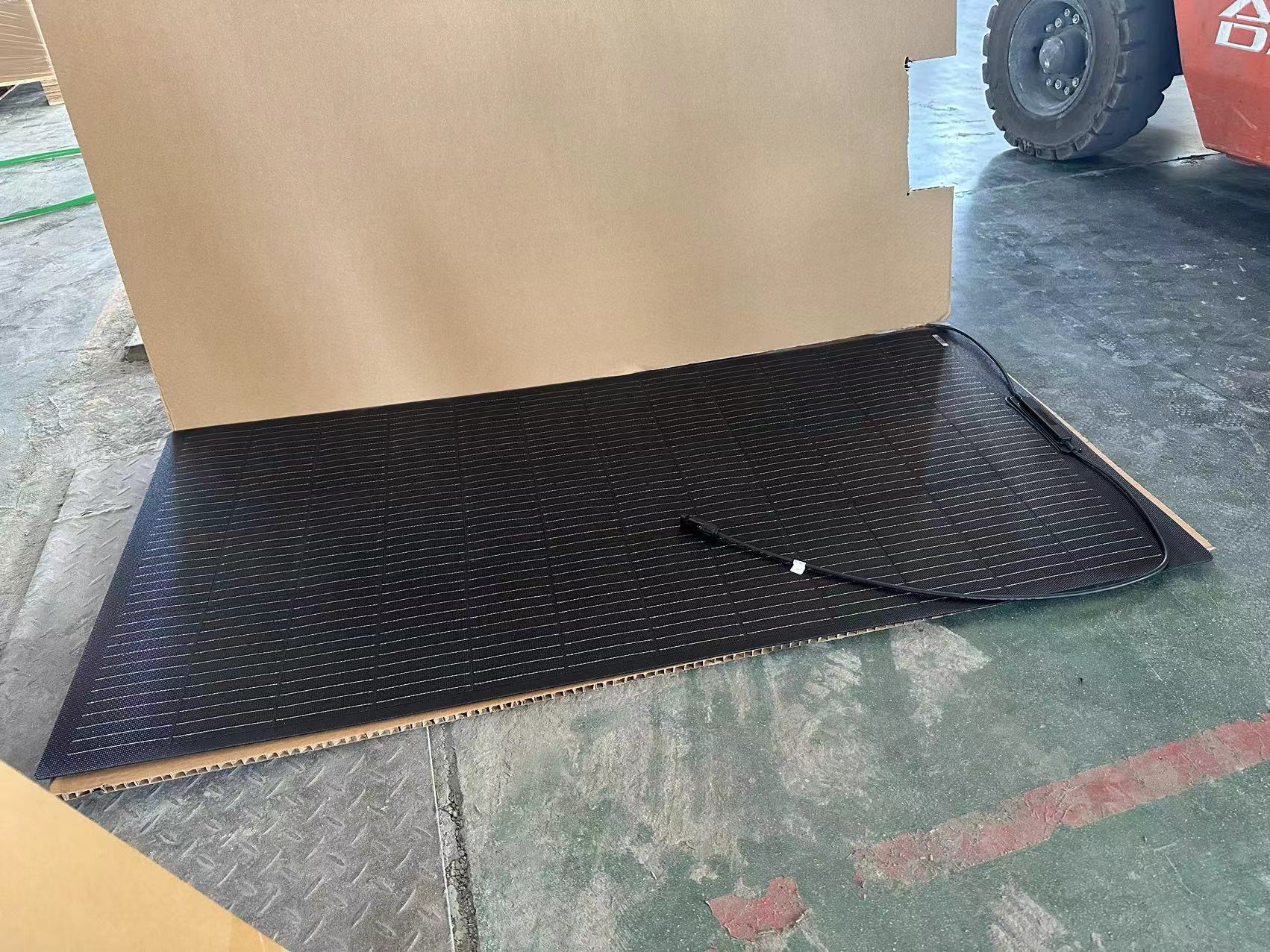

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q
Do you support Ready To Ship, OEM & ODM?
Yes, we are a manufacturing factory. We support low MOQ requirements for customization and can modify products based on your specific requirements.
Q
What are your production and technical advantages?
We feature a highly experienced, dedicated R&D team and operate advanced manufacturing facilities spanning thousands of square meters to ensure production precision and scalability.
Q
How do you guarantee product quality?
We enforce strict quality control measures, including pre-production testing of samples and complete final inspections prior to packaging. All of our products hold key international certifications like CE, TUV, and ISO.
Q
How should I select the right solar product for my needs?
Please feel free to share your specific application requirements, system voltage, and local weather patterns. Our engineering support team will recommend the most suitable configuration.
Q
What warranties are provided on your solar panels?
We provide a comprehensive 12-year quality warranty covering manufacturing defects, along with a 25-year linear power warranty guaranteeing over 90% power output at 10 years and over 85% at 25 years.
Q
Are the solar panels compatible with standard mounting structures and accessories?
Yes, our solar panels are designed to industry-standard dimensions and specifications, ensuring compatibility with most common solar mounting solutions and MC4 connectors.
