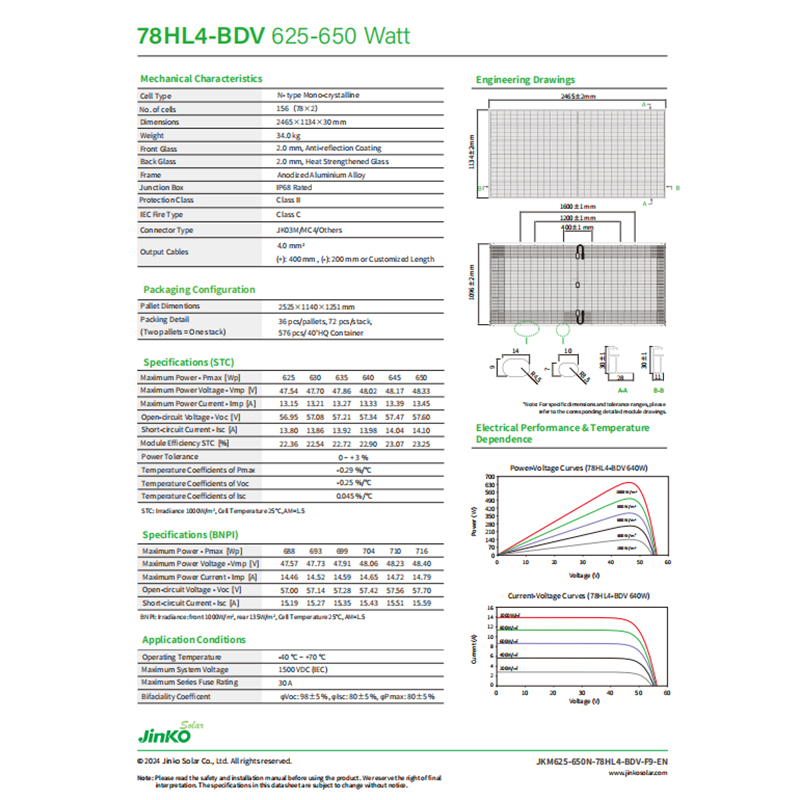

| Mechanical Characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cell Type | N-type Mono-crystalline | ||||||||||
| No. of cells Dimensions | 156(78×2) | ||||||||||
| Dimensions | 2465×1134×30 mm | ||||||||||
| Weight | 34.0 kg | ||||||||||
| Front Glass | 2.0 mm, Anti-reflection Coating | ||||||||||
| Back Glass | 2.0 mm, Heat Strengthened Glass | ||||||||||
| Frame | Anodized Aluminium Alloy | ||||||||||
| Junction Box | IP68 Rated | ||||||||||
| Protection Class | Class II | ||||||||||
| IEC Fire Type | Class C | ||||||||||
| Connector Type | JK03M/MC4/Others | ||||||||||
| Output Cables | 4.0 mm² (+): 400 mm , (-): 200 mm or Customized Length | ||||||||||

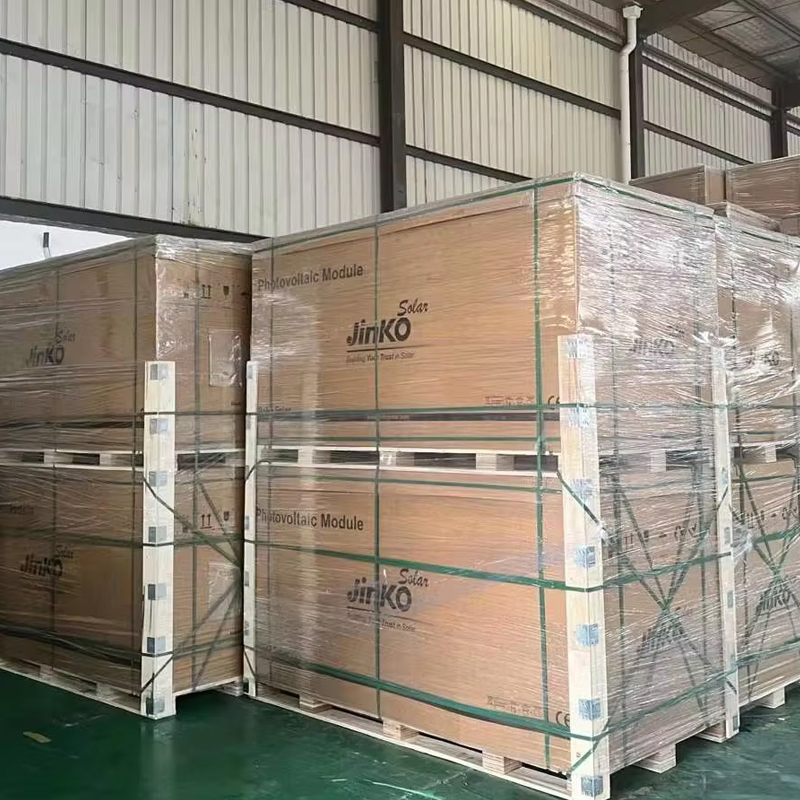

| Packaging Configuration | |||||||||||
| Pallet Dimensions | 2525×1140×1251 mm | ||||||||||
| Packing Detail | 36 pcs/pallets, 72 pcs/stack, 576 pcs/ 40'HQ Container (Two pallets = One stack) | ||||||||||
| Specifications (STC) | |||||||||||
| Maximum Power - Pmax [Wp] | 625 | 630 | 635 | 640 | 645 | 650 | |||||
| Maximum Power Voltage - Vmp [V] | 47.54 | 47.7 | 47.86 | 48.02 | 48.17 | 48.33 | |||||
| Maximum Power Current - Imp [A] | 13.15 | 13.21 | 13.27 | 13.33 | 13.39 | 13.45 | |||||
| Open-circuit Voltage - Voc [V] | 56.95 | 57.08 | 57.21 | 57.34 | 57.47 | 57.6 | |||||
| Short-circuit Current - Isc [A] | 13.8 | 13.86 | 13.92 | 13.98 | 14.04 | 14.1 | |||||
| Module Efficiency STC [%] | 22.36 | 22.54 | 22.72 | 22.90 | 23.07 | 23.25 | |||||
| Power Tolerance | 0 ~ + 3 % | ||||||||||
| Temperature Coefficients of Pmax | -0.29 %/°C | ||||||||||
| Temperature Coefficients of Voc | -0.25 %/°C | ||||||||||
| Temperature Coefficients of Isc | 0.045 %/°C | ||||||||||
