Overview

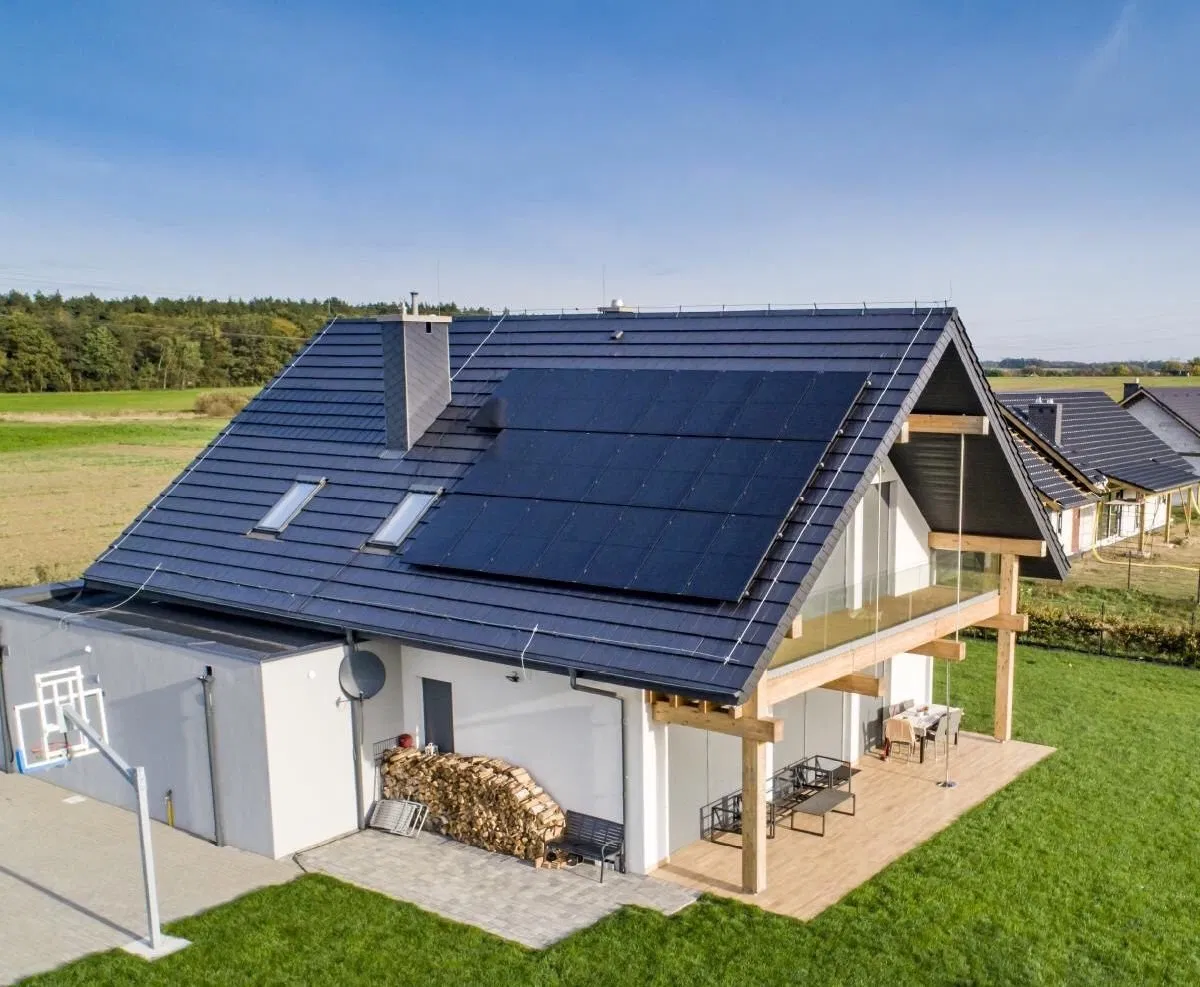

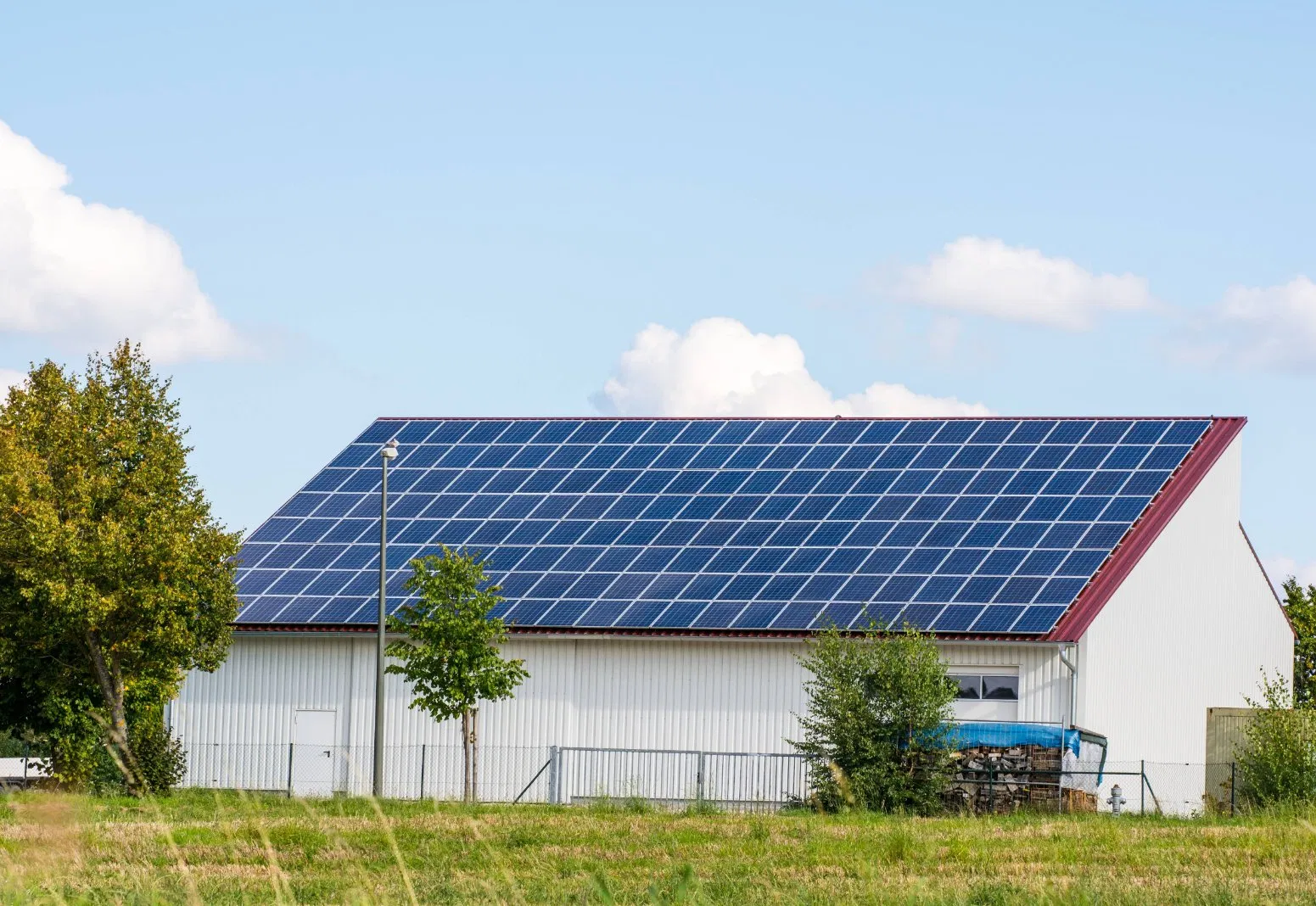

Application
Light Industry Agriculture Industrial
Certification
ISO, CE, TUV CQC
Material
Monocrystalline Silicon
Junction Box
P68, Three Diodes
Glass
Single Glass, 3.2mm Coated Tempered Glass
Frame
Anodized Aluminum Alloy Fame
Hailstone Test
25mm Hailstone at 23m/S
Specification
2278*1134* 35mm
Product Description

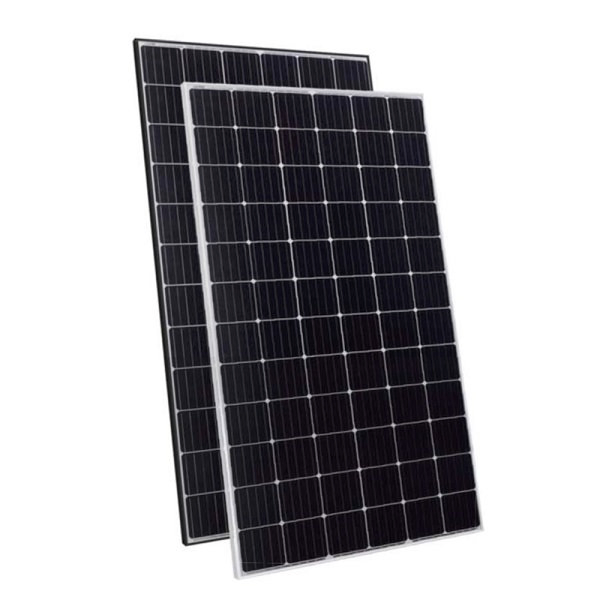

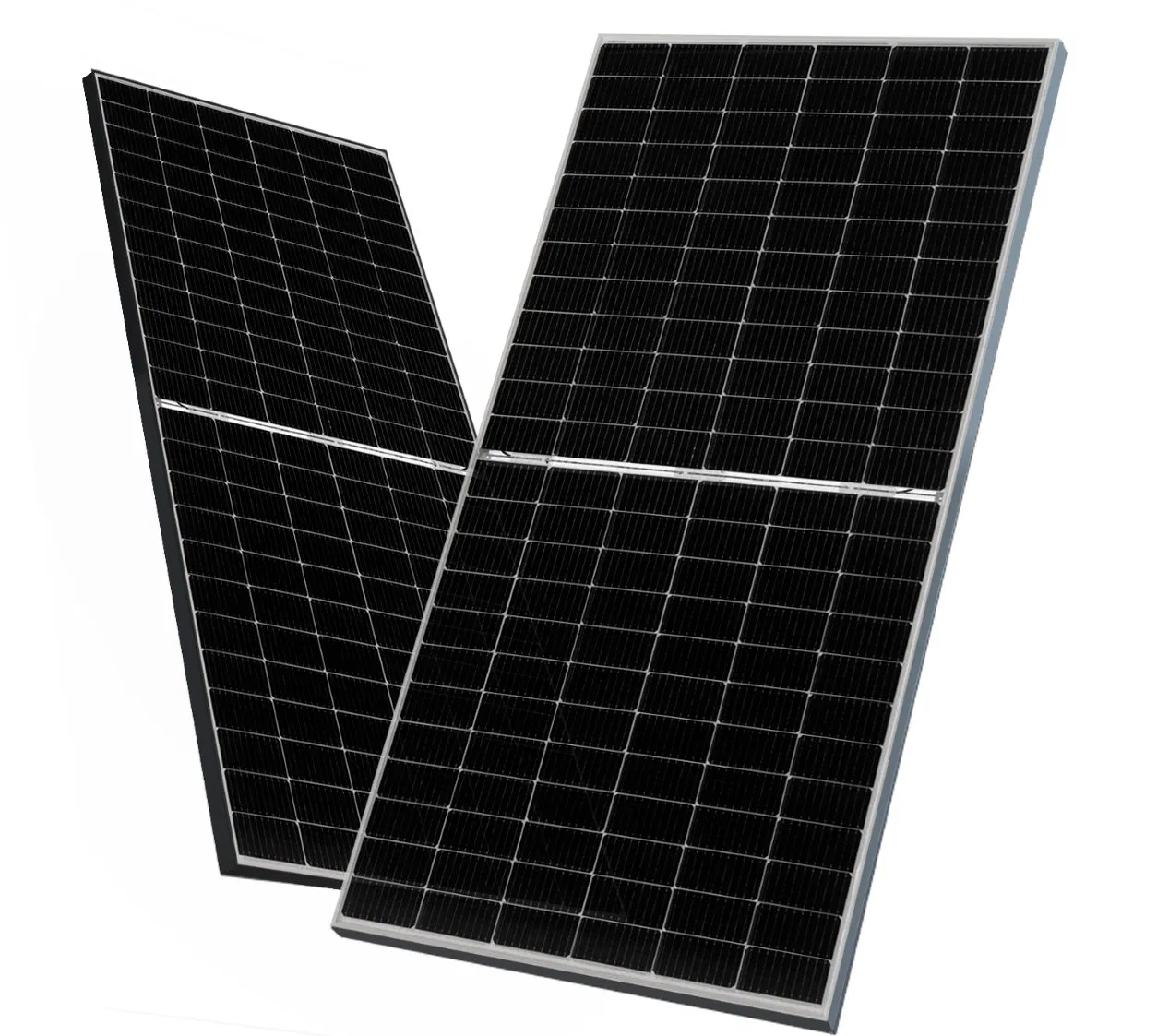

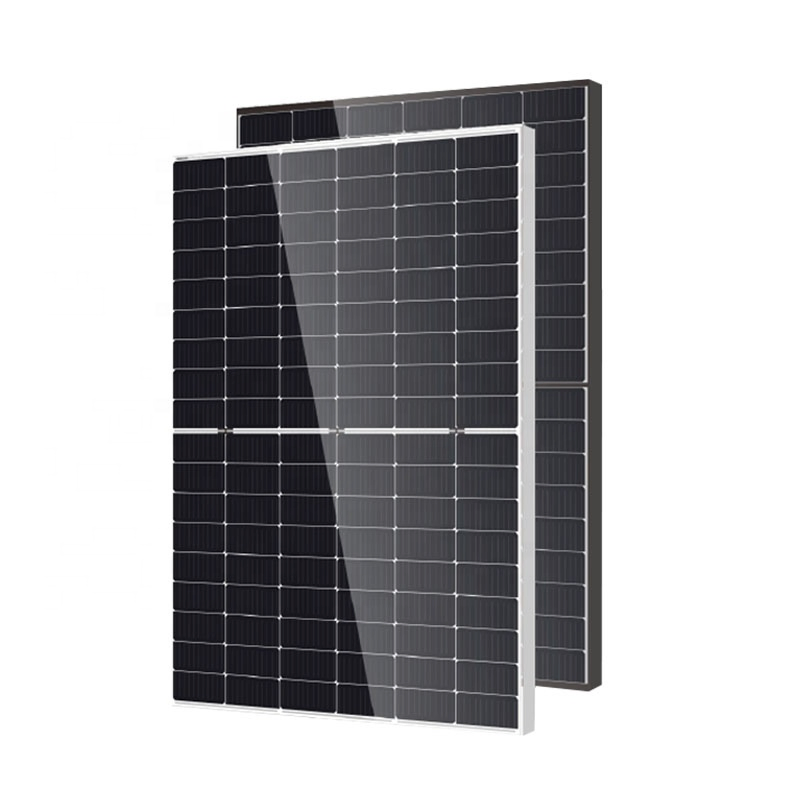

Detailed Photos
Product Parameters
| Model |
DHM72T30-525/MR |
DHM72T30-530/MR |
DHM72T30-535/MR |
DHM72T30-540/MR |
DHM72T30-545/MR |
DHM72T30-550/MR |
| Maximum power (W) |
525W |
530W |
535W |
540W |
545W |
550W |
| Voltage (VMP/V) |
41.24V |
41.53V |
41.82V |
42.12V |
42.41V |
42.71V |
| Current (IMP/A) |
12.73A |
12.76A |
12.79A |
12.82A |
12.85A |
12.88A |
| Open circuit voltage (VOC/V) |
49.05V |
49.20V |
49.35V |
49.51V |
49.69V |
49.88V |
| Short circuit current (ISC/A) |
13.61A |
13.68A |
13.75A |
13.82A |
13.89A |
13.97A |
| Component efficiency [%] |
20.31% |
20.51% |
20.70% |
20.89% |
21.09% |
21.28% |
| Power tolerance(W) |
0~+5 |
Note: Due to continuous innovation, research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types.
Certifications
Packaging & Shipping
Company Profile
A photovoltaic enterprise established in 2017, integrating R&D, production, and sales of solar products. It is committed to overall solutions for distributed photovoltaic systems, providing consulting, design, construction, operation, maintenance, and other comprehensive services.
Product offerings include solar cells, solar panels, solar on/off-grid system schemes, and other related application products.
With excellent product quality, the products have received ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe), and other international certifications and have been exported to many countries and regions.
Frequently Asked Questions
What is the maximum power output of these solar panels?
The panels range from 525W to 550W under Standard Test Conditions (STC), depending on the specific model selected.
What materials are used in the construction of these panels?
These panels are made from high-efficiency Monocrystalline Silicon and feature an Anodized Aluminum Alloy frame with 3.2mm coated tempered glass.
Are the panels durable against extreme weather?
Yes, they have passed hailstone tests (25mm hailstones at 23m/s) and feature an IP68 junction box for superior water and dust resistance.
What certifications do your solar products hold?
Our products are certified by international standards including ISO, CE, TUV, and CQC, ensuring safety and performance reliability.
What are the dimensions and weight of a standard 560M module?
The LR5-72HTH-560M model measures 2278*1134*35mm and weighs approximately 27.5kg.
In what applications can these solar panels be used?
They are suitable for a wide range of applications including light industry, agriculture, and large-scale industrial distributed photovoltaic systems.
