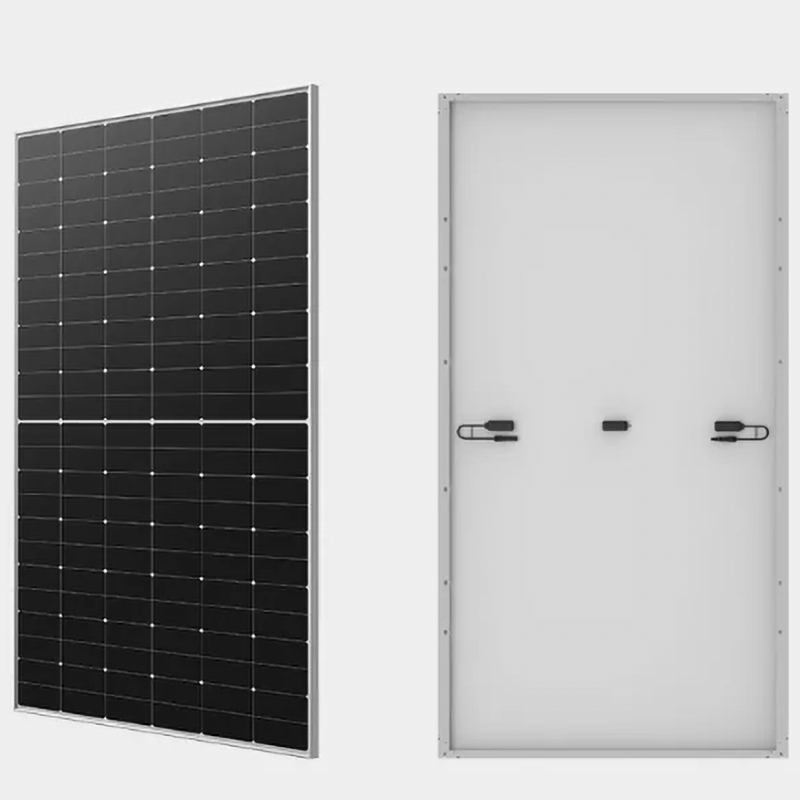

Longi Solar Panel 620W-700W for Longi Himox10 Systems Solar Panels Best Price Solar Panels for Residential Use

Material: Crystalline Silicon
Form of Expression: Component Type
Application: Photovoltaic Venues

Product Description

Basic Info
Model NO. Hi-MOX10 LR7-72HVH
Cell Orientation 144 (6×24)
Junction Box IP68, Three Diodes
Glass Single Glass, 3.2mm Anti-Glare Coated Tempered Glass
Frame Anodized Aluminum Alloy Frame
Weight 28.5kg
Packaging 36PCS Per Pallet / 144PCS Per 20'GP / 720PCS Per 40'HC
Transport Package Sea Transportation
Specification 2382×1134×30mm
Origin China
HS Code 85414020
Production Capacity 500,000 Pcs/Year
Product Description
Solar Panel Best Price Solar Panels for Residential Use
Introducing the Hi MO X10 LR7-72HVHF, a marvel of solar engineering. Available in power ranges from 640W to 670W, this half-cell module delivers superior performance, efficiency, and reliability. With N Type technology, it is designed to meet the highest industry standards.
Solar Panel Specifications Guide
Product Parameters
Cell Orientation 144(6×24)
Junction Box IP68, three diodes
Output Cable 4mm², +400, -200mm / ±1400mm (length can be customized)
Glass Single glass, 3.2mm coated tempered glass
Frame Anodized aluminum alloy frame
Weight 28.5kg

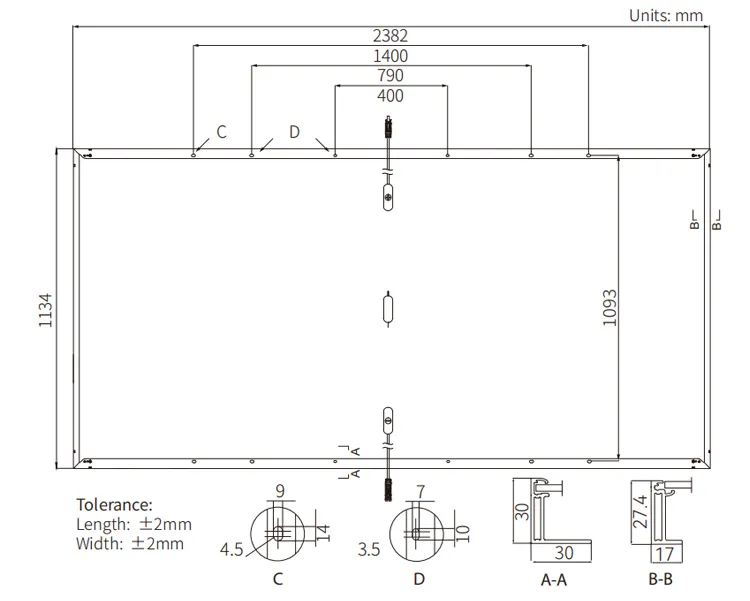

Dimension 2382×1134×30mm
Packaging 35pcs per pallet / 140pcs per 20'GP / 700pcs per 40'HC
Model 640M 645M 650M 655M 660M 665M 670M
Rated Maximum Power (Pmax) [W] 640 645 650 655 660 665 670
Maximum Power Voltage (Vmp) [V] 44.36 44.46 44.56 44.66 44.76 44.86 44.96
Maximum Power Current (Imp) [A] 14.43 14.51 14.59 14.67 14.75 14.83 14.91
Open Circuit Voltage (Voc) [V] 53.7 53.8 53.9 54.0 54.1 54.2 54.3
Short Circuit Current (Isc) [A] 15.13 15.21 15.29 15.37 15.45 15.52 15.69
Module Efficiency [%] 23.7% 23.9% 24.1% 24.2% 24.4% 24.6% 24.8%
Operational Temperature -40°C ~ +85°C
Power Output Tolerance 0 ~ 3%
Maximum System Voltage DC1500V (IEC)
Maximum Series Fuse Rating 25A
Nominal Operating Cell Temp 45±2°C
Protection Class Class II
Fire Rating IEC Class C
Temperature Coefficient of Isc +0.050%/°C
Temperature Coefficient of Voc -0.200%/°C
Temperature Coefficient of Pmax -0.260%/°C
Solar Panel Operating Curves
Certifications
Certified Quality: Approved by TUV, CE, IEC, and EN, ensuring top-notch quality and rigorous safety standards.
Packaging & Shipping
Shipping terms are flexible and can be tailored to your needs. Discuss options for a detailed plan. Please note, packing details are subject to updates. We offer additional packaging solutions, including wooden box packing for orders under a pallet. Embrace our customization options to suit your unique requirements.
Our Advantages
Orders are fully secure with SSL encryption and PCI DSS protection during transactional processes.
After Sales Service
Benefit from our comprehensive after-sales service. Each solar panel comes backed by a five-year product warranty.
Frequently Asked Questions (FAQ)
What is the power output range of these solar panels?
The power output for the Hi-MOX10 series ranges from 640W up to 670W, delivering high-efficiency performance for both residential and utility-scale installations.
What technology makes these modules highly efficient?
These modules utilize N-Type half-cell technology, which provides superior performance, higher conversion efficiency (up to 24.8%), and better reliability compared to standard cell designs.
What safety and quality certifications do these panels hold?
They are fully certified to meet international safety and quality standards, including TUV, CE, IEC, and EN certifications.
Is there a warranty included with the solar panels?
Yes, all solar panels come with a comprehensive five-year warranty along with professional after-sales technical support.
Are flexible packaging options available for smaller orders?
Yes, flexible shipping terms can be arranged. We support customized options, including secure wooden box packaging for orders that do not meet the minimum pallet count.
