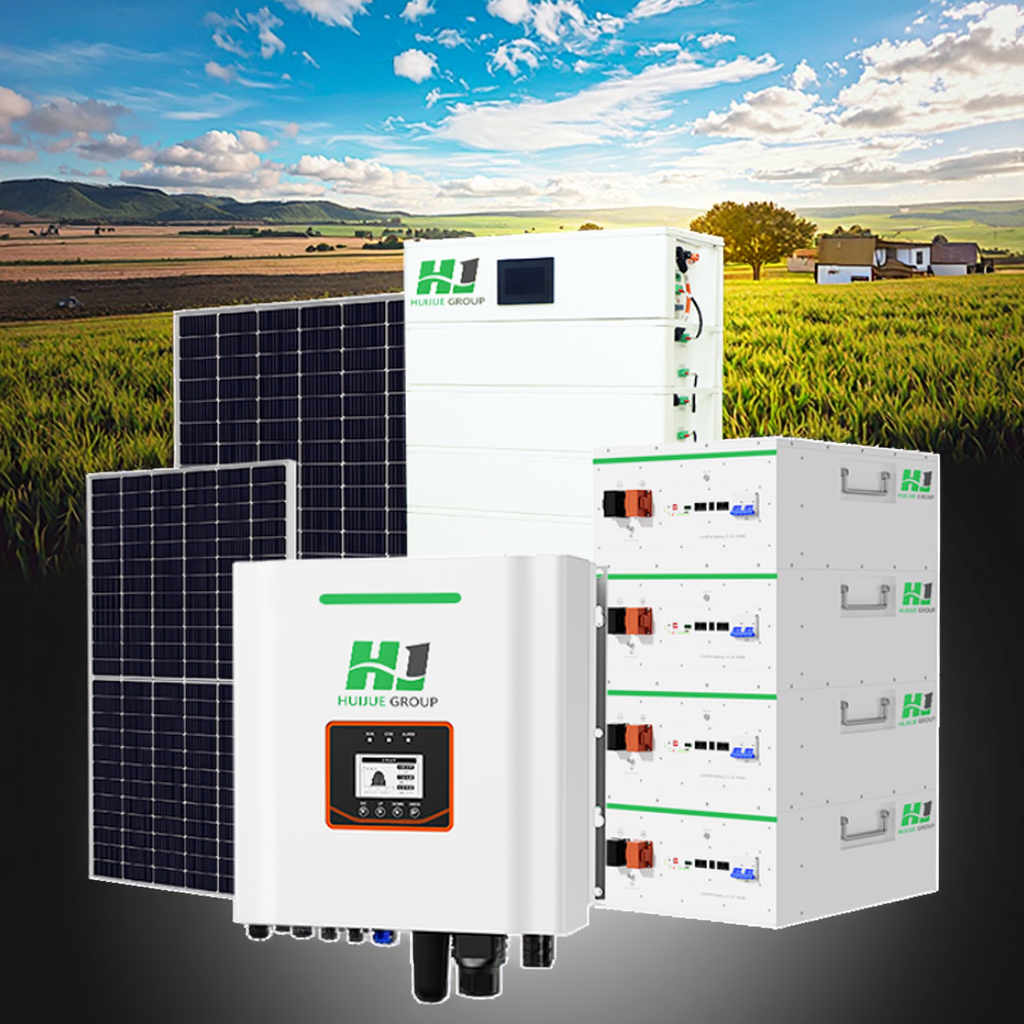

Complete Off Grid Solar Panels System 5kva Solar System Full Kit 5.12kwh 10.24kwh 20.48kwh Lithium Battery System

1 / 5

Complete Off Grid Solar Panels System 5kva Solar System Full Kit 5.12kwh 10.24kwh 20.48kwh Lithium Battery System

Send Inquiry

Product Description

Production Details

Product model	HJ-H05-H05-03H	HJ-H10-H05-05H	HJ-H20-H10-10H
Solar Panel	3.3KW	4.95KW	9.9KW
MPPT Inverter	3KW,220~240VAC,48VDC	5KW,220~240VAC,48VDC	10KW,220~240VAC,48VDC
Battery	5.12kWh	10.24kWh	20.48kWh
Optional modules	wifi	wifi	wifi

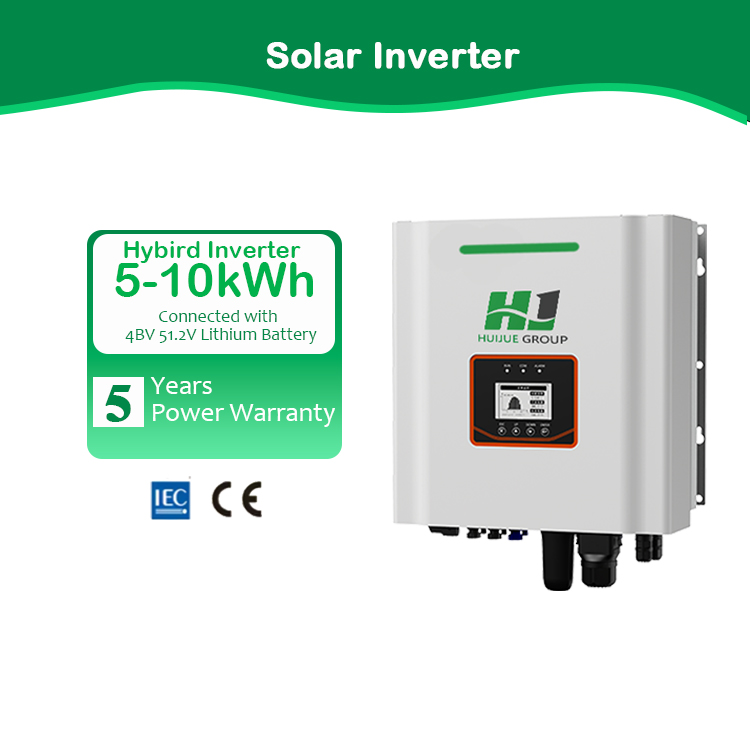

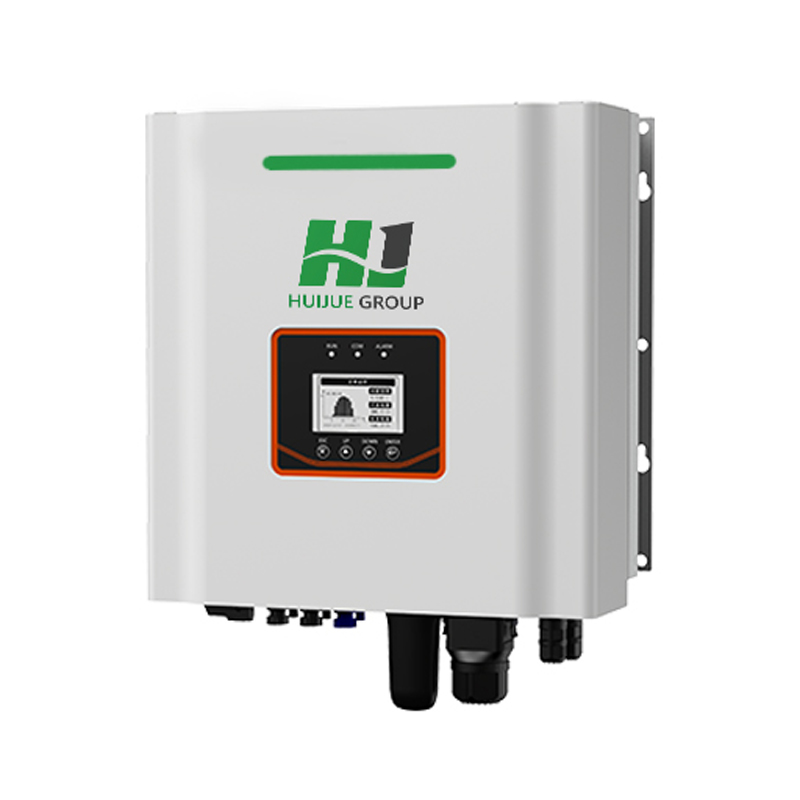

Solar Inverter

Hybrid System
Pure sine wave solar inverter
High output power factor
High PV input voltage range
Built-in MPPT solar controller
WiFi/GPRS remote monitoring
RS485 communication for BMS (Optional)

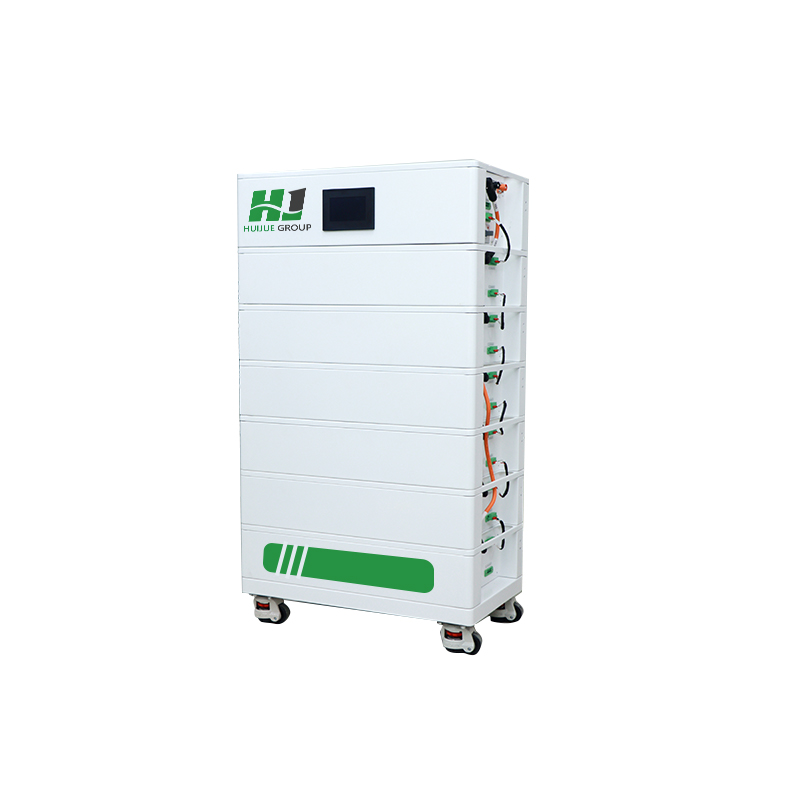

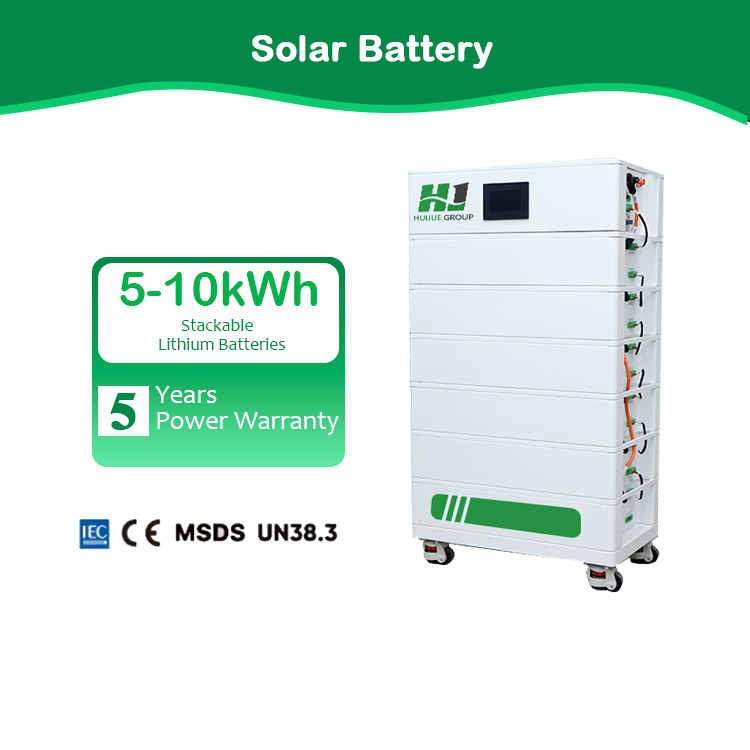

Solar Battery

Voltage: 51.2V
Capacity: 200Ah
Energy: 10kwh
Service Life (25°C): 5 Years
Cycle Time (80%DOD): 6000 cycles
Weight: 90kg
Dimensions: 580*440*227mm

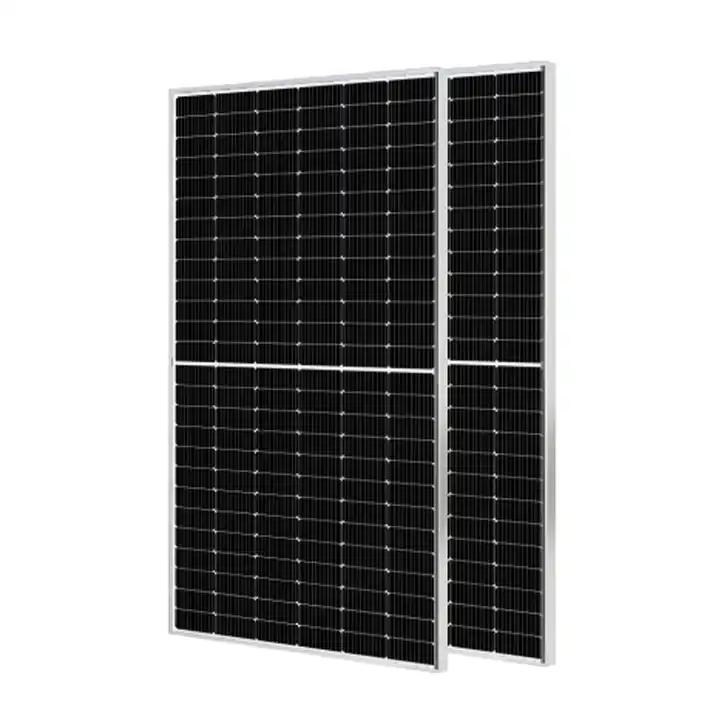

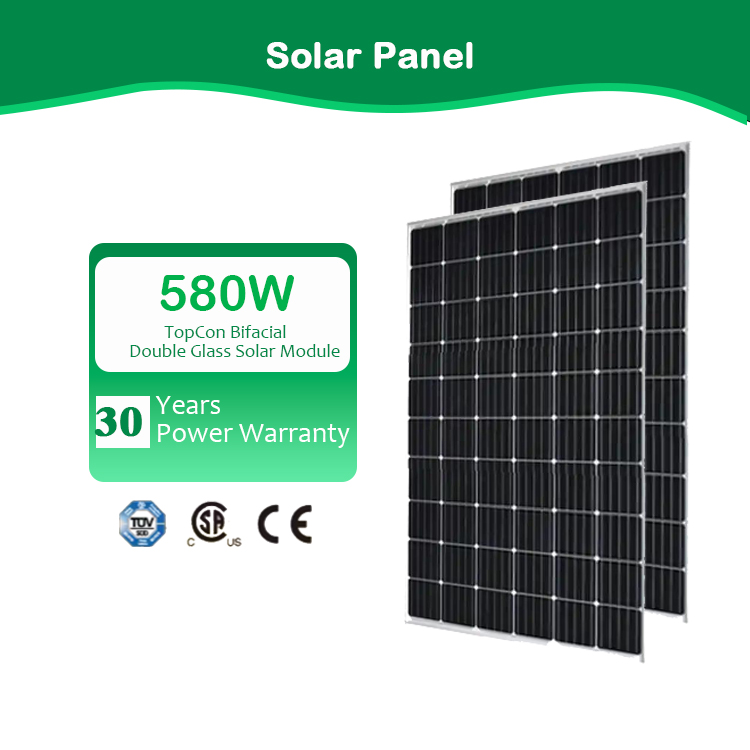

Solar Panel

Peak Power Watts: 580W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

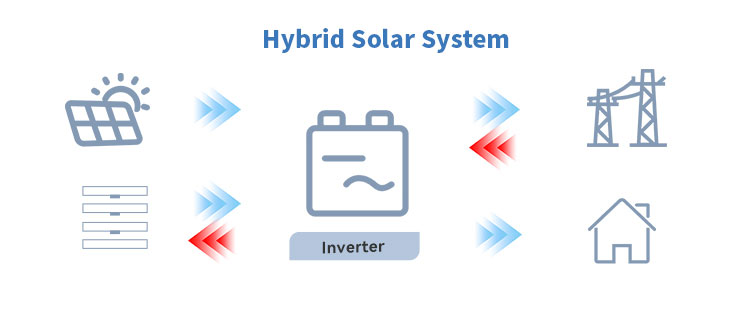

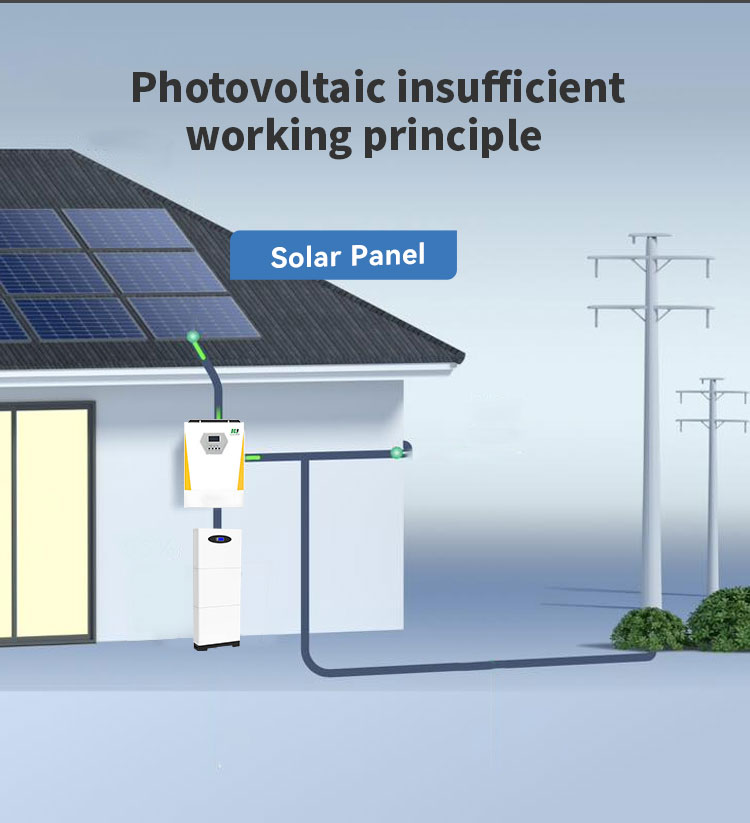

Application Scenarios

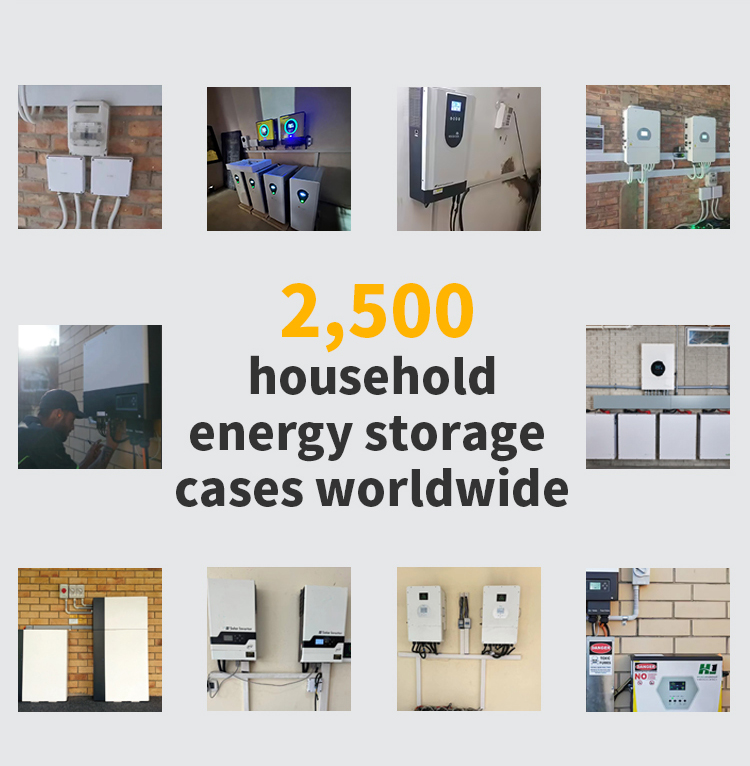

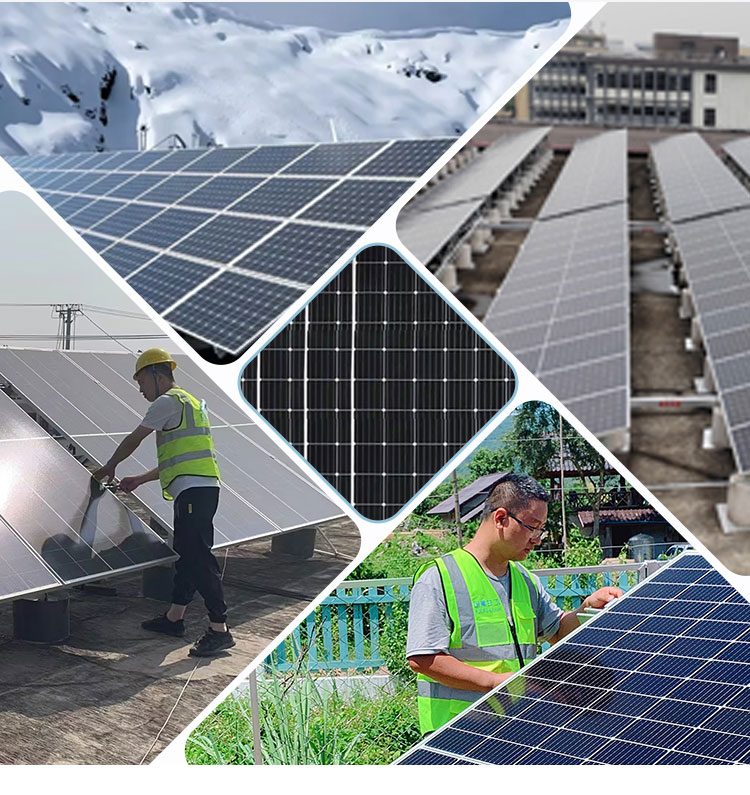

Project Case

Certifications

Exhibition & Visit

FAQ

Q: What are your main products?

We specialize in a comprehensive range of solar energy products, including solar systems, solar panels, solar inverters, powerwalls, lithium-ion batteries, and all related mounting accessories.

Q: Are you a factory?

Yes, we are a professional manufacturer with over twenty years of experience in the solar energy industry. We welcome you to visit our production facilities.

Q: Do you offer OEM and installation services?

Yes, as a professional solar system manufacturer, we provide full OEM solutions, on-site installation support, and comprehensive after-sales service.

Q: How do you handle quality control?

Quality is our priority. We employ a professional QC team to ensure rigorous testing and quality standards are met for every single product before it leaves the factory.

Q: What is your delivery efficiency?

We utilize fully automatic, internationally advanced production equipment. This allows us to maintain competitive pricing and high-quality standards while efficiently supplying large-scale orders.

Q: How can I get more information?

For more details or specific product inquiries, please submit a request, and our professional team will provide the information you need.
