| SPECIFICATIONS | |
|---|---|
| Model Name | VV-10W |
| Type | solar panel |
| Size | 550*300*20mm |
| Material | Polycrystalline silicon plastic (aluminum) border color material can be customized. |
| Battery | 36Ah |
| Peak Power | 10W |
| Size of Cell | 39*52mm |
| Max Voltage | 18V |
| Max Current | 0.56A |
| Open Voltage | 21.8V |
| Short Current | 0.65A |
| Weight | 7.8KG/BOX |
| BOX/PCS | 5pcs/box |
| Raw Material | -Glass and Plastic Frame - Poly-crystalline or Mono-crystalline Silicon - EVA-------excellent anti-aging EVA -TPT-------TPT hot seal made of flame resistance |
| Model Name | Size | PACKING | CBM/BOX | KG/BOX | 20FT(BOX) | 40HQ(BOX) |
|---|---|---|---|---|---|---|
| VV-10W | 500*300*20MM | 5PC/BOX | 0.025 | 7.8 | 1120 | 2720 |
| VV-15W | 550*350*20MM | 5PC/BOX | 0.04 | 10.5 | 700 | 1700 |
| VV-25W | 650*510*20MM | 5PC/BOX | 0.066 | 13.2 | 424 | 1030 |
| VV-35W | 700*510*20MM | 5PC/BOX | 0.07 | 15 | 400 | 970 |
| VV-55W | 900*510*25MM | 5PC/BOX | 0.09 | 18 | 310 | 755 |
| VV-65W | 1000*510*25MM | 5PC/BOX | 0.11 | 22 | 254 | 618 |
| VV-100W | 1200*510*30MM | 5PC/BOX | 0.143 | 34 | 195 | 475 |
| VV-150W | 1480*670*30MM | 2PC/BOX | 0.029 | 22 | 965 | 2241 |
| VV-250W | 1650*992*40MM | 2PC/BOX | 0.065 | 32 | 430 | 1000 |
To produce monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.

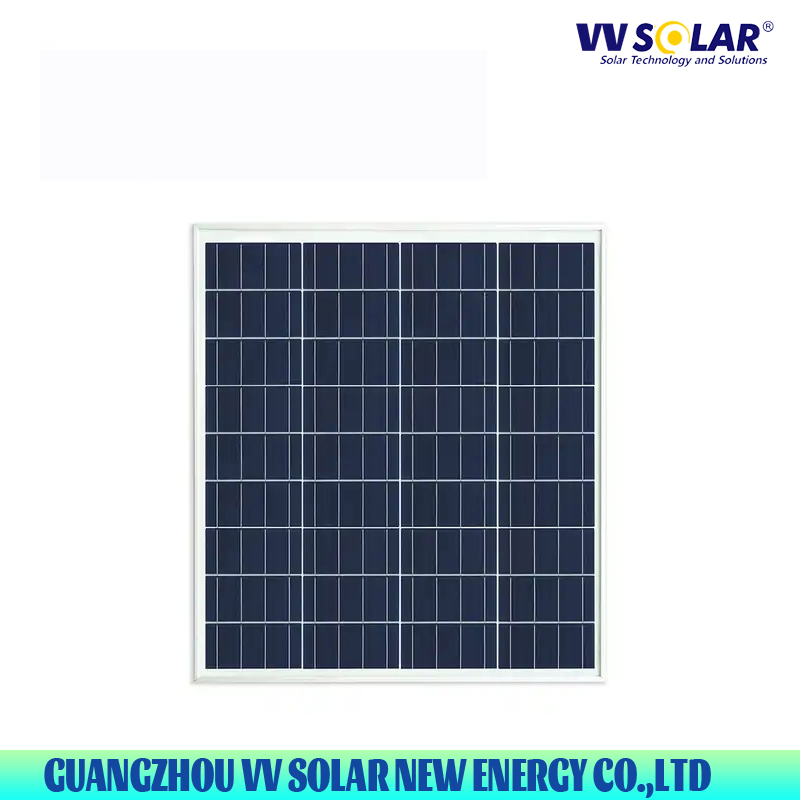

Polycrystalline solar panels are also made from silicon. However, instead of using a single crystal of silicon, manufacturers melt many fragments of silicon together to form the wafers for the panel. Polycrystalline solar panels are also referred to as "multi-crystalline" or many-crystal silicon. Because there are many crystals in each cell, there is less freedom for the electrons to move. As a result, polycrystalline solar panels have lower efficiency ratings than monocrystalline panels.
