Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
1 / 5
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station
Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station

Puyinii High Efficiency 200W Flexible Solar Panel 500W 400W 100W ETFE Thin Film 150W 180W Mono Power Banks & Solar Station

Send Inquiry

Product Description

Puyinii High Efficiency Flexible Solar Panel Series - ETFE Thin Film Mono Power Solutions
Technical Specification
Power Voc/V Isc/A Vmp/V Imp/A Efficiency Architecture Sizes
100W21.9V5.75A19.2V5.5A24.20%5-layer918*580*2.5mm
120W22.6V6.93A19.2V6.63A24.20%5-layer1084*580*2.5mm
150W21.21V9.24A18V8.84A24.20%5-layer1020*764*2.5mm
180W21.21V11.1A18V10.61A24.20%5-layer1203*764*2.5mm
200W23.1V11.09A19.8V10.6A24.20%5-layer1316*764*2.5mm
250W22.5V13.89A19.2V13.28A24.20%5-layer1279*948*2.5mm
300W44.9V8.64A38.5V8.26A24.20%7-layer1618*948*2.5mm
350W44.54V9.87A37.9V9.44A24.20%7-layer1799*948*2.5mm
400W44.54V11.62A37.8V11.11A24.20%7-layer1771*1132*2.5mm
450W42.42V13.84A36.12V13.23A24.20%7-layer1977*1132*2.5mm
500W42.42V15.26A36.12V14.59A24.20%7-layer2164*1132*2.5mm
Product Gallery

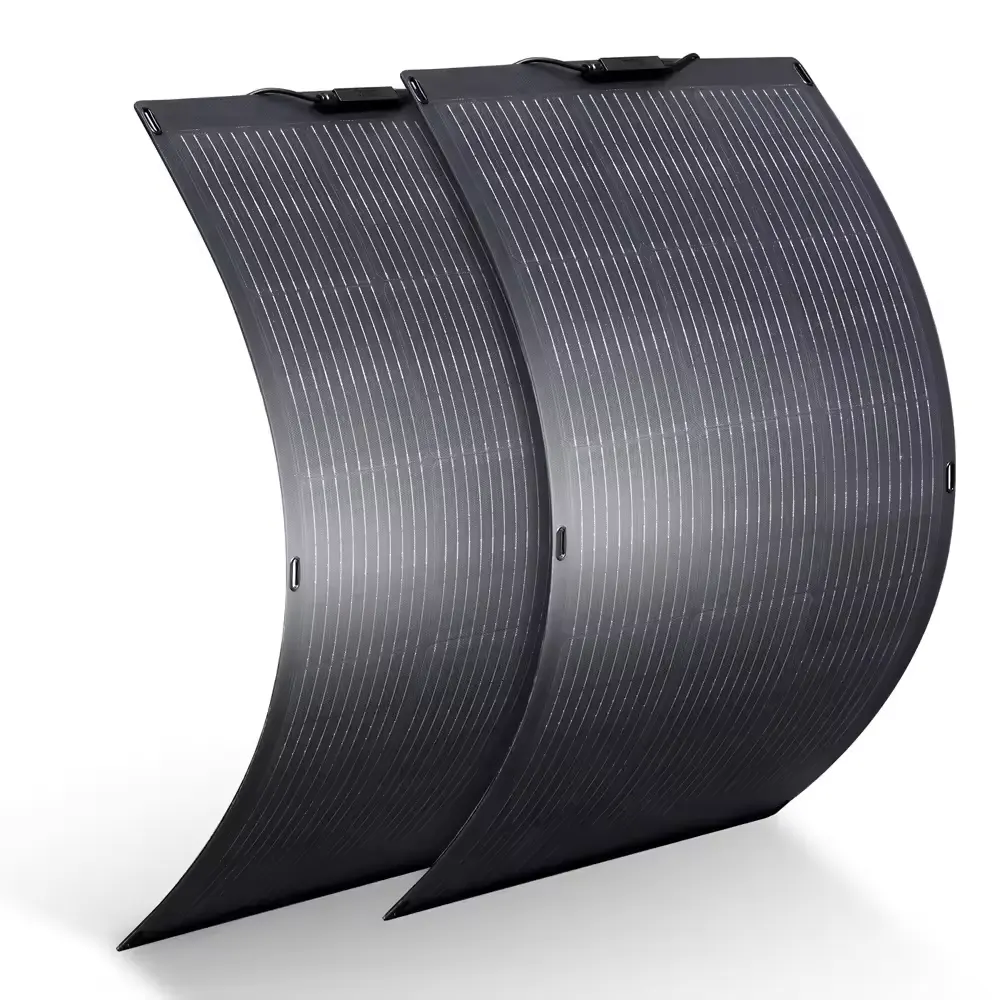

Flexible Solar Panel 1

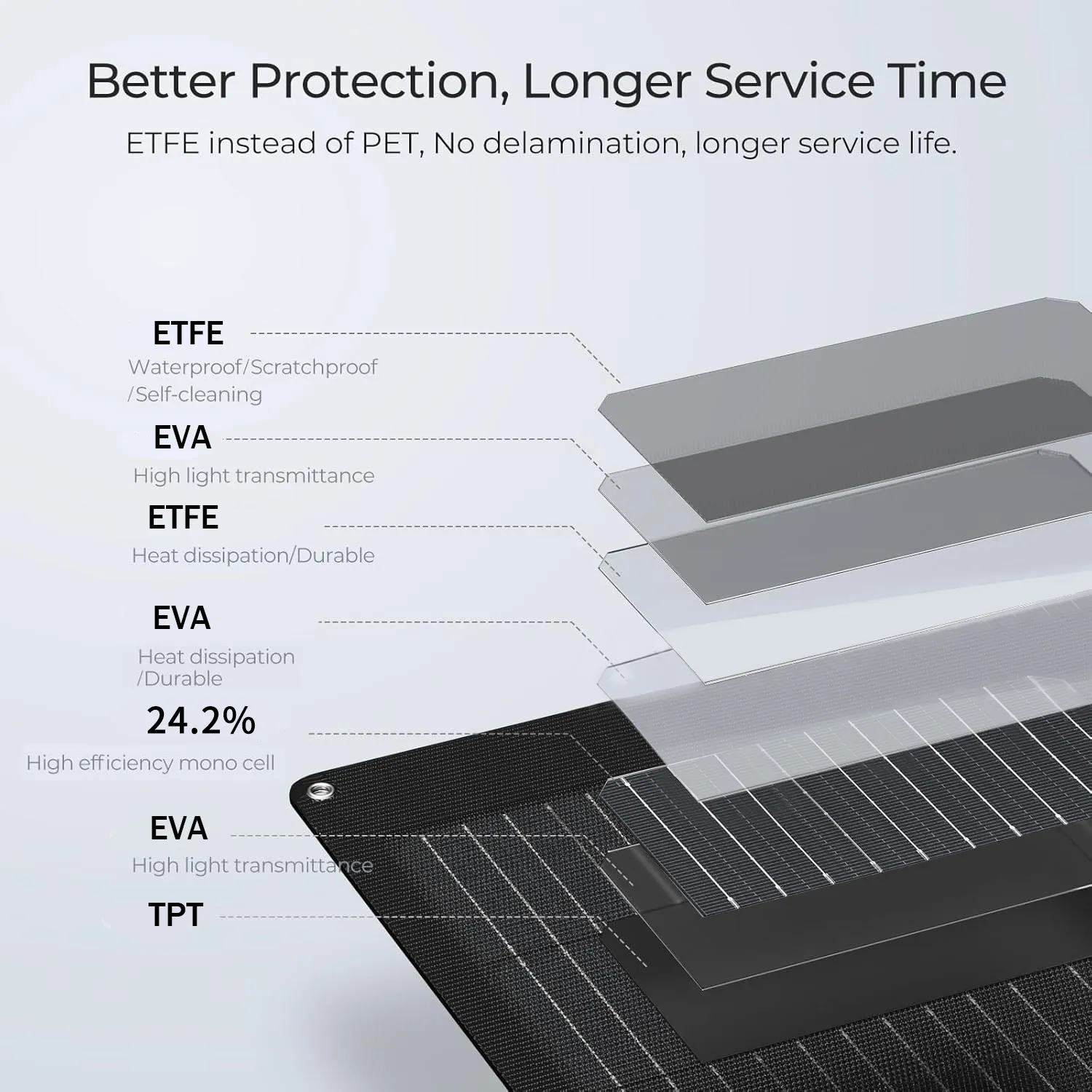

Flexible Solar Panel 2

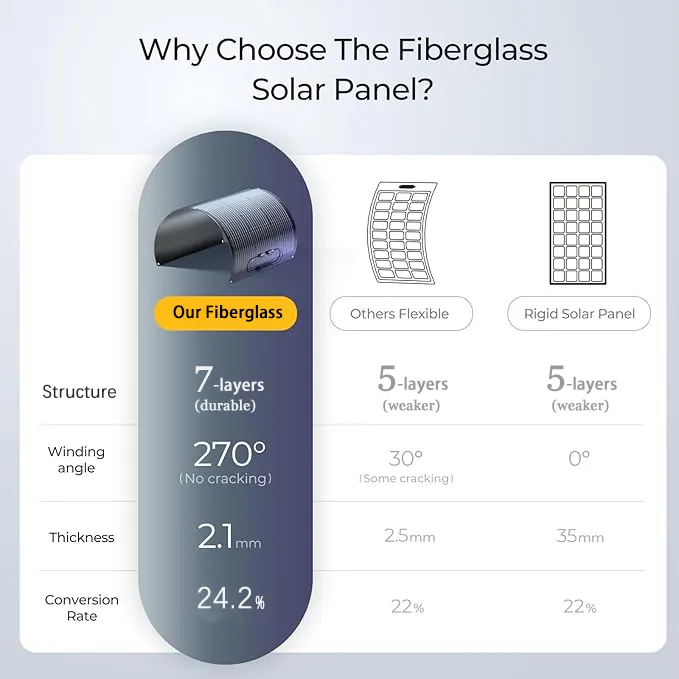

Flexible Solar Panel 3
Flexible Solar Panel 4

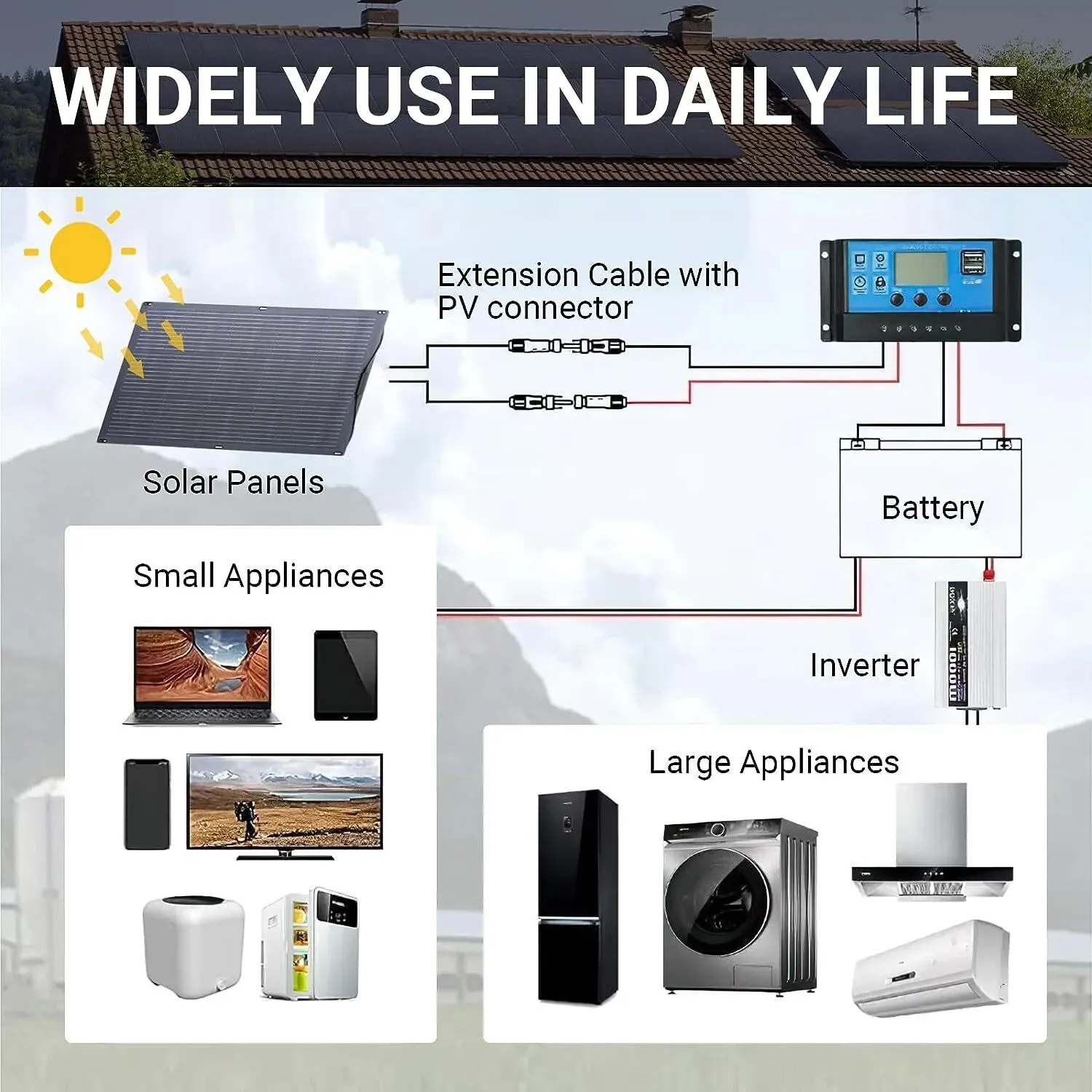

Flexible Solar Panel 5
Frequently Asked Questions
What are the main advantages of ETFE material in these solar panels?
ETFE (Ethylene Tetrafluoroethylene) provides superior durability, high light transmittance, and self-cleaning properties, making it ideal for harsh outdoor environments compared to traditional PET materials.
Can these flexible solar panels be bent to fit curved surfaces?
Yes, our flexible solar panels are designed with high-quality polymer materials that allow for bending, making them perfect for curved surfaces on RVs, boats, and uneven rooftops.
Are these solar panels waterproof and weather-resistant?
Absolutely. The panels feature a robust multi-layer encapsulation process that makes them fully waterproof, dustproof, and resistant to extreme weather conditions.
How efficient are these panels compared to standard mono panels?
Our panels utilize high-efficiency monocrystalline cells, achieving a conversion efficiency of 24.20%, which is among the top tier for portable and flexible solar technology.
What is the expected lifespan of these solar panels?
Due to the high-quality 5-layer or 7-layer construction process, these panels are designed for long-term outdoor use, offering excellent durability and performance retention over many years.
Do I need a charge controller to connect these to a battery?
Yes, it is highly recommended to use a compatible MPPT or PWM solar charge controller to regulate the voltage and current, protecting your battery bank and maximizing charging efficiency.
