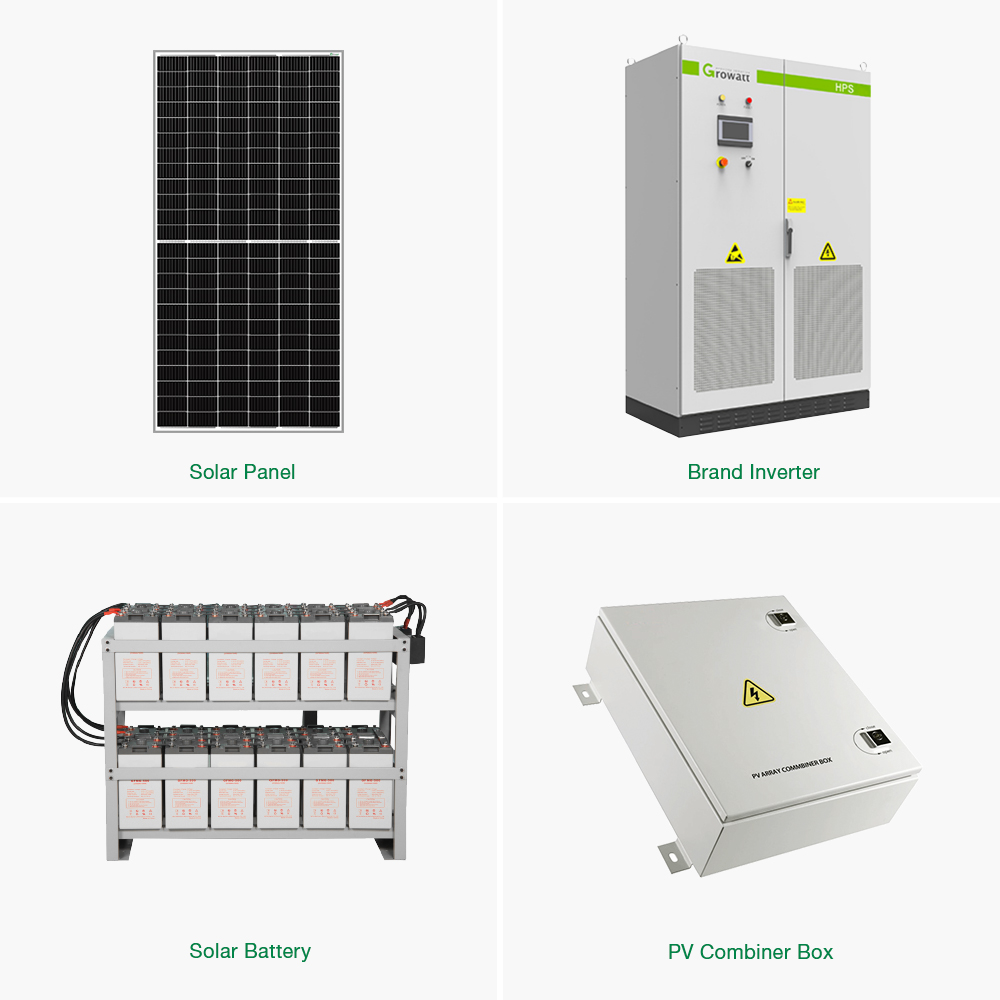

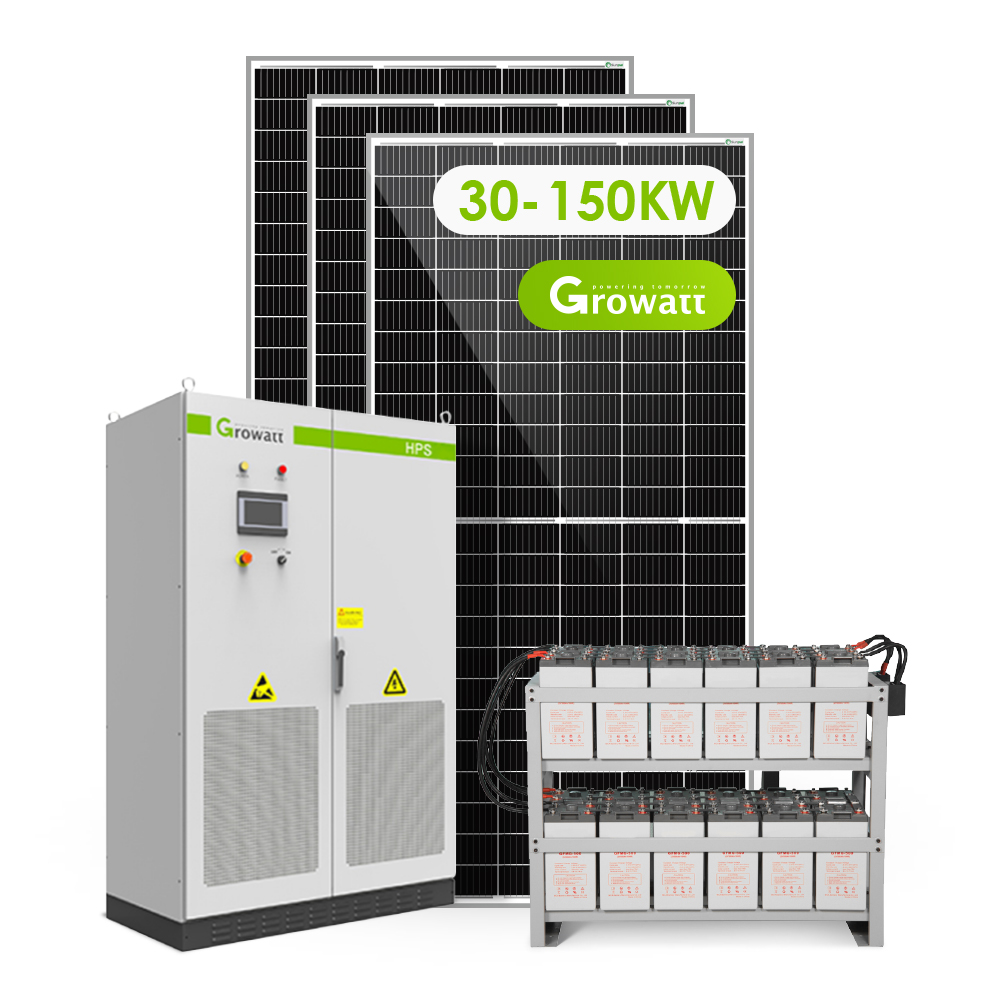

| Model | SPxxxKW-HY (xxx = 30, 50, 100, 120, 150) | ||||
| Hybrid Inverter (KW) | 30KW | 50KW | 100KW | 120KW | 150KW |
| 280W Mono Solar Panel (Pcs) | 105 | 168 | 336 | 420 | 504 |
| PV Combiner Box (Set) | 1 | 1 | 1 | 2 | 2 |

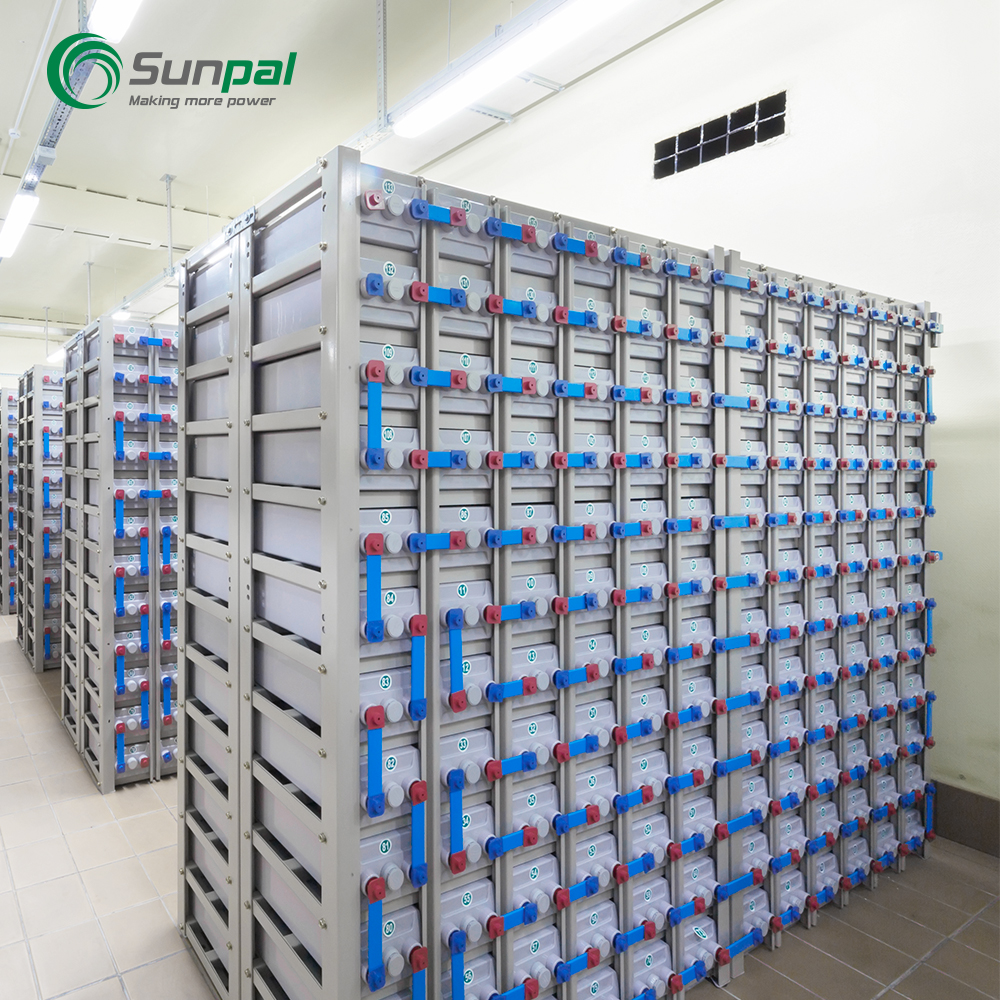

| Lead Acid Gel/ AGM Battery | 2V200AH - 2V3000AH | ||||
| Quantity of Battery (Pcs) | 210 | 210 | 210 | 210 | 210 |
| DC Cable (m) | 500 | 800 | 1600 | 2000 | 2400 |
| Mounting System | Customized | ||||
| Battery Rack | Customized | ||||
| Battery Cable (Pcs) | 220 | ||||
| MC4 (Pair) | 30 | 50 | 100 | 120 | 150 |
| PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | ||||

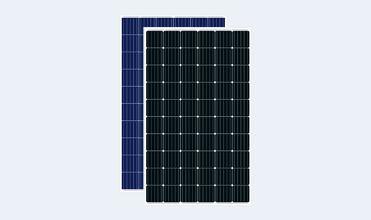

Peak Power Watts: 280W Mono For STD, Poly Optional
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions: 1650 × 992 × 35 mm (65.0 × 39.1 × 1.38 inches)
Weight: 18.6 kg (41.0 lb)

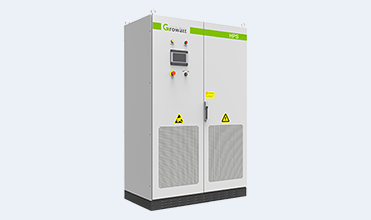

Max. DC Input Power: 30, 50, 100, 120, 150KW
Max. DC Input Voltage: 1000V
MPPT Voltage Range: 480-800VDC
Output Voltage: 400V (EU)
Wifi Stick: Standard standard, LAN & GPRS Optional

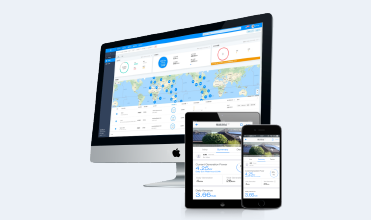

The Data Logging Stick allows you to receive information from your solar power system in order to keep you informed about the status of your PV system and local atmospheric conditions, anywhere and anytime, via our web server. Access is available via Wi-Fi, LAN, or GPRS.
App Availability: PC, iOS & Android

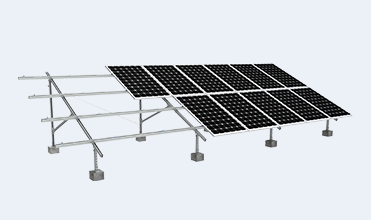

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt
Mid & End Clamps: 35, 40, 45, 50mm
Optional Accessories: L Foot Asphalt Shingle Mount & Hanger Bolt, Cable Clips & Ties, Ground Clips & Lugs
IP Rating: IP65
Rated Voltage: 1000VDC
Input Cable Terminal: 4-6mm²

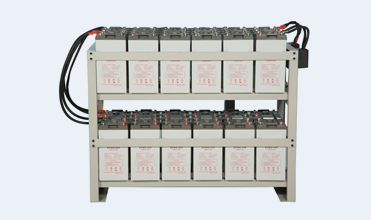

Capacity (kWh): 0.4 - 6
Nominal Voltage (Vdc): 2V
Nominal Capacity (AH): 200 - 3000
Voltage Range (Vdc): 2.27V ~ 2.30V
Depth of Discharge (DoD): 70%

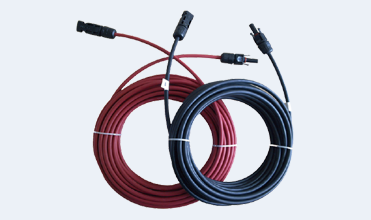

Cross Section: 4mm², 6mm² Optional
Rated Voltage: 600VDC/1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black (Standard), Red (Optional)

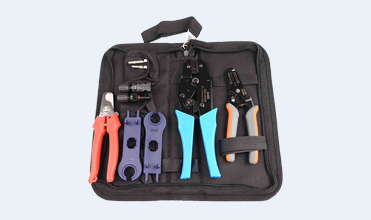

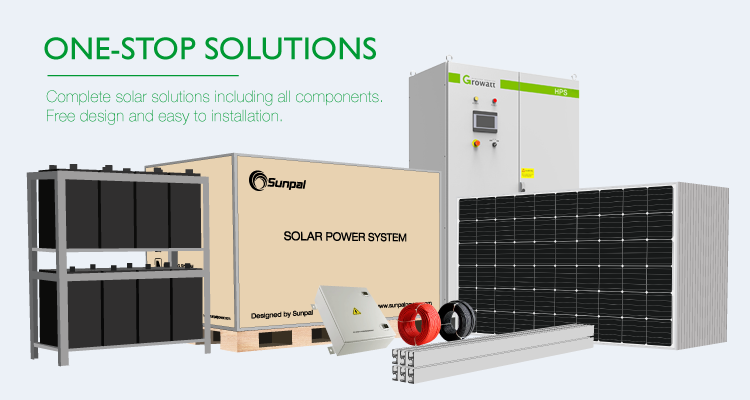

Standard equipment includes critical components for clean assembly:
• Wire Cable Cutter & Stripper
• MC3 / MC4 Crimping Tool
• MC4 Connectors Assembly & Disassembly Tool

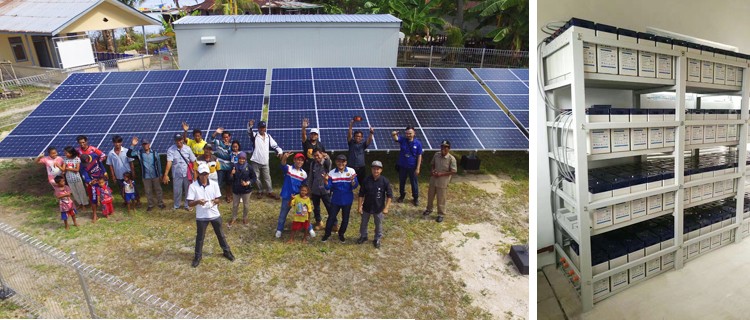

30KW Hybrid System installed in Malaysia using Poly Solar Panels and HPS30 inverter.

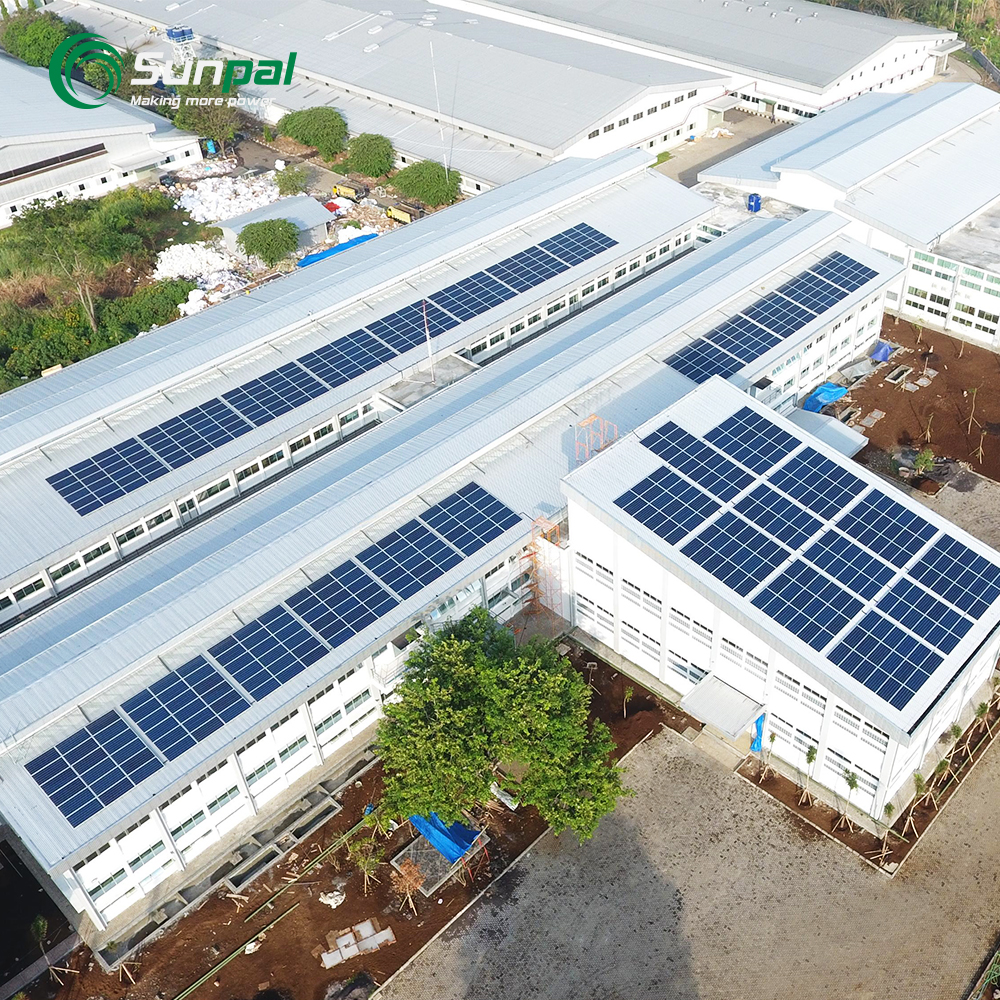

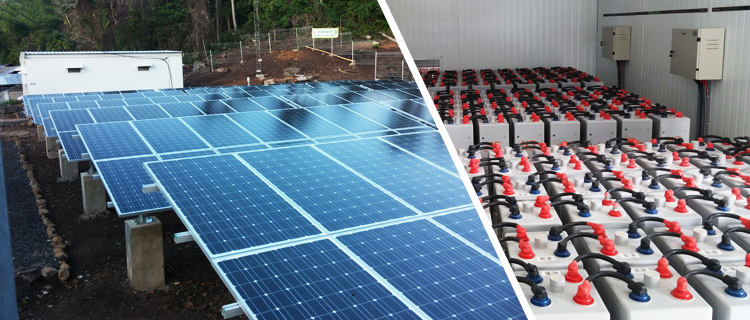

50KW Hybrid Solar System installed in Indonesia utilizing HPS50 and Mono Solar Panels.

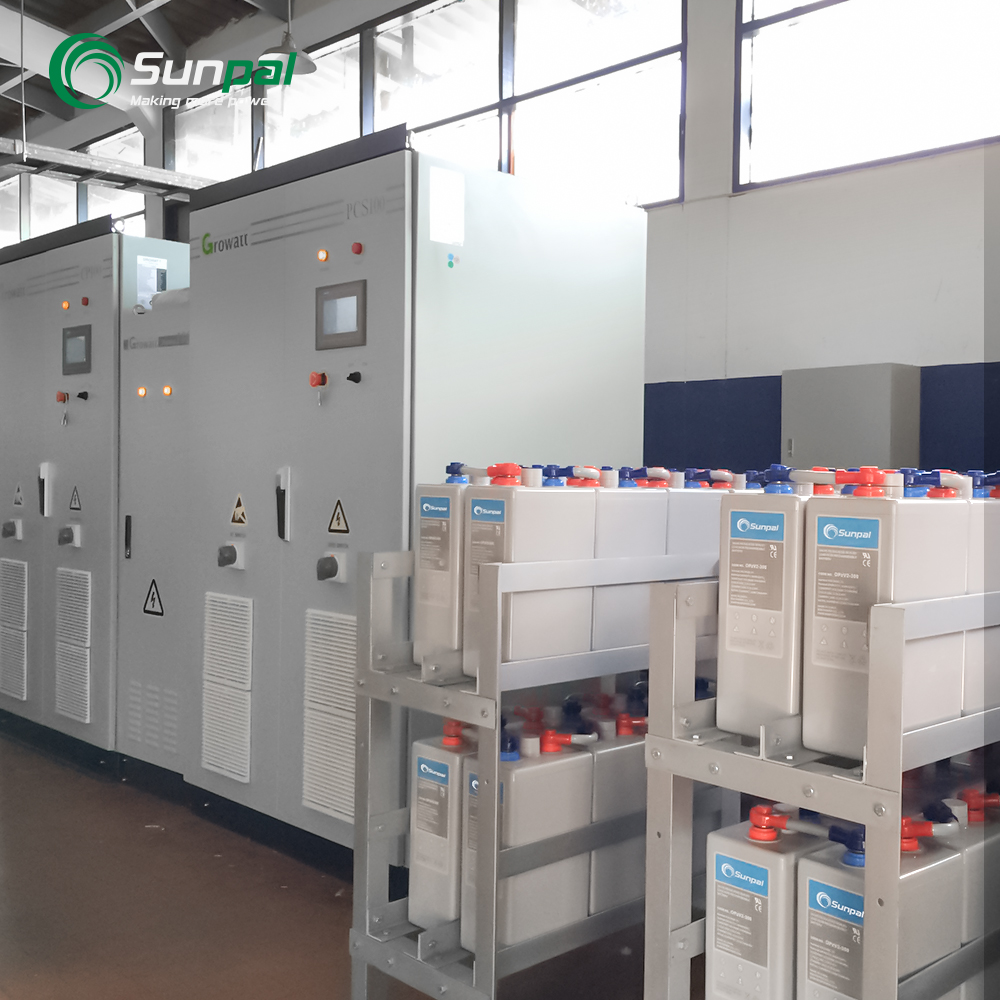

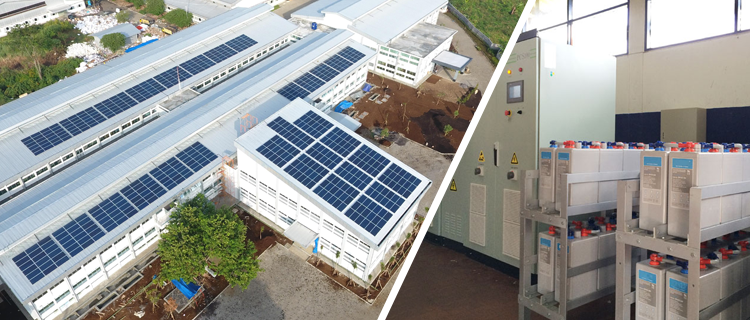

Commercial Hybrid System installation in Thailand for a factory roof paired with a custom battery bank.
