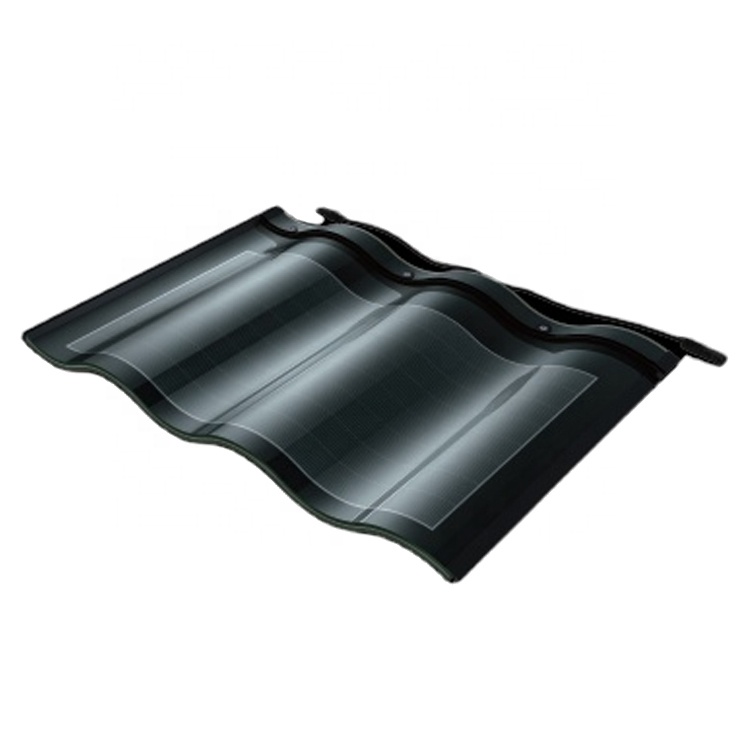

Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
1 / 5
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles
Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles

Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles

Send Inquiry

Product Description

Products Description

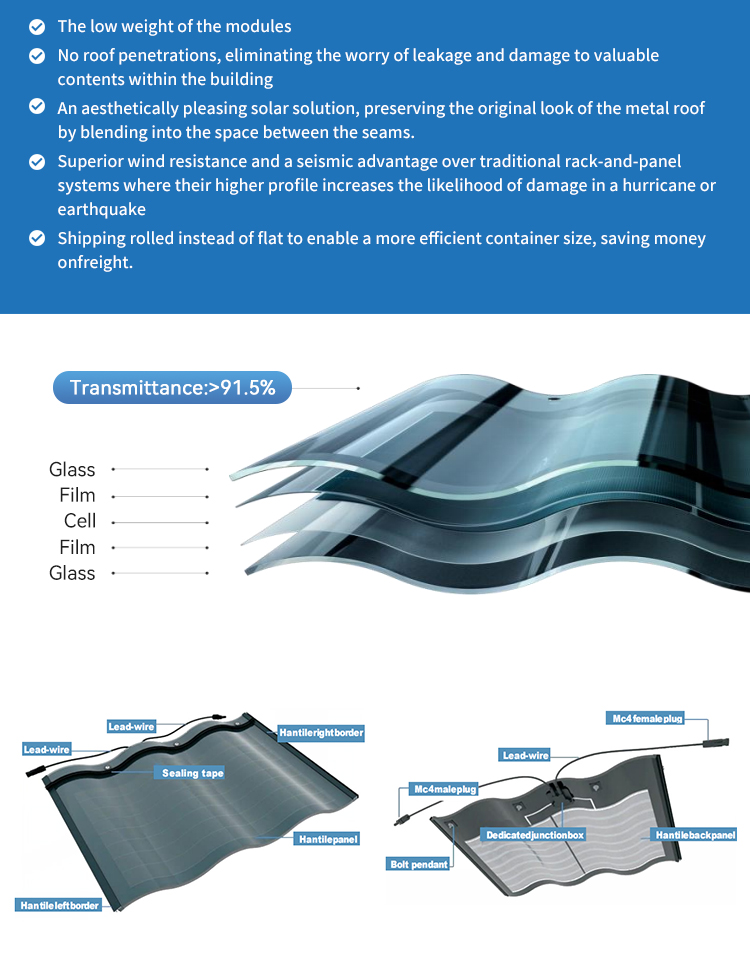

Solar Panel Overview 1 Solar Panel Overview 2 Solar Panel Overview 3
Specification
Physical Parameters
Product model HW-MQSB-V1, HW-MQSG-V1 Color Black and Grey
Length 721 (±1) mm Junction box 39*46*16.6mm IP67
Width 500 (±1) mm Cable type 2.5mm² Solar energy cable; 450 (+10/-0) mm
Height 8 (±1) mm Cable connector MC4
Weight 6.5 (±0.5) Kg
Electrical Property Parameters
Core type CIGS Open-circuit voltage 10.6V
Power 25W (one piece) Current under PMPP 3.5A
Short-circuit current 4A Voltage under PMPP 8.6V
Performance Rate
Loading rate 2400 Pa Fireproofing rate Class A
Water proofing rate IP67 Operating temperature -40°C to +85°C
Anti-hail rate Class 4 (ANSI FM 4473) Operating humidity 0% - 80%
Qualification and Certification
3C / CQC / ISO9001 / RoHS (being applied) / UL (being applied)

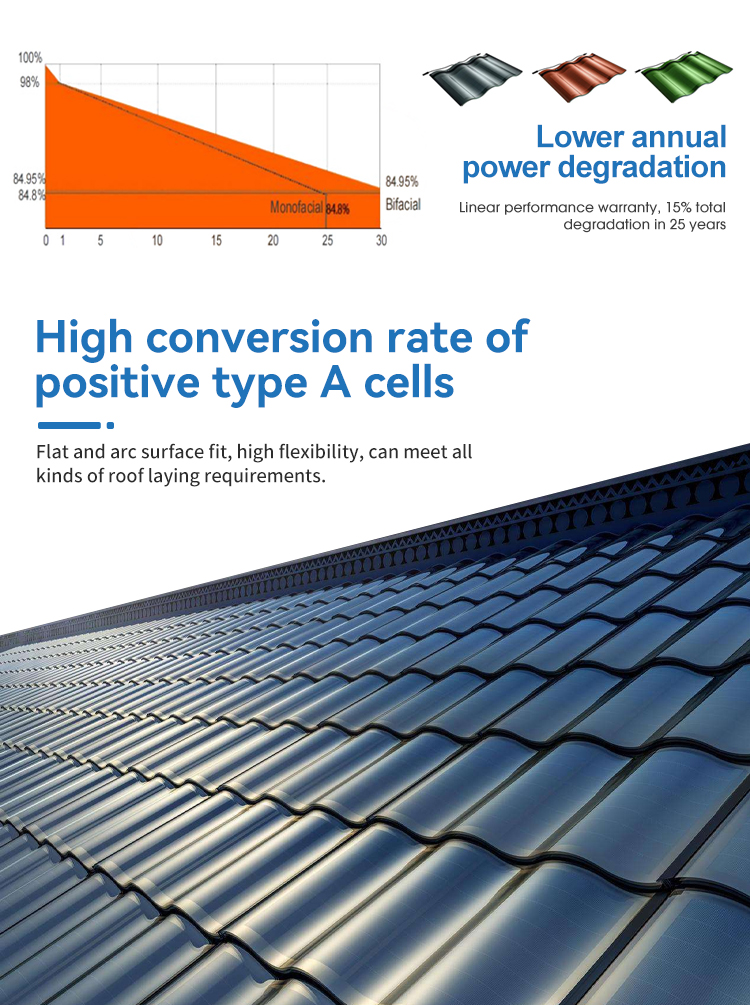

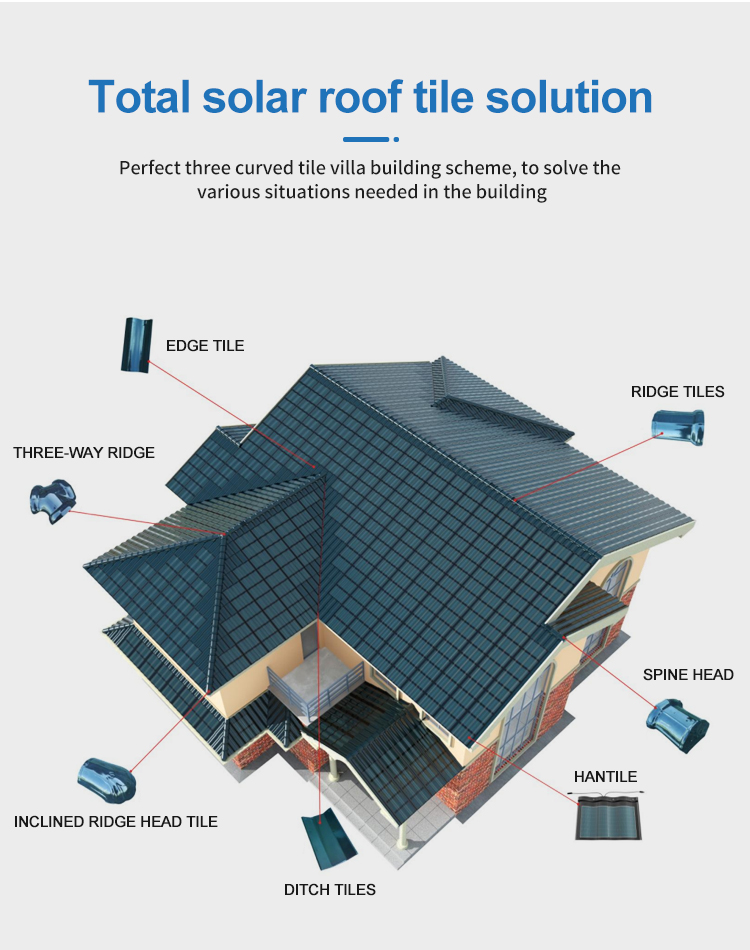

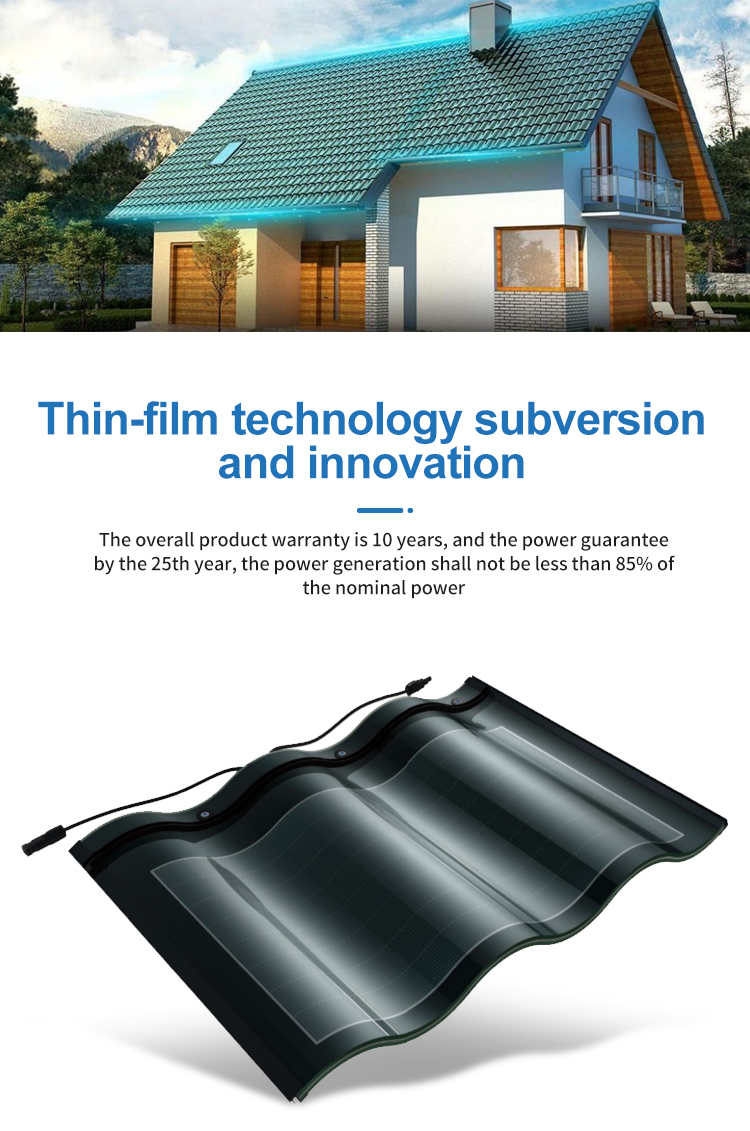

Solar Panel Detail 1 Solar Panel Detail 2 Solar Panel Detail 3
Recruitment of Agents

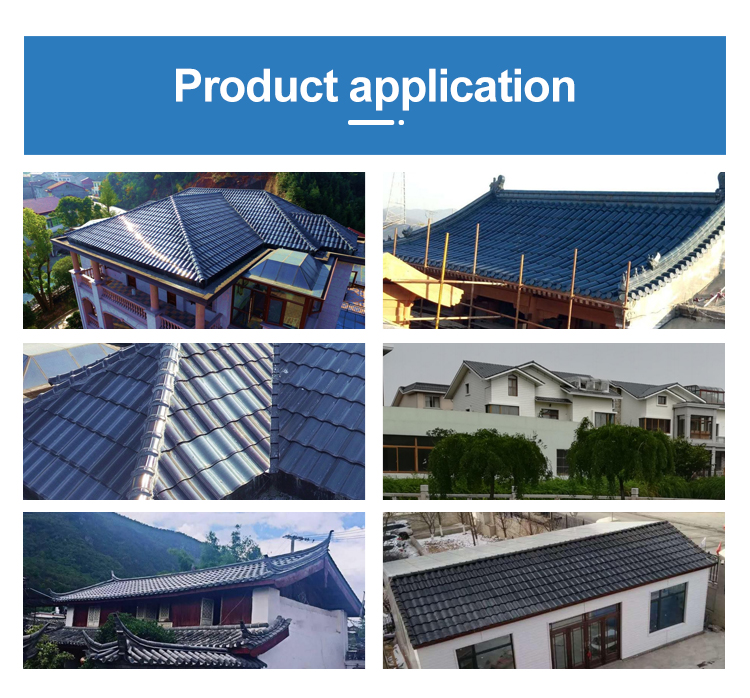

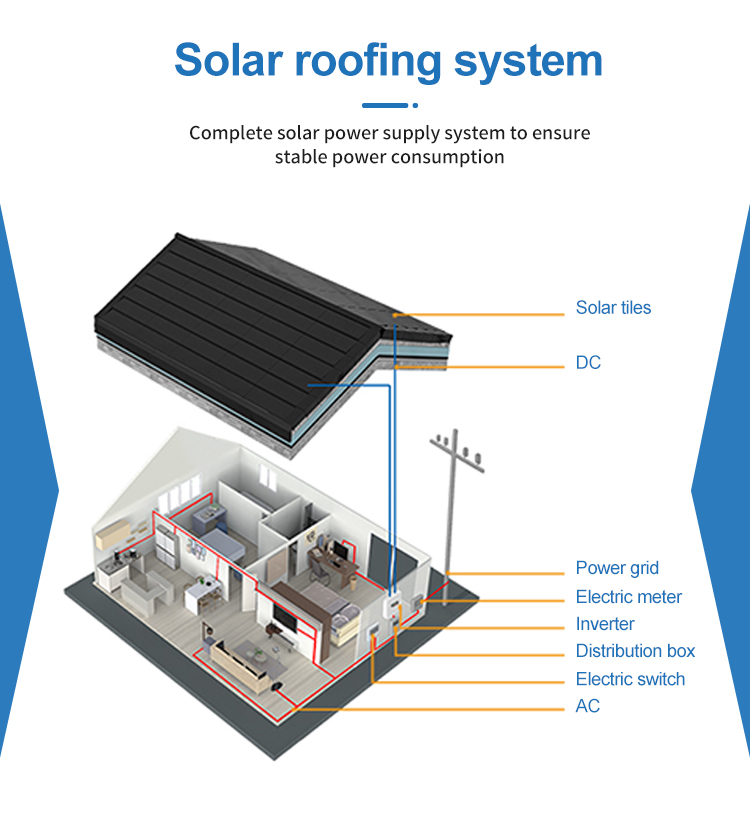

Recruitment Info 1 Recruitment Info 2 Recruitment Info 3
Packing And Shipping

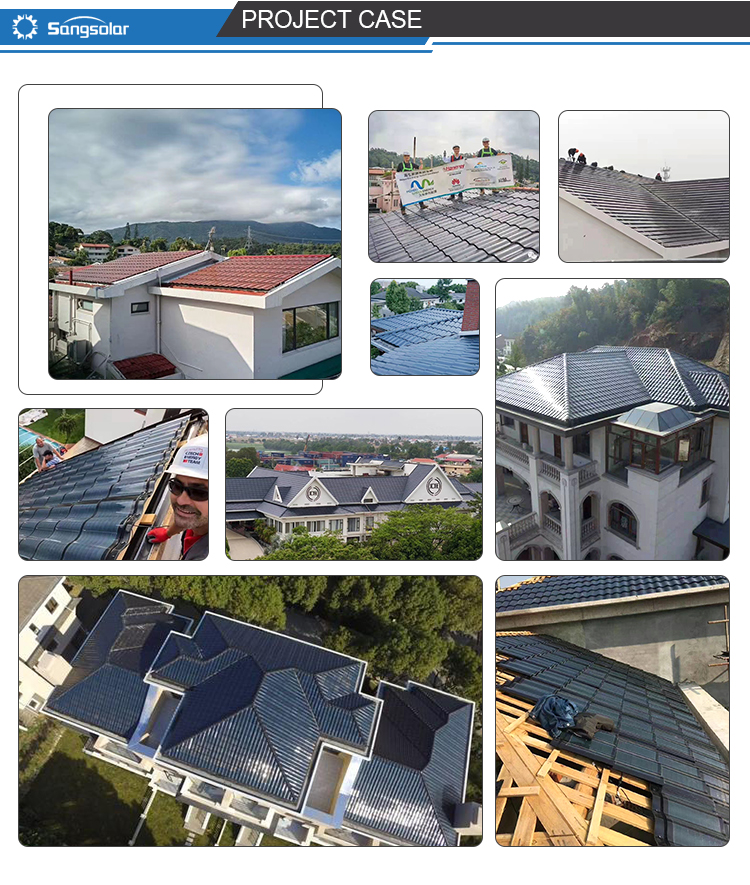

Packaging Detail 1 Packaging Detail 2 Packaging Detail 3 Packaging Detail 4 Packaging Detail 5 Packaging Detail 6 Packaging Detail 7
Frequently Asked Questions (FAQ)
What are the dimensions and weights of the HW-MQSB-V1 and HW-MQSG-V1 solar tile models?
Both models feature a standard size of 721mm in length, 500mm in width, and 8mm in thickness (with a ±1mm variance tolerance). The unit weight is 6.5 kg (±0.5 kg).
What type of solar technology core do these products use, and what is their power output?
These panels use CIGS (Copper Indium Gallium Selenide) thin-film solar technology. Each individual panel piece delivers a power output rating of 25W under standard testing conditions.
Are these solar tiles capable of withstanding extreme weather like hail and heavy loads?
Yes. They are rated Class 4 for anti-hail resistance under ANSI FM 4473 standards and boast a wind/snow loading rate capacity of up to 2400 Pa.
What are the waterproof, fireproof, and temperature specifications?
The panels offer an IP67 waterproof junction box, a Class A fireproofing rating, and can operate reliably within a wide temperature range of -40°C to +85°C.
What electrical cables and connectors are provided with the panels?
Each panel is equipped with a 2.5mm² solar energy cable measuring 450 (+10/-0) mm in length, terminating with industry-standard MC4 connectors.
