| ELECTRICAL CHARACTERISTICS | ||
|---|---|---|
| STC | DT/F2-420W | DT/F1-430W |
| Maximum Power (Pmax) | 420 | 430 |
| Maximum Power Voltage (Vmp) | 41.8 | 42 |
| Maximum Power Current (Imp) | 10.17 | 10.24 |
| Open-circuit Voltage (Voc) | 49.6 | 49.8 |
| Short-circuit Current (Isc) | 10.67 | 10.74 |
| Module Efficiency (%) | 19.2 | 19.4 |
| Operating Temperature | -40°C — 85°C | |
| Maximum System Voltage | 1000V DC (IEC) | |
| Maximum Series Fuse Rating | 20A | |
| Application Class | Class A | |
| Power Tolerance | 0/+5 W | |
|
STC: Irradiance 1000W/m², Cell temperature 25°C, AM=1.5. Tolerances of Pmax, Voc and Isc are within ±5% |
||
| NMOT | DT/F2-420W | DT/F1-430W |
| Maximum Power (Pmax) | 321.4 | 325.1 |
| Maximum Power Voltage (Vmp) | 38.6 | 38.8 |
| Maximum Power Current (Imp) | 8.33 | 8.38 |
| Open-circuit Voltage (Voc) | 46.6 | 46.8 |
| Short-circuit Current (Isc) | 8.64 | 8.69 |
| NMOT: Irradiance 800W/m², Ambient temperature 20°C, AM=1.5, Wind speed 1 m/s | ||

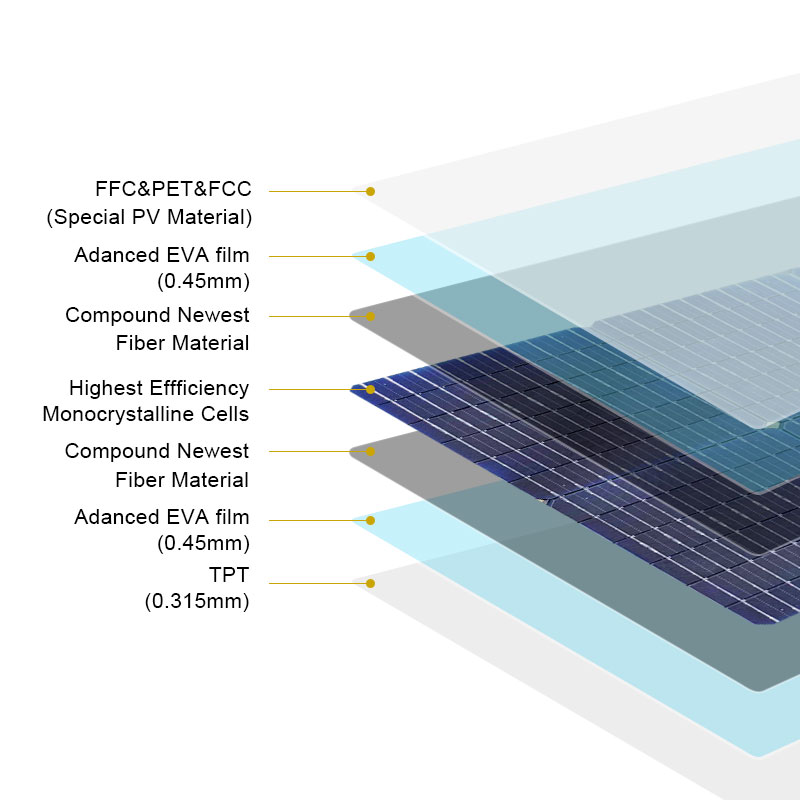

| MECHANICAL CHARACTERISTICS | |
|---|---|
| Solar Cell | Monocrystalline Silicon (182mm half cell) |
| No. of Cells | 144 (12x12) |
| Module Dimensions | 2054x1080x2 mm |
| Weight | 7.2kg |
| Backsheet | White |
| Frame | Frameless |
| J-box | IP 68 Rated |
| Output Cables | Photovoltaic Technology Cable 4.0 mm², (+)450/(-)450 mm |
| Connector | MC4 Compatible |
| PACKAGING CONFIGURATION | ||
|---|---|---|
| Container | 20' GP | 40' HC |
| Module Per Pallet | 66+50 | 66 |
| Pieces Per Container | 580 | 1320 |
