| ELECTRICAL Characteristics (STC) | |||||
|---|---|---|---|---|---|
| Maximum Power - Pmax(W) | 200 | 220 | 230 | 240 | 245 |
| Open Circuit Voltage - Voc(V) | 21.52 | 20.25 | 20.75 | 21.25 | 21.50 |
| Short Circuit Current - Isc(A) | 11.37 | 13.92 | 14.22 | 14.52 | 14.67 |
| Maximum Power Voltage - Vmpp(V) | 18.56 | 17.03 | 17.45 | 17.87 | 18.08 |
| Maximum Power Current - Impp(A) | 10.78 | 12.92 | 13.19 | 13.46 | 13.59 |

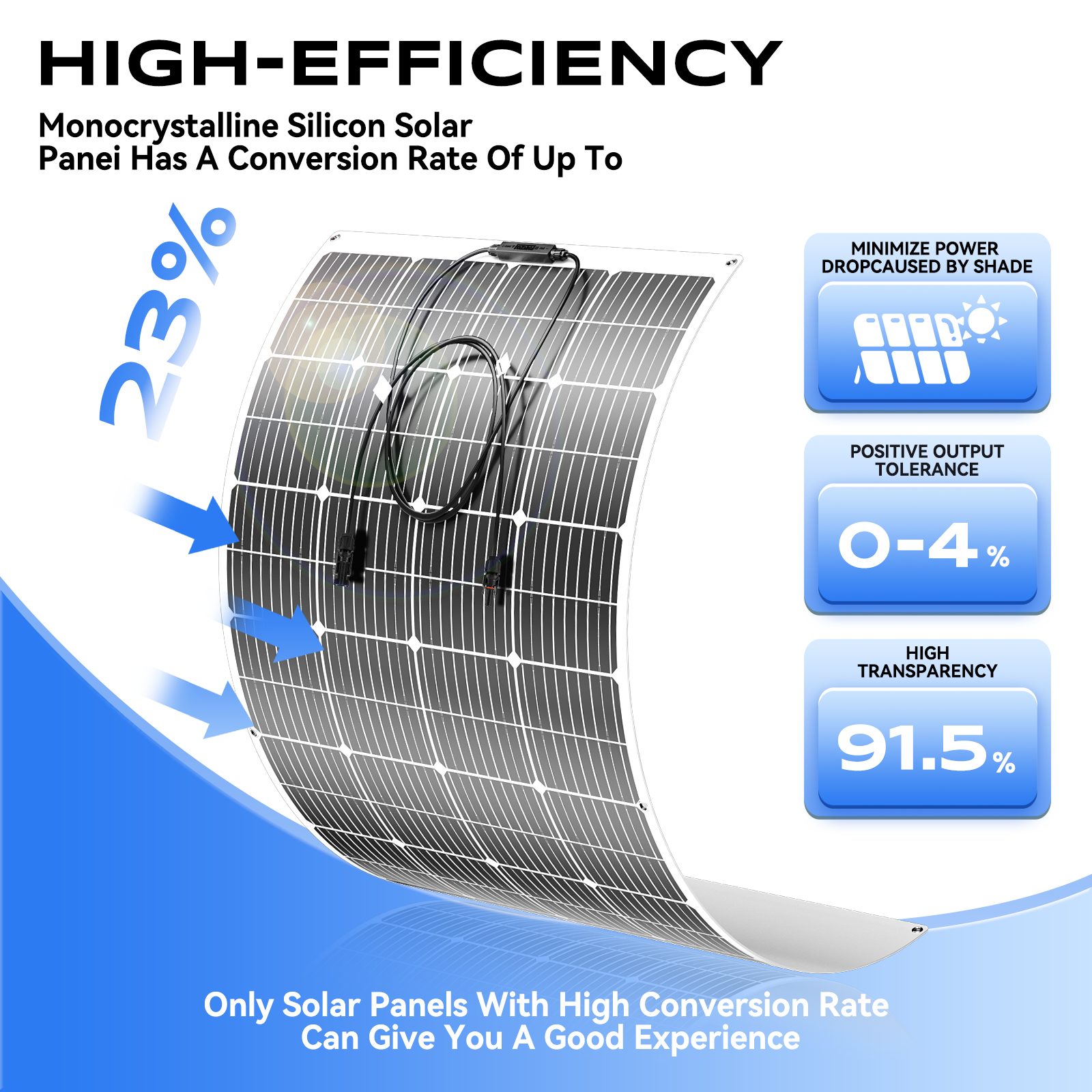

| Module Efficiency (%) | 20.20% | 21.20% | 22.10% | 23.00% | 23.40% |
| Temperature Characteristics | |||||
| Pmax Temperature Coefficient | -0.40% / ℃ | ||||
| Voc Temperature Coefficient | -0.32% / ℃ | ||||
| Isc Temperature Coefficient | +0.05% / ℃ | ||||
| Operating Temperature | -40 to +85 ℃ | ||||
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2 ℃ | ||||
| ELECTRICAL Characteristics (STC) | |||||
|---|---|---|---|---|---|
| Maximum Power - Pmax(W) | 270 | 280 | 290 | 300 | 305 |
| Open Circuit Voltage - Voc(V) | 20.36 | 20.73 | 21.11 | 21.48 | 26.59 |
| Short Circuit Current - Isc(A) | 16.19 | 16.48 | 16.77 | 17.01 | 14.85 |
| Maximum Power Voltage - Vmpp(V) | 17.60 | 17.92 | 18.24 | 18.56 | 22.28 |
| Maximum Power Current - Impp(A) | 15.35 | 15.63 | 15.90 | 16.17 | 13.75 |
| Module Efficiency (%) | 17.30% | 18.00% | 18.60% | 19.30% | 23.20% |
| Temperature Characteristics | |||||
| Pmax Temperature Coefficient | -0.40% / ℃ | ||||
| Voc Temperature Coefficient | -0.32% / ℃ | ||||
| Isc Temperature Coefficient | +0.05% / ℃ | ||||
| Operating Temperature | -40 to +85 ℃ | ||||
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2 ℃ | ||||
