Walkable Solar Panel ETFE 200W Semi Flexible Solar Panel 300W for Car Caravan Trailer Boat

1 / 5

Walkable Solar Panel ETFE 200W Semi Flexible Solar Panel 300W for Car Caravan Trailer Boat

Send Inquiry

Product Description

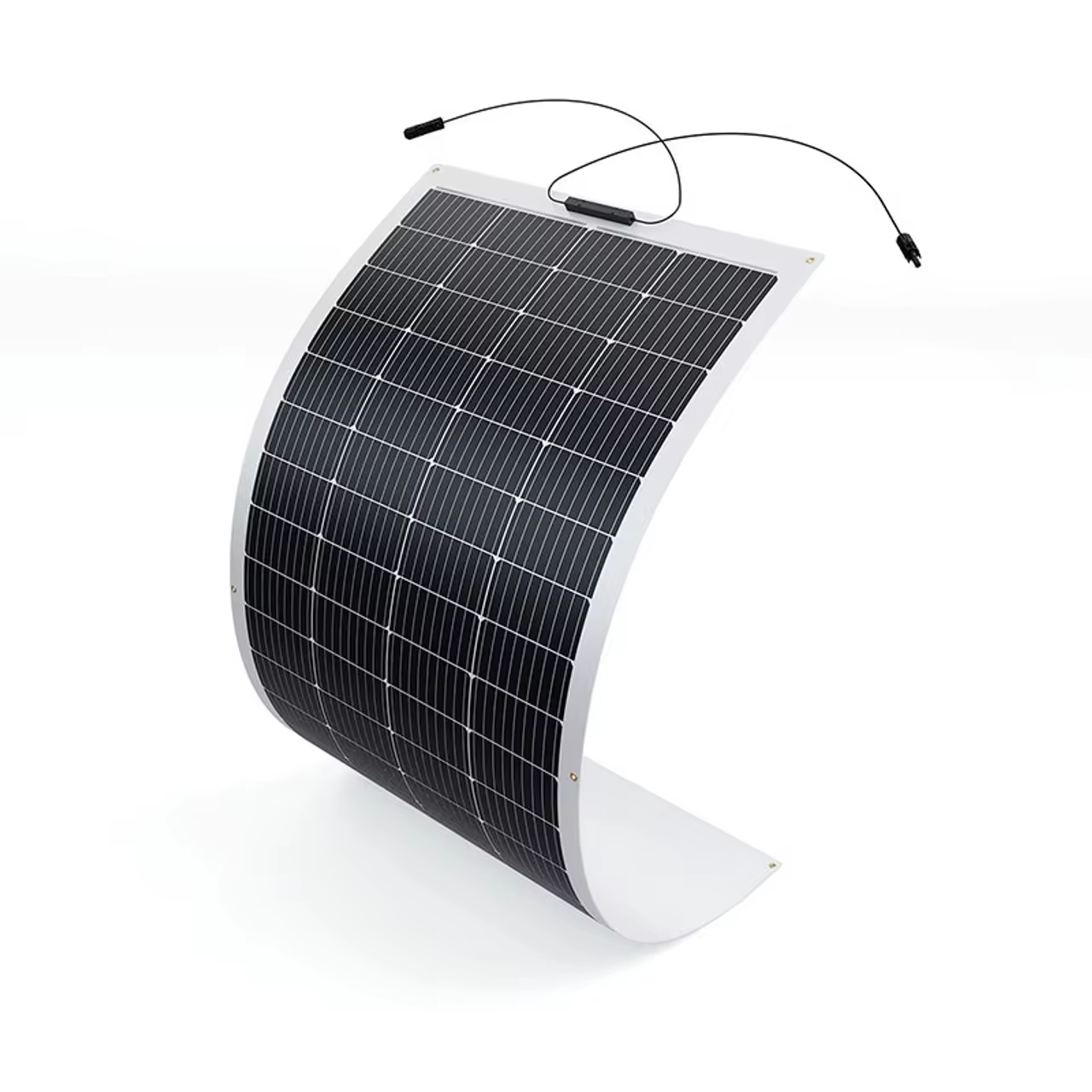

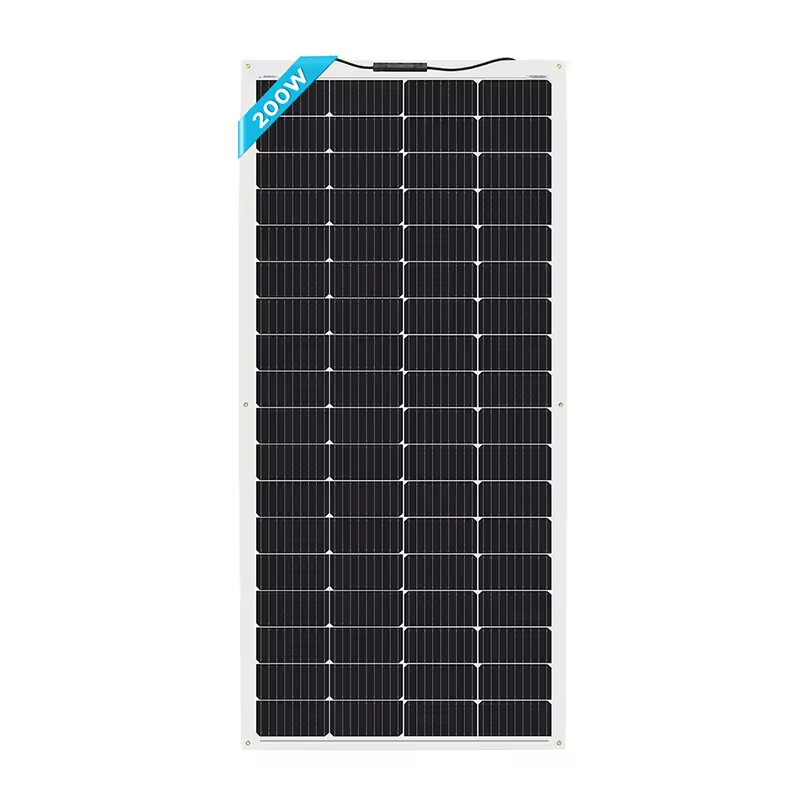

Walkable Solar Panel ETFE 200W Semi Flexible Solar Panel 300W For Car Caravan Trailer Boat

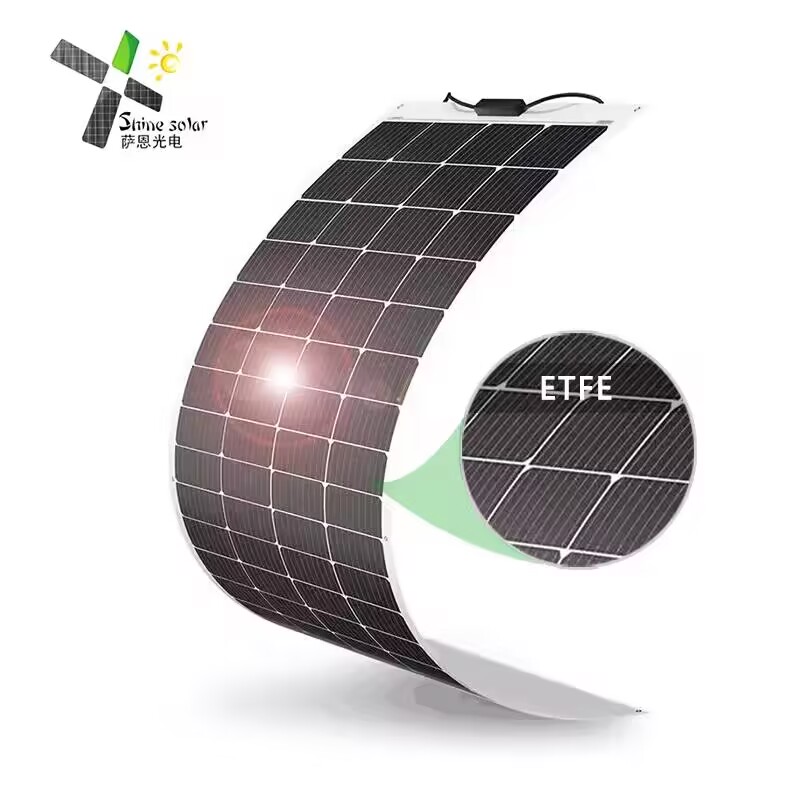

Custom monocrystalline solar cell ETFE 200W flexible solar panel
Model	SN-MH200WN
Maximum Power/Pmax	200W
Operating Voltage/Vmp	20.1V
Operating Current/Imp	10.02A
Open Circuit Voltage/Voc	23.9V
Short Circuit Current/Isc	10.74A
Dimensions	1605X748X3mm
Weight	3.8kgs

■

Product Parameter

Model	SN-MH50W	SN-MH100W	SN-MH120W	SN-MH140W	SN-MH180W	SN-MH200W	SN-MH260W
Maximum Power/Pmax	50W	100W	120W	140W	180W	200W	260W
Operating Voltage/Vmp	18.00V	19.44V	21.60V	25.92V	17.28V	19.44V	20.16V
Operating Current/Imp	2.78A	5.14A	5.56A	5.40A	10.42A	10.29A	12.90A
Open Circuit Voltage/Voc	21.60V	23.33V	25.92V	31.10V	20.74V	23.33V	24.19V
Short Circuit Current/Isc	3.06A	5.65A	6.12A	5.94A	11.46A	11.32A	14.19A
Cell Efficiency	19.50%	22.00%	22.50%	22.00%	22.00%	22.00%	23.00%
Maximum System Voltage	600V	600V	1000V	1000V	1000V	1000V	1200V
Maximum Fuse Rating	18A	18A	18A	18A	18A	18A	18A
No. of Cells	36(4*9)	36(4*9)	10(4*10)	48(4*12)	32(4*8)	36(4*9)	36(4*9)
Cell Dimension	125*62.5 mm	166*83 mm	166*83 mm	166*83 mm	166*166 mm	166*166 mm	182*182 mm
Dimensions	6655303mm	8457103mm	9307103mm	11007103mm	14257103mm	15907103mm	17357753mm
Weight	1.0kg	1.9kg	2.2kg	2.6kg	3.3kg	3.65kg	4.6kg

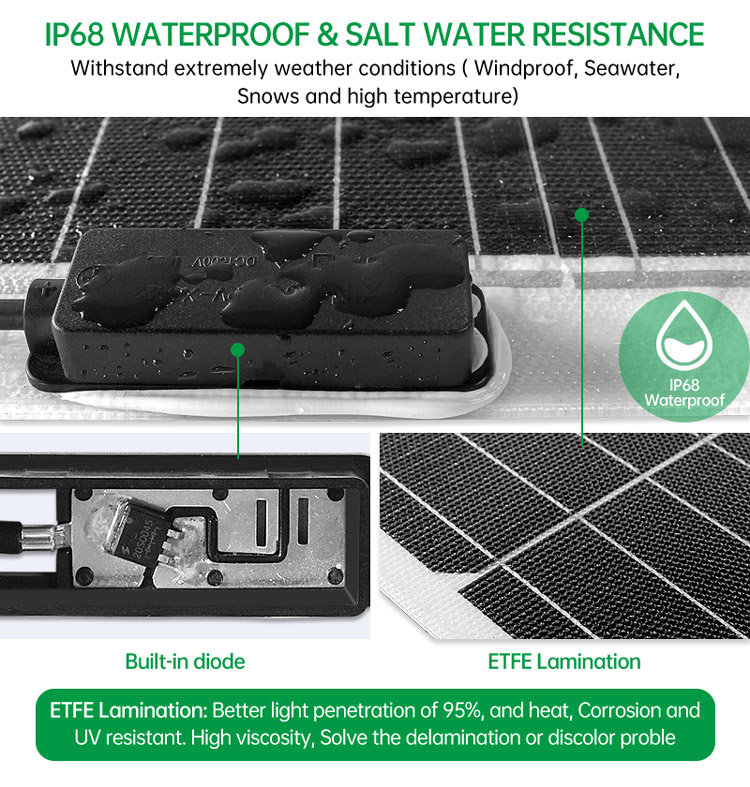

Junction Box	Ip68 Rated
Cables	35cm 2x4.0mm²
Connector	MC Four Compatible
Power Tolerance	0~+5
Cell Type	Monocrystalline
Working Temperature	-40℃ ~ +85℃

■

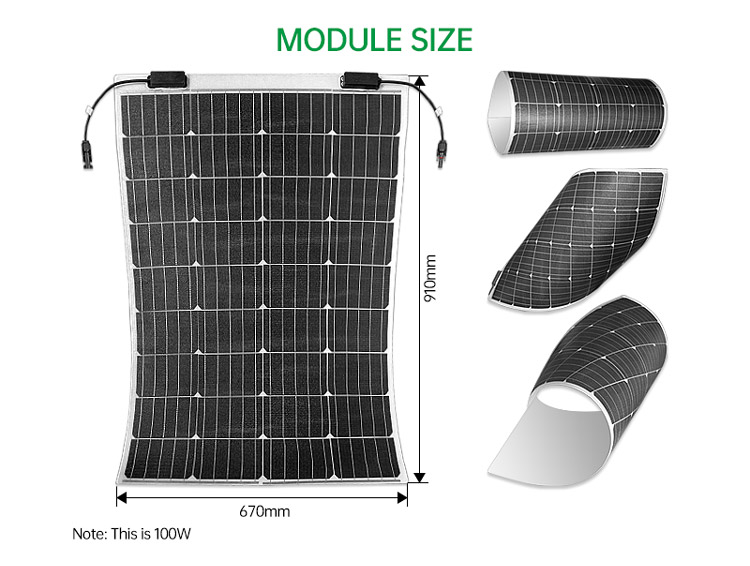

Products Description

■

Application

■

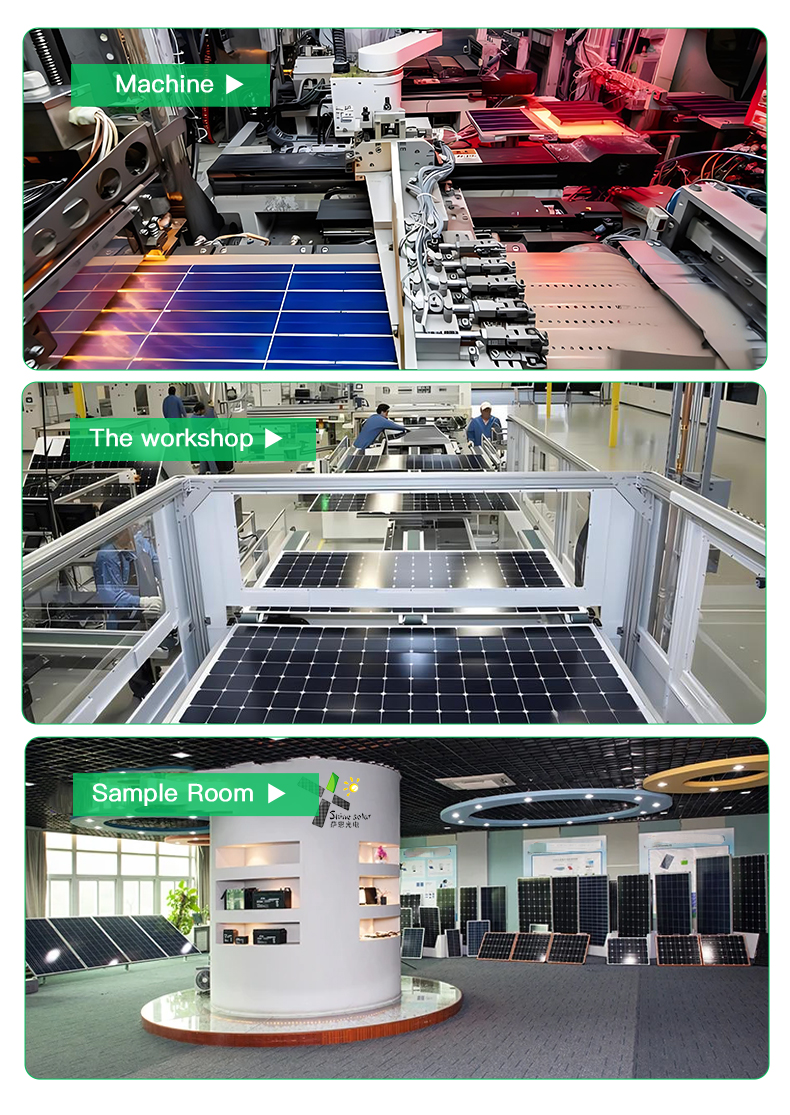

Why Choose Us

■

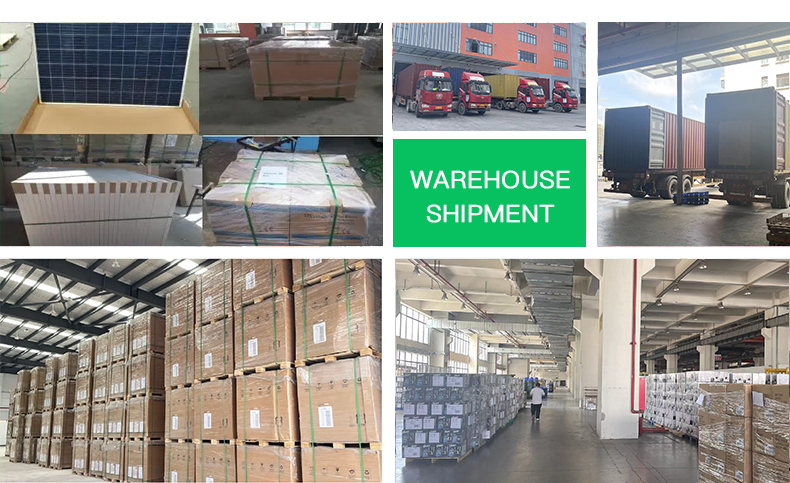

Exhibition&Customer

■

FAQ

Q1 Are you a trader or manufacturer?

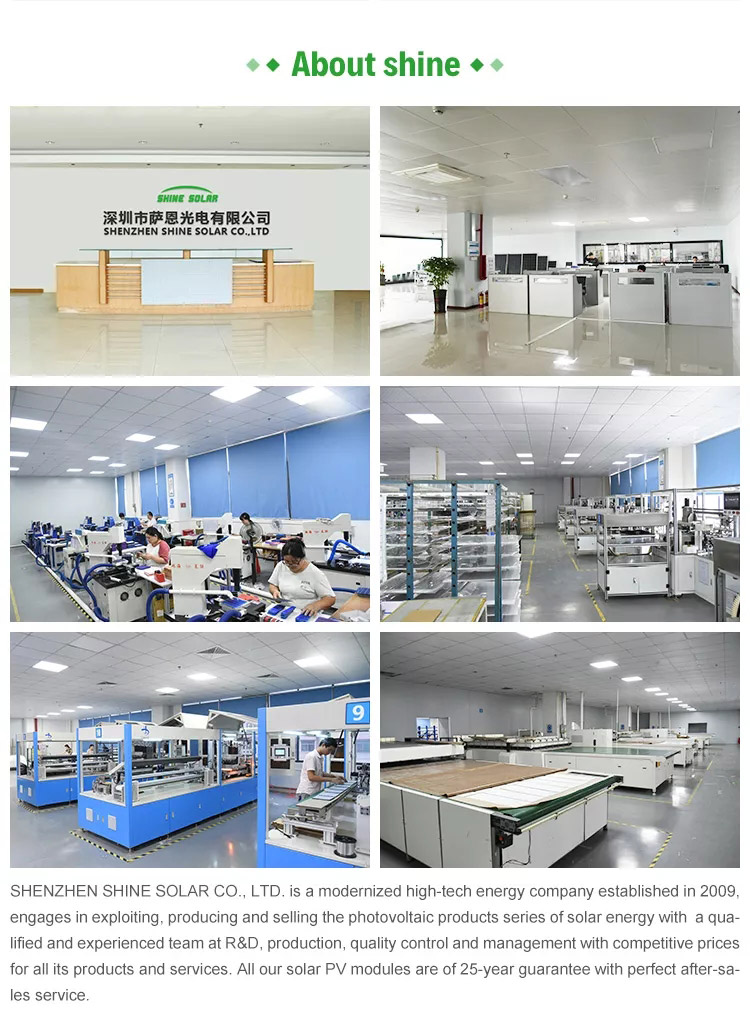

We are a 10-years professional solar panel manufacturer, supplying OEM service.

Q2 What is your main product lines?

Mono/poly solar panel 0~500 watt, high efficiency semi flexible solar panel, CIGS flexible solar panel, folding solar panel and other portable solar products.

Q3 How about your after-sale service?

We have 24 hours after-sale service and professional after sales department to assist you with all your requirements.

Q4 What is your delivery time?

Sample order is usually within 5 days, Bulk order is 15 days.

Q5 What if my quantity plan can't reach your MOQ?

Please reach out to our service team, we can discuss solutions to meet your specific quantity planning.

Q6 What is the feature of walkable solar panels?

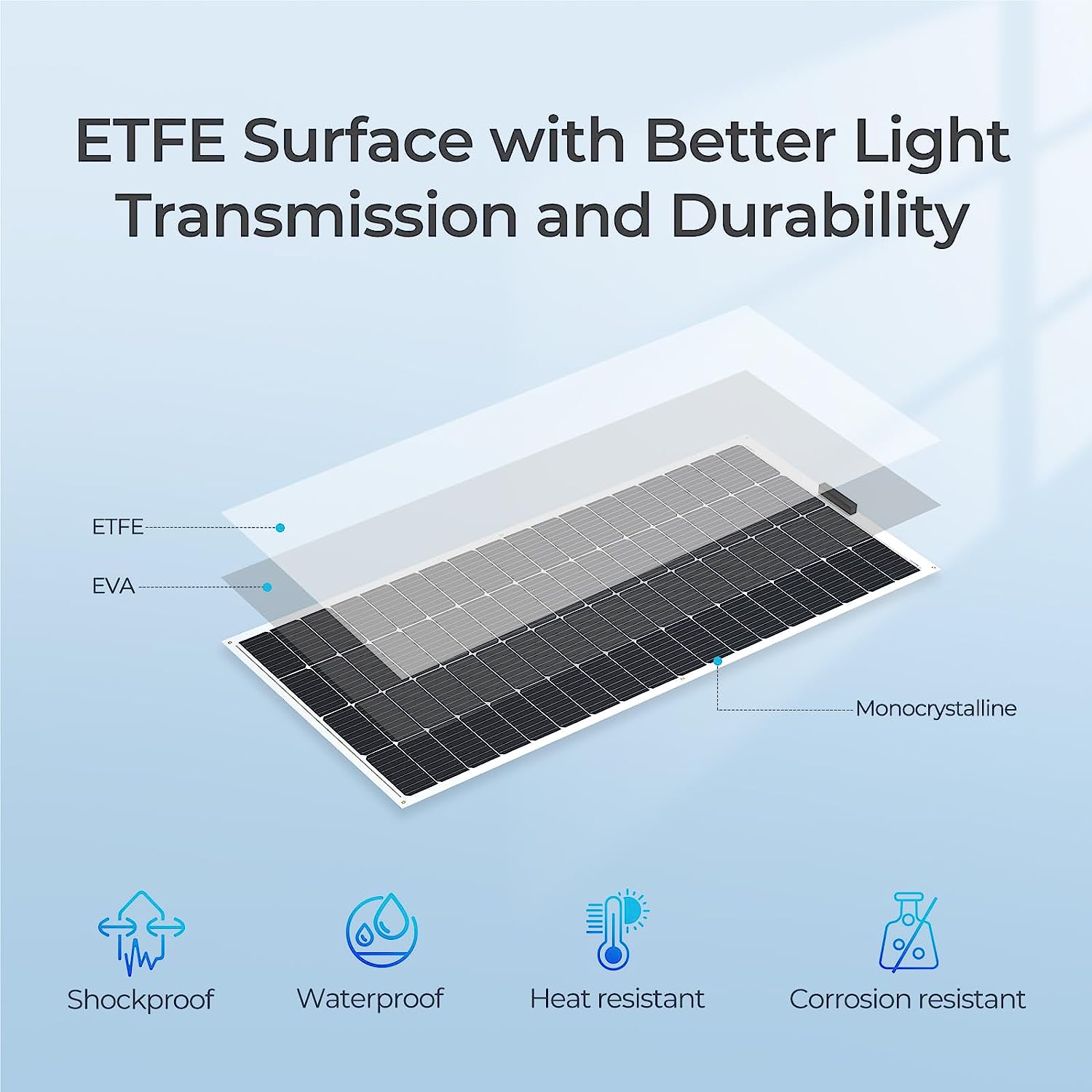

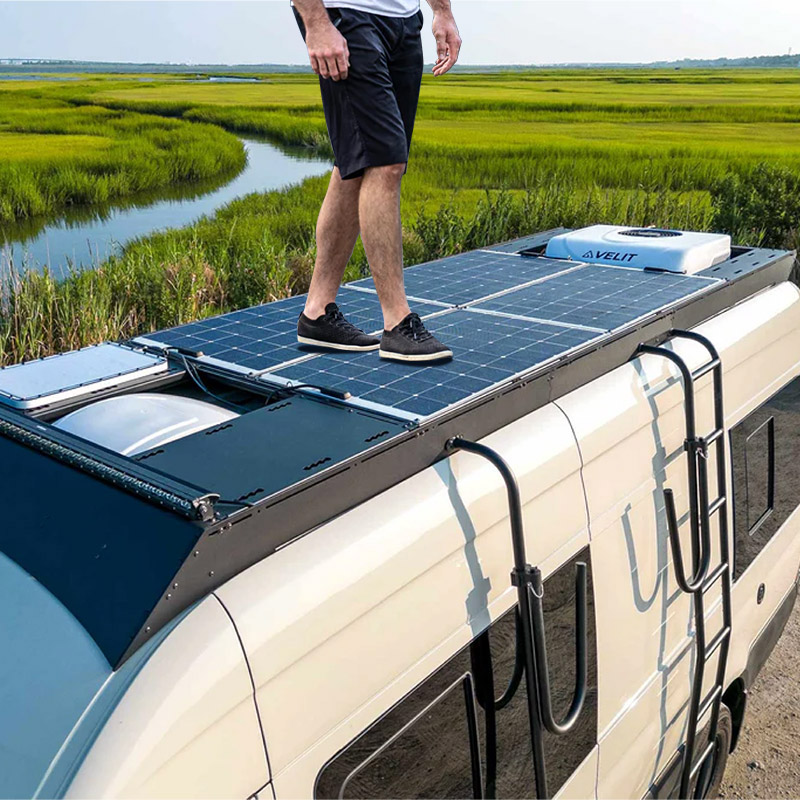

Walkable solar panels are built with highly durable ETFE material, giving them a strong, slip-resistant surface that can withstand light foot traffic, making them ideal for installation on boat decks, RVs, and caravans.

Product Detail

Walkable Solar Panel ETFE 200W Semi Flexible Solar Panel 300W for Car Caravan Trailer Boat
