| Model Type | YS500M-BI | YS600M-BI | YS700M-BI |
|---|---|---|---|
| Rated Maximum Power at STC | 500W | 600W | 700W |
| Maximum Power Voltage (Vmp) | 48.40V | 42.10V | 39.58V |
| Maximum Power Current (Imp) | 10.33A | 14.25A | 17.69A |
| Open Circuit Voltage (Voc) | 58.08V | 49.99V | 46.75V |
| Short Circuit Current (Isc) | 10.54A | 14.97A | 18.92A |
| Module Efficiency | 22.81% | 23.27% | 23.30% |
| Working Conditions | |||
| Glass Thickness | 2mm 4mm 6mm 8mm 10mm 12mm | ||
| Transmittance | 10% 20% 30% 40% 50% 60% 70% 80% | ||
| Operating Temperature | -40°c~+85°c | ||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | ||
| Maximum Series Fuse | 25A | ||
| Power Tolerance | 0~+5W | ||
| Temperature Coefficient of Pmax | -0.35%/°c | ||
| Temperature Coefficient of Voc | -0.29%/°c | ||
| Temperature Coefficient of Isc | +0.048%/°c | ||
|
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 °C, Spectra at AM1.5 NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature 20 °C, Spectra at AM1.5, Wind at 1 m/s |
|||

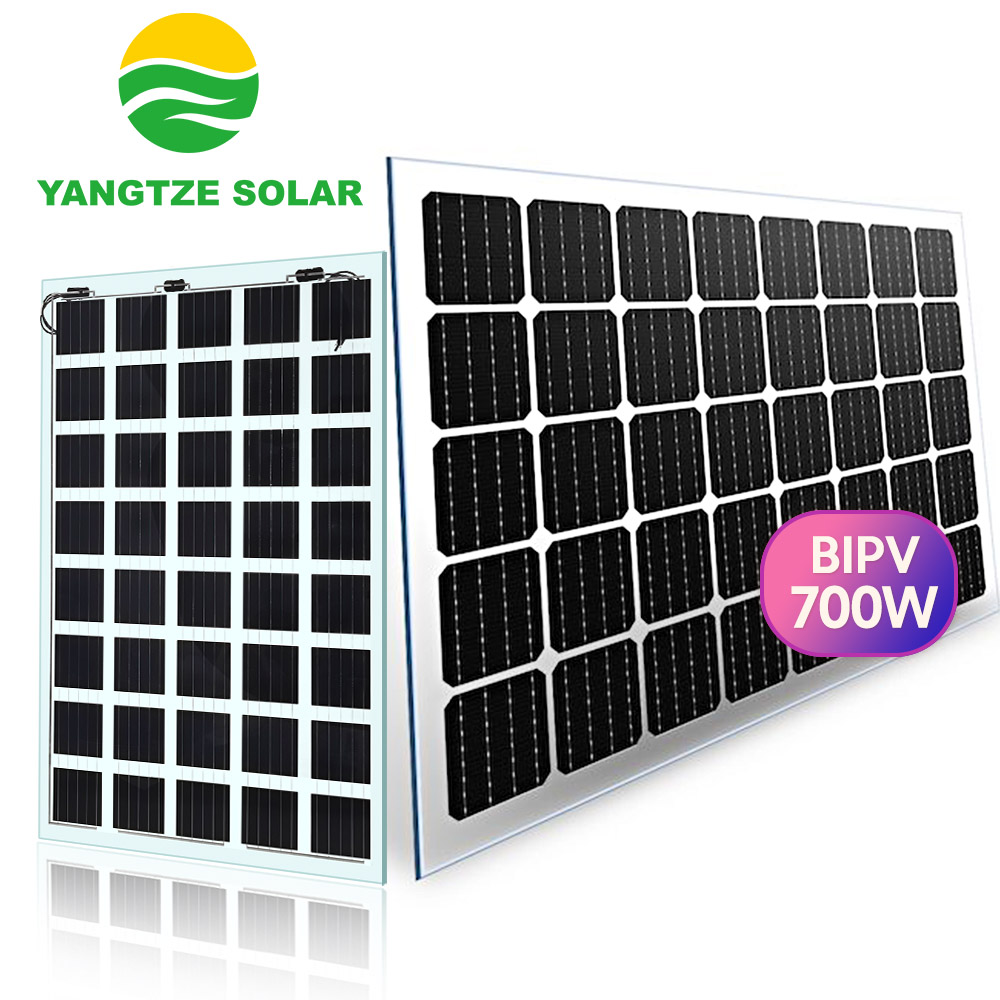

A1: We provide three distinct models depending on your output requirements: YS500M-BI with a rated maximum power of 500W, YS600M-BI with 600W, and YS700M-BI delivering up to 700W.

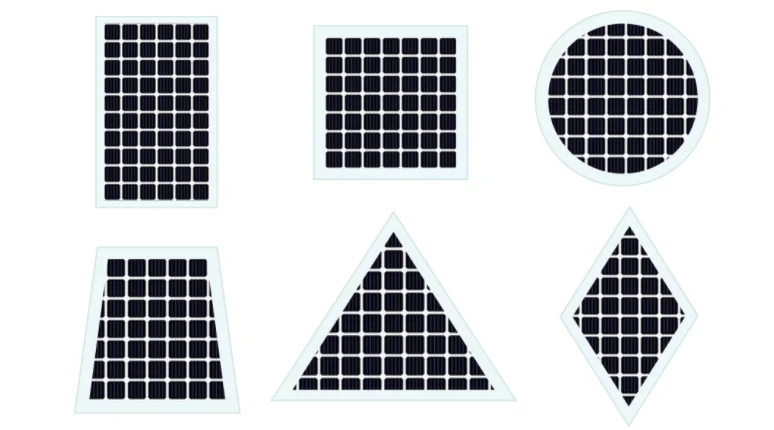

A2: Yes, the panel dimensions and shapes are fully customizable to seamlessly match the architectural design and structural specifications of your building.

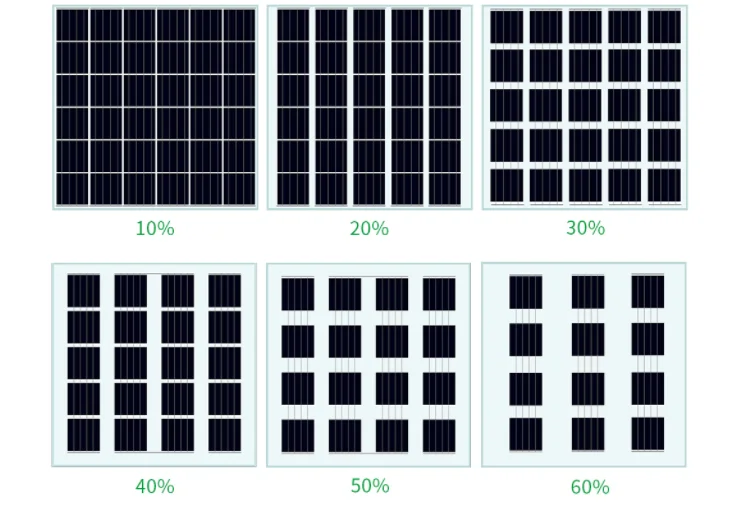

A3: The light transmittance generally ranges between 10% and 80%. A higher transmittance rate allows more natural light into the building, which is ideal for daylighting needs.

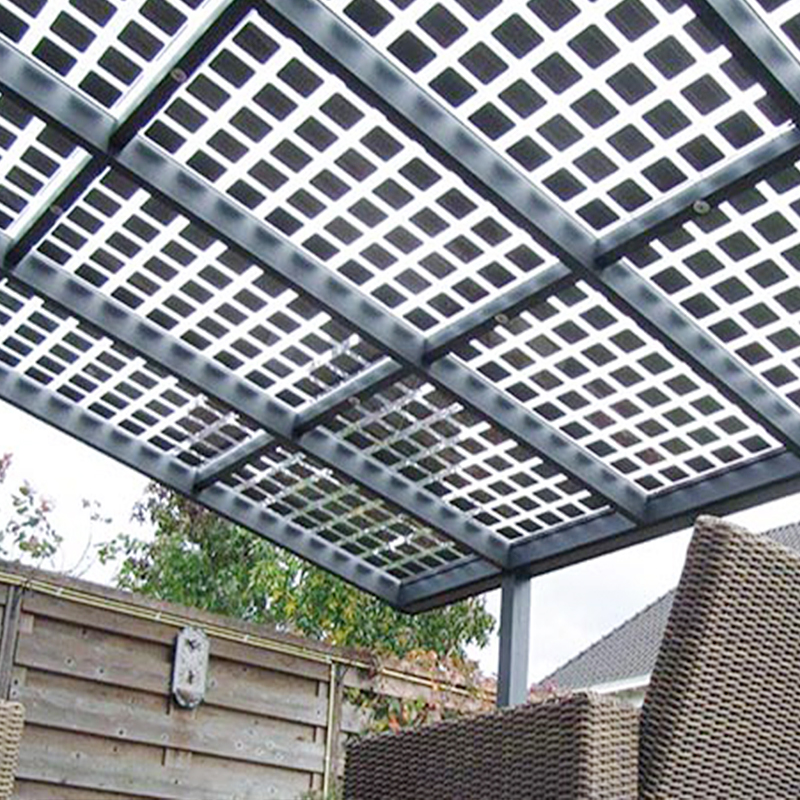

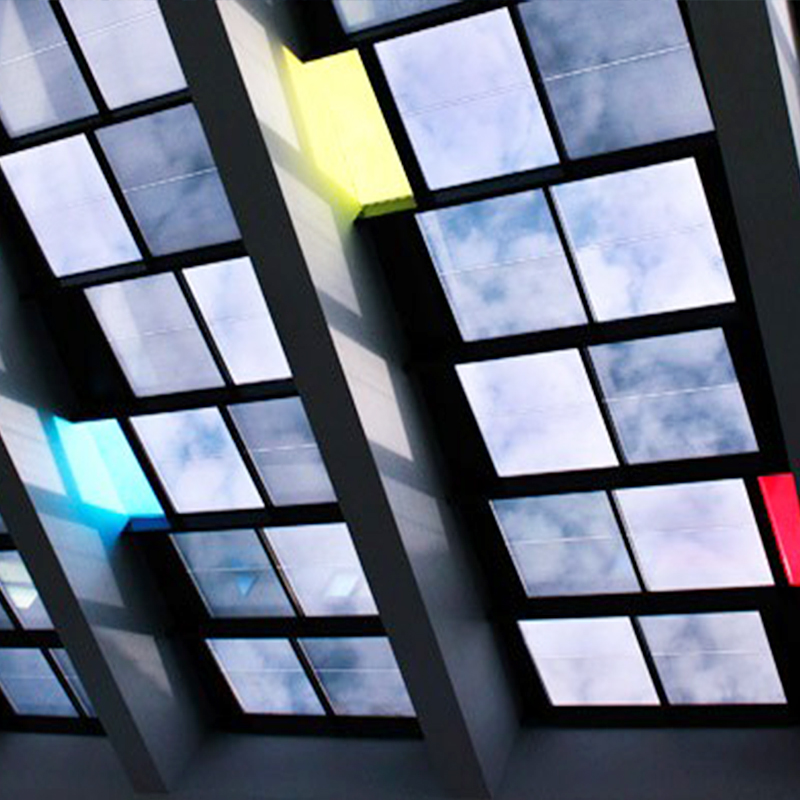

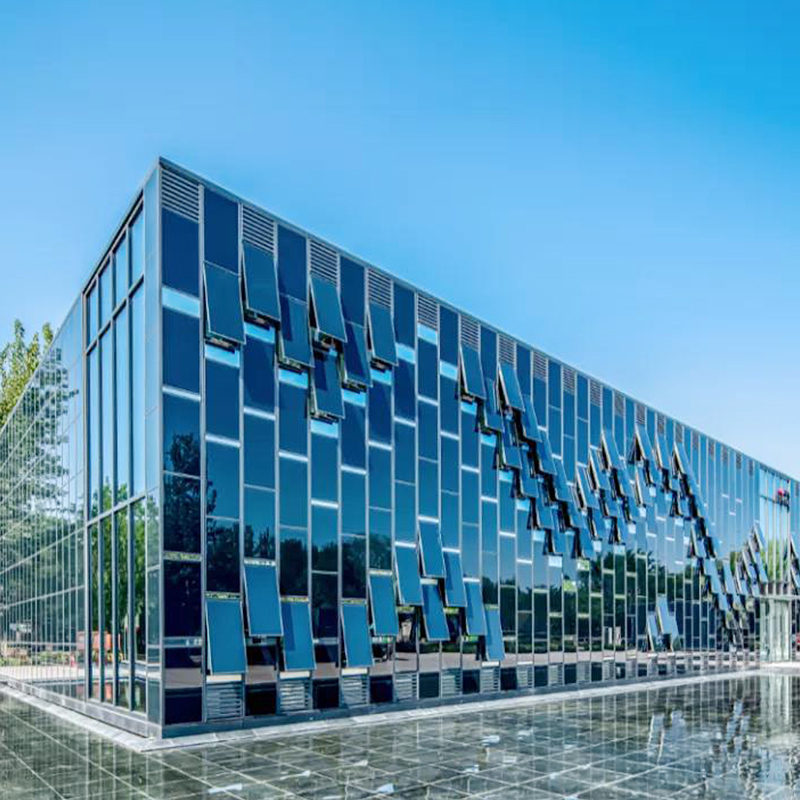

A4: Yes, colored glass options are available. This makes the panels highly suitable for Building-Integrated Photovoltaics (BIPV) where visual aesthetics and specific color combinations are required.
A5: The panels are engineered to perform reliably under extreme conditions, featuring an operating temperature range of -40°C to +85°C and customizable glass thicknesses from 2mm up to 12mm.

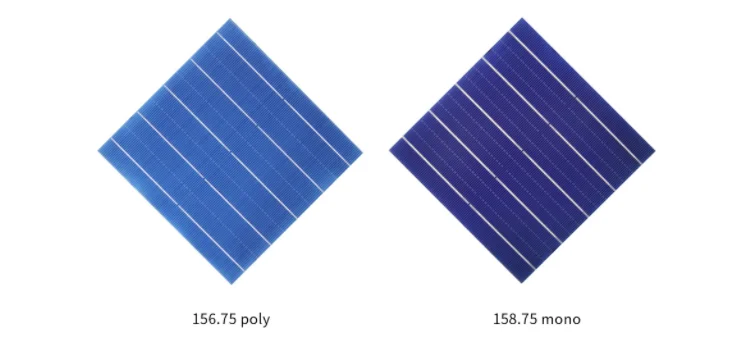

A6: High-efficiency crystalline silicon cells are used. You can select between standard cell sizes including 158.75*158.75mm, 166*166mm, 182*182mm, and 210*210mm to ensure optimized power generation.
